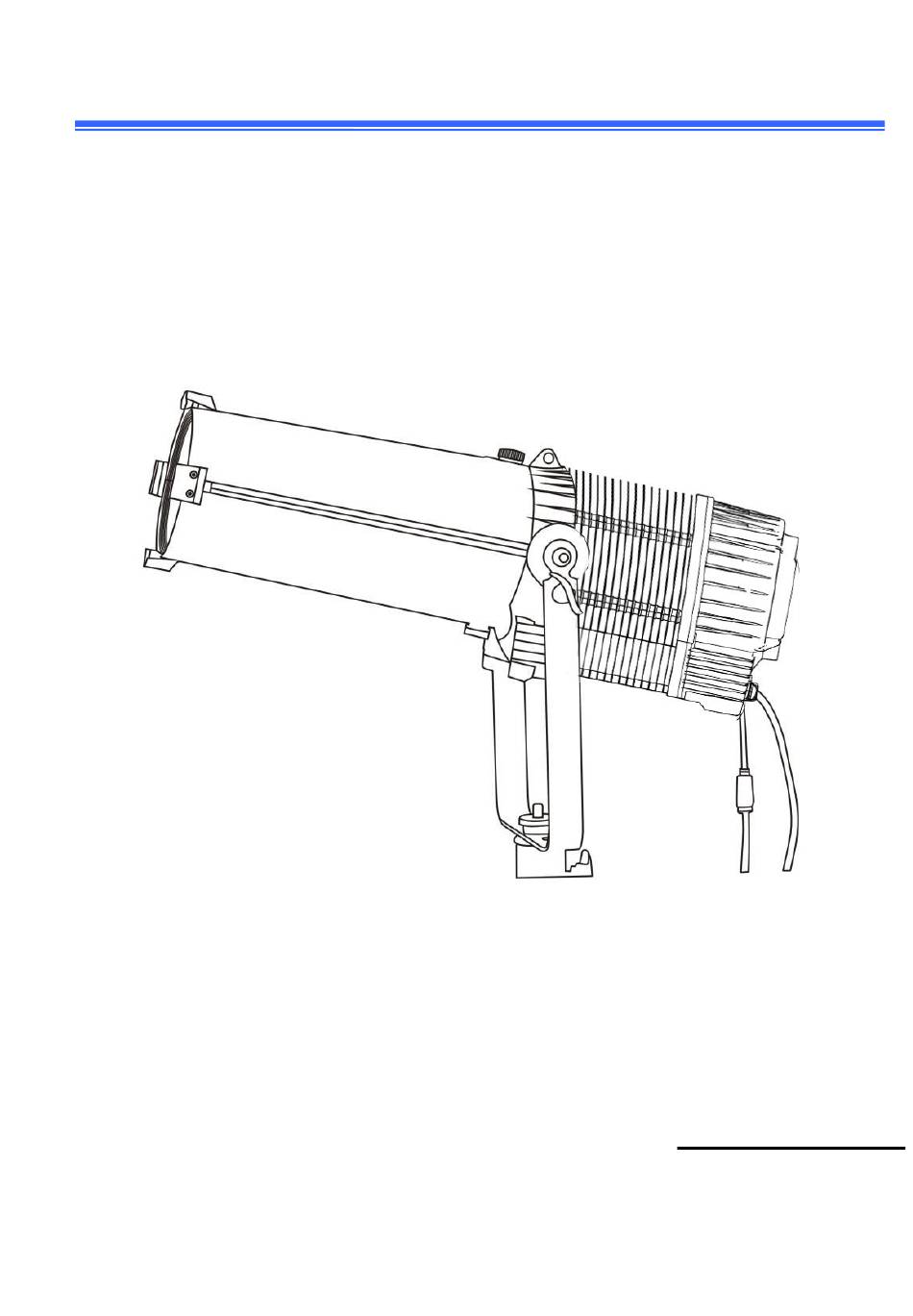

- Page 1 LED Ellipsoidal Light BY-P14 300W Single CW or WW LED IP65 Ellipsoidal Light (With Auto zoom/Auto cutting) User manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Technical Specifications ............3-4 2. Description ................4-5 3. Unpacking .................5-6 4. Main Menu..................7 5. Vice Menu .................7-9 6. DMX Channels.................9-10 7. Size.....................11 8. Fixture Cleaning ................12 9. Warning ..................12 Statement This New IP rated LED fixture - an ellipsoidal comes with IP65 waterproof housing, warm white or cool white with high CRI make it an ideal LED replacement for aging incandescent light. -
Page 3: Technical Specifications
1. Technical Specifications Light Source: LED POWER: 300W LED Color: Single warm white or cool white Color Rendering Index(CRI): Ra≥90 LED Life Time: over 50,000 hours Power supply: Voltage: AC100-240V Max.power: 300W Optics: Beam Angle: 15°-30° Zoom Function: Auto zoom Focus: Auto Shutter controlled by DMX (auto cutting to any shapes) Iris: optional... -
Page 4: Description
resistance Control: Control Protocol: RDM / DMX Control System: DMX, Auto run and Master/Slave DMX Channels: 1/16CH (Two kinds of channel modes optional) Working Environment : Working Temperature: -30~40℃ Cooling system: Fan-less no noise IP Grade: IP65 Package : Production size: 76.76*29.73*27.37CM Net Weight: 16.5kgs Gross Weight: 20kgs Packing size: 86*37*35cm(1pc/carton) -
Page 5: Unpacking
·RDM (Remote Device Management) for added flexibility ·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera ·Selectable dimming curve: Standard mode, Incandescent mode, quick mode and linear mode ·Fanless(no any noise) operation for use in studio and theatre applications 3. -
Page 7: Main Menu
4.Main Menu Operation Status Mode Displ Description DMX Mode Axxx “A”stand for standard channel mode, “xxx”stand for ID Master-slav address, Auto identify controller signals or host signals Dxxx “D”stand for basic channel mode, “xxx”stand for ID address, Auto identify controller signals or master signals Manual S-MC “S”stand for Stand-alone，“MC”stand for “Mixed Colort”... - Page 8 press “UP” and ”down” to edit the DMX address DMX Profile Press key of “OK” 16CH Standard Channel Mode change 1 CH Basic Channel Mode channel mode Single Mode Choice Menu Operation Vice Menu description Mixed Color Press Key of “OK” to Choose the color and strobe setting choose mode Motor Control...
-
Page 9: Dmx Channels
Linear Quick Over Temperature setting 45-95 Each 5 for increase Temperature or decrease Backlight Adjust display 10%~100% Each brightness increase decrease Backlight Screen protect No screen protect Each 5 for increase Timeout setting black screen or decrease from 0~ 60 second Load Factory Reset... - Page 10 192~255 M1,M2 Reverse angle adjustment,(big data, big angle) 0~255 M3,M4 position control M3,M4 position control(refer to channel 4) 0~255 M5,M6, position control M5,M6, position control (refer to channel 4) 0~255 M7,M8 position control M7,M8 position control (refer to channel 4) 0~255 Auto Zoom 0~255...
-
Page 11: Size
7.Size Size of the fixture: 767.6(D)*297.3(W)*273.7(H)mm... -
Page 12: Fixture Cleaning
8. Fixture Cleaning Before disconnecting the lighter or starting maintenance work, ensure that the power supply of the light is turned off to maintain the maximum brightness output of the light, and it can also prolong its service life. It is recommended to use high-quality professional glass cleaner and to clean it with cloth.
