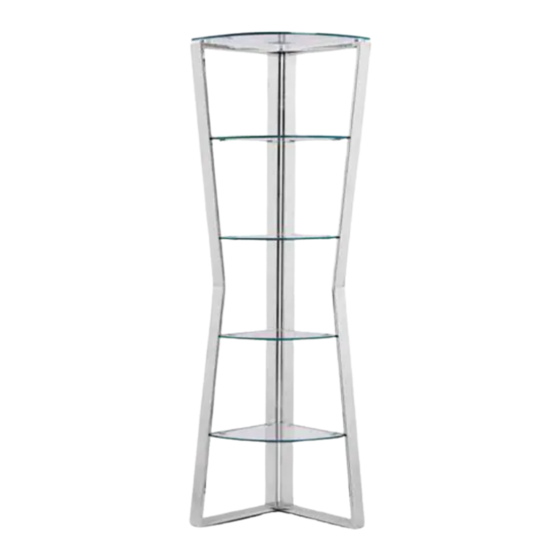

CLARO CRNER SHELF
385759
Assembly instructions
Actual product size
H178 x W46 x D46cm
Need Help ?
With: Assembly instruction
Missing or damaged parts
IMPORTANT - RETAIN FOR FUTURE REFERENCE
CALL: 0333 777 8999
Produced in China for Next Retail Ltd.
385759-2020-V1.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Next 385759
Summary of Contents for Next 385759

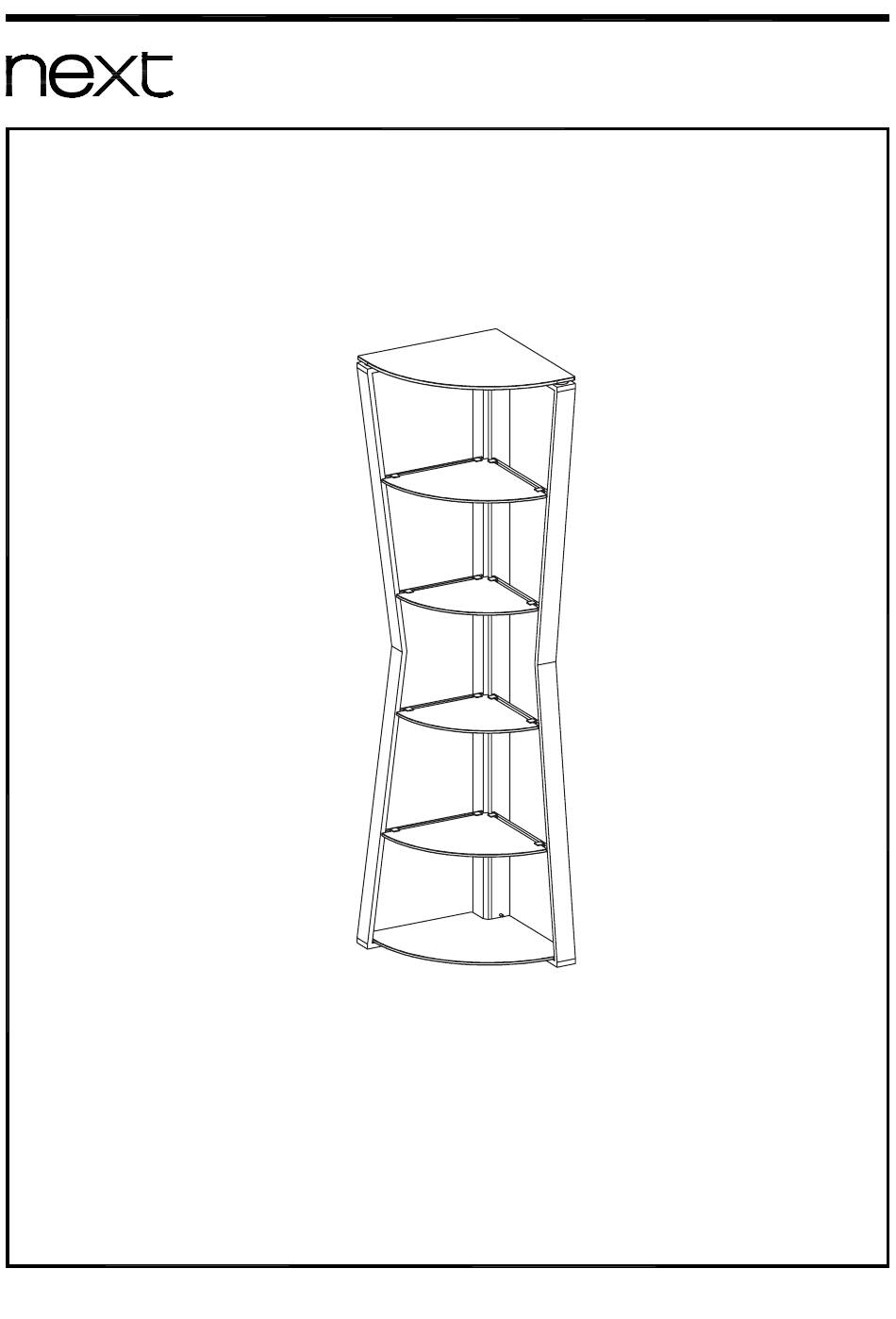

- Page 1 CLARO CRNER SHELF 385759 Assembly instructions Actual product size H178 x W46 x D46cm Need Help ? With: Assembly instruction Missing or damaged parts IMPORTANT - RETAIN FOR FUTURE REFERENCE CALL: 0333 777 8999 Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 2 CLARO CRNER SHELF 385759 Assembly instructions 385759-2020-V1.
-
Page 3: Getting To Know Your Product
CLARO CRNER SHELF 385759 Assembly instructions GETTING TO KNOW YOUR PRODUCT Produced in China for Next Retail Ltd. 385759-2020-V1. - Page 4 Assembly instructions Components supplied. Please use this guide if you require replacement parts. Visual Dimensions 176 x 45.5cm 176 x 39.6cm 46 x 46cm 34.7 x 34.7cm 30 x 30cm 43.5 x 43.5cm Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 5 CLARO CRNER SHELF 385759 Assembly instructions Dimensions Spare Qty Ø8 x 20mm Ø6 x 12mm Ø4 x 8mm 78 x 20 x 2 mm Ø6 x 18mm Ø10 x 2mm Fixtures and fittings supplied ( not to scale) Fixtures and fittings supplied ( not to scale)
- Page 6 CLARO CRNER SHELF 385759 Assembly instructions Ø8 x 20mm Ø8 x 20mm Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 7 CLARO CRNER SHELF 385759 Assembly instructions Ø6 x 12mm 78 x 20 x 2mm Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 8 22 x 21 x 16mm Adjust the plastic screws of each shelf clip (H) with a screwdriver as shown. Carefully slide the shelves (4)(5) into the clips. 22 x 21 x 16mm Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 9 (H) with a screwdriver as shown to secure the shelf in place. 22 x 21 x 16mm 30 mm Stick the clear rubber bumpon (F) on the top surface of bottom rail as shown. Ø10 x 2mm Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 10 (E) by hand at the back of the shelf that prevents the shelf from tipping if weight is applied to the front edge of the shelf. Ø6 x 18mm Ø6 x 12mm 72 x 25 x 14mm Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 11 Wall Wall Move the shelving unit into the place of intended use next to a wall. Adjust the feet to ensure the unit is stable. The wall bracket (I) may also require some adjustment to fit correctly depending on any obstructions behind the shelf such as skirting boards, picture rails etc.
- Page 12 CLARO CRNER SHELF 385759 Assembly instructions Wall Wall Fix the wall brackets (I) to the wall using the washers (not included) and screws (not included). Tighten with the screwdriver. Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 13 Wall fixings are not included please source suitable fixings for your wall type. If in doubt, please consult a qualified tradesperson. WARNING: Always ensure the wall to be drilled is free from hidden electrical wires, water and gas pipes. Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 14 CLARO CRNER SHELF 385759 Actual product size H178 x W46 x D46cm 46cm 46cm WARNING: 35cm Glass shelf Max load is 7.5KGS 35cm 178cm 35cm 35cm 31cm Produced in China for Next Retail Ltd. 385759-2020-V1.
- Page 15 CLARO CRNER SHELF 385759 385759-2020-V1.
