SlideDriver
SlideDriver
User's Guide
1/14/2013
Rev. 1
January 14, 2013 – Rev. 1
3DHISTECH Ltd.
1 (12)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlideDriver and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3DHISTECH SlideDriver

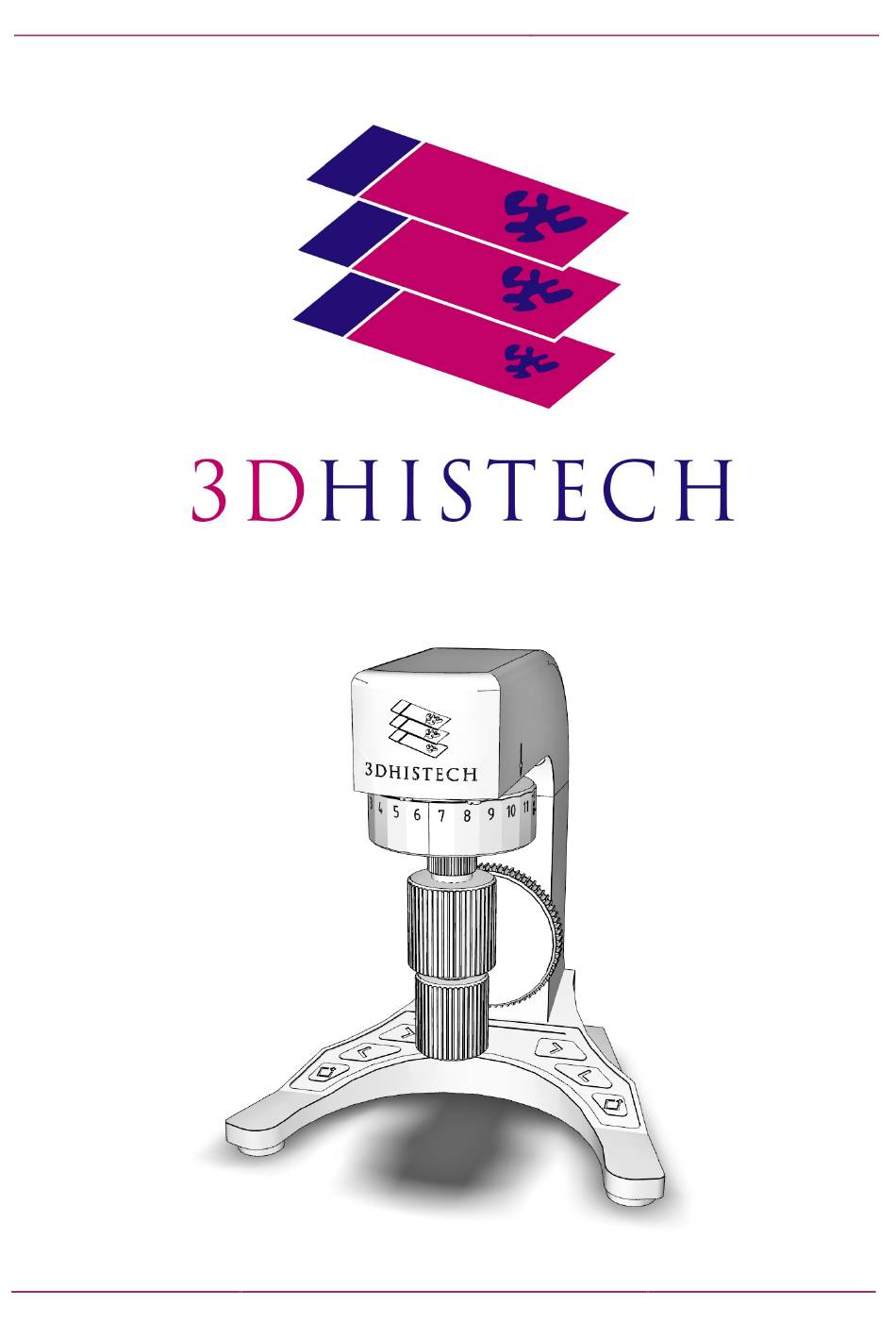

  • Page 1 SlideDriver SlideDriver User’s Guide 1/14/2013 Rev. 1 January 14, 2013 – Rev. 1 3DHISTECH Ltd. 1 (12)
  • Page 2: Table Of Contents

    SlideDriver Contents Disclaimer............................ 3 Character Types and Symbols....................... 5 1 Product description ........................6 1.1 Type label........................... 6 1.2 Operating elements ........................6 1.3 Connections ..........................7 2 Adjustment ..........................8 2.1 Height of the coaxial drive ......................8 2.2 Friction of the coaxial drive ....................... 8 3 Operation ..........................
  • Page 3: Disclaimer

    RF sources), as these may interfere with the proper operation. Third-Party Disclaimer (LibTIFF – TIFF Library and Utilities) 3DHISTECH Ltd. is not liable for damage of whatever nature (including, but not limited to, general or specific damage, indirect damage, consequential damage or incidental damage, including damage re-...
  • Page 4 OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE. Further Information For the latest information on 3DHISTECH products and services, please visit our website at the fol- lowing URL: http://www.3dhistech.com. Company Address: 29-33 Konkoly-Thege Miklos street, Building 6 1121 Budapest –...
  • Page 5: Character Types And Symbols

    SlideDriver Character Types and Symbols Example Abbreviation or term that is explained in section Terms and Abbreviations. Example Words or characters that appear on the screen. These include field names, screen titles, pushbuttons and menu names, paths or options. Keys on the keyboard. For example, function keys (such as F11) or the Ctrl+O key combination.
  • Page 6: Product Description

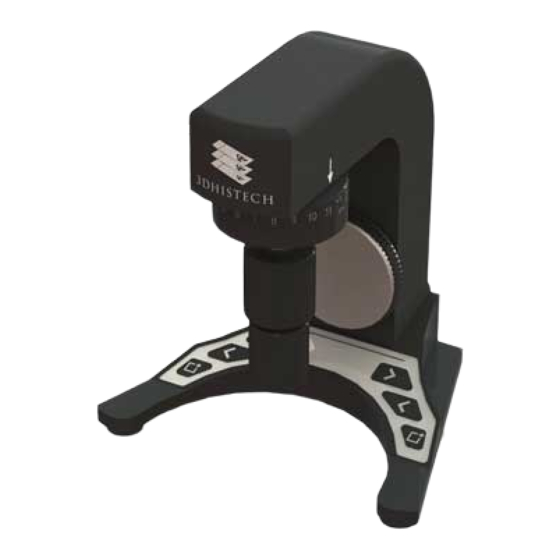

    SlideDriver Product description The SlideDriver is a 3-axis control element, which is suitable both for rapid movement of the stage and sensitive positioning in the sub-µ range. The adjustable coaxial drive allows for ergonomic adjustment of friction and height. The function keys arranged on both sides facilitate operation for left-handed and right-handed operation.
  • Page 7: Connections

    SlideDriver 1.3 Connections 1. USB port January 14, 2013 – Rev. 1 3DHISTECH Ltd. 7 (12)
  • Page 8: Adjustment

    SlideDriver Adjustment 2.1 Height of the coaxial drive The coaxial drive is adjustable in vertical position. To change the vertical position of the X- and Y-knob, slide them along the drive axis into the designated position. 2.2 Friction of the coaxial drive Y-axis: Firmly hold Y-knob (1) and adjust knurled bar (2) clockwise to reduce friction of the Y-knob;...
  • Page 9: Operation

    SlideDriver Operation 3.1 Coaxial drive Y-axis: Turn the Y-knob (1) to move samples in the Y- direction. X-axis: Turn the X-knob (2) to move samples in the X- direction. 3.2 Z-stack wheel The Z-stack wheel (1) serves for fine adjustment of the Z-focus.
  • Page 10: Ratchet Wheel

    The ratchet wheel (1) serves for coarse adjustment of the Z-focus. 12 predefined settings are available. The current alignment can be read off at the SlideDriver from the right and left side, each time below the arrow. Turn the ratchet wheel to the right and/or left side until the desired setting.
  • Page 11: Cleaning

    Warning! Possible damage of the device by liquid entry! Make sure that no liquids can enter the inside of the SlideDriver. Protect the connector on the rear side of the SlideDriver from liquids. Clean the SlideDriver with a lint-free cleaning cloth. In case of increased pollution, slightly moisten the cloth with water or a mild, solvent-free disinfection/cleaning agent.
  • Page 12: Index

    SlideDriver Index Adjustment ..............................8 Annotation Button ........................... 6, 10 Buttons ..............................6, 10 Character types and symbols ......................... 5 Cleaning ............................... 11 Coaxial drive ............................6, 8, 9 Disclaimer ..............................3 Friction of the coaxial drive..........................8 Height of the coaxial drive ..........................8 Maintenance ..............................
