YOKOGAWA JUXTA PF1 User Manual

User's
Model PF1
Pneumatic to Electrical
Manual
Converter
Thank you for purchasing the JUXTA Signal Conditioner.
Please read through this manual before use for correct handling.
CAUTIONARY NOTES FOR SAFE USE OF THE
PRODUCT
This User's Manual should be carefully read before installing and
operating the product. Please keep this User's Manual for future
reference.
The related manuals and general specifications are shown in the
table below.
Doc. Name
PH10 Electrical to Pneumatic Converter (User's Manual)
PH10 Electrical to Pneumatic Converter (General Specifications) GS 77J10P01-01EN
User's manuals in the above table are essential parts of the
product; keep it in a safe place for future reference.
This manual is intended for the following personnel;
• Engineers responsible for installation, wiring, and maintenance
of the equipment.
• Personnel responsible for normal daily operation of the
equipment.
The following symbol is used on the product and in this manual to
ensure safe usage.
WARNING
Calls attention to actions or conditions that could
cause serious or fatal injury to the user, and indicates
precautions that should be taken to prevent such
occurrences.
CAUTION
Calls attention to actions or conditions that could
cause injury to the user or damage to the instrument
or property and indicates precautions that should be
taken to prevent such occurrences.
QR Code
The product has a QR Code pasted for efficient plant
Maintenance work and asset information management.
It enables confirming the specifications of purchased products
and user's manuals.
For more details, please refer to the following URL.
https://www.yokogawa.com/qr-code
* QR Code is a registered trademark of DENSO WAVE
INCORPORATED.
IM 77J10P01-01EN
1st Edition Feb. 2021 (YK)
Doc. Number
IM 77J10P01-01EN
(This manual)
1
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/juxta/
CHECKING PRODUCT SPECIFICATIONS
AND PACKAGE
(1) Checking the Model and Product Specifications
Check that the model and specifications indicated on the
nameplate attached to the main unit are as ordered.
(2) Packaged Items
Check that the package contains the following items:
• PF1: 1 unit
Standard Accessories:
• Tag number label: 1 sheet
• Terminal cover: 2 pieces
• User's manual (IM 77J10P01-01EN, this manual): 1 copy
GENERAL

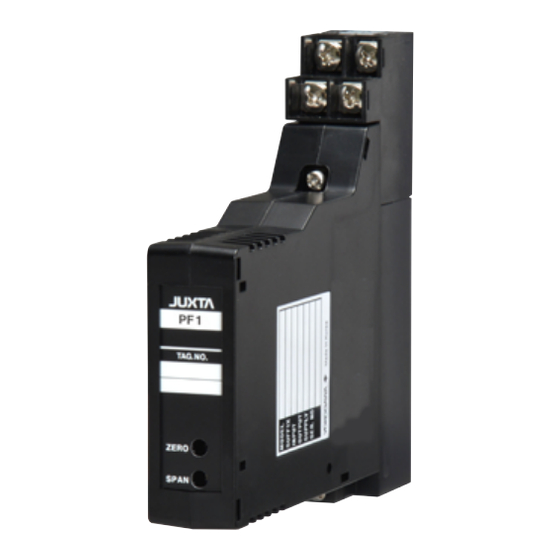

This plug-in type Pneumatic to Electrical Converter inputs 20 to
100 kPa, 0.2 to 1.0 kgf/cm or 3 to 15 psi air pressure signal and
2
converts it into various DC current or voltage signal.
• Compact and high performance by using a semiconductor
pressure sensor.
• No positional error.
• With automatic sealing function.
MODEL AND SUFFIX CODES
Model Suffix codes Description
PF1 -x x -1 *B Pneumatic to Electrical Converter
-1 0.2 to 1.0 kgf/cm
Input
-2 3 to 15 psi
signal
-3 20 to 100 kPa
A 4 to 20 mA DC
B 2 to 10 mA DC
C 1 to 5 mA DC
D 0 to 20 mA DC
E 0 to 16 mA DC
F 0 to 10 mA DC
G 0 to 1 mA DC
Output signal 1 0 to 10 mV DC
2 0 to 100 mV DC
3 0 to 1 V DC
4 0 to 10 V DC
5 0 to 5 V DC
6 1 to 5 V DC
7 −10 to +10 V DC
Z Custom order (DC current/voltage signal)
Power supply -1 24V DC±10%
Style code *B Style B
Facsimile: +81-422-52-6793
2
