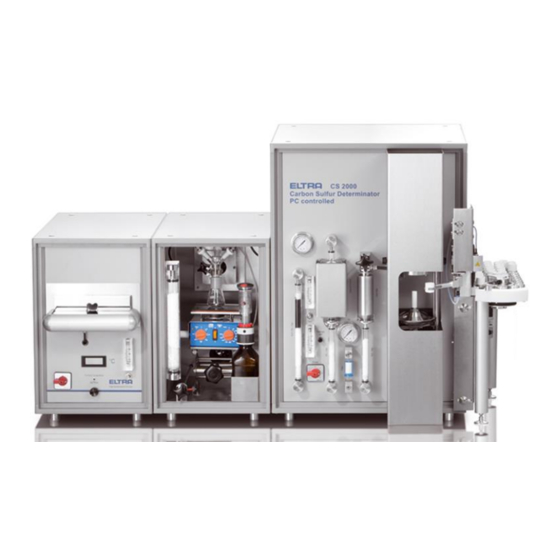

ELTRA CS-2000 Service Manual

Carbon / sulfur determinator
Hide thumbs Also See for CS-2000:
Table of Contents

Advertisement

Quick Links

Service Manual
CS-2000 Carbon / Sulfur Determinator
Translation
© Eltra GmbH, 42781 Haan, Retsch-Allee 1-5, Germany | 08.08.2016 Version 0001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELTRA CS-2000

Summary of Contents for ELTRA CS-2000

  • Page 1 Service Manual CS-2000 Carbon / Sulfur Determinator Translation © Eltra GmbH, 42781 Haan, Retsch-Allee 1-5, Germany | 08.08.2016 Version 0001...
  • Page 2 Copyright © Copyright by Eltra GmbH Retsch-Allee 1-5 D-42781 Haan Germany...

  • Page 3: Table Of Contents

    Table of Contents Notes on service instructions Explanations of the Safety Instructions Discharging the oscillator Faults Check base lines Fluctuating gas flow No combustion 3.3.1 Induction furnace operation 3.3.2 Resistance furnace operation Bad combustion 3.4.1 Induction furnace operation 3.4.2 Resistance furnace operation Furnace does not close Analysis takes too long 3.6.1...
  • Page 4 3.30 Vibrations in induction furnace mode 3.31 Analysis cycle stops too early Chopper motor doesn‘t rotate 3.32 3.33 Sample burns but no peak on the screen 3.34 IR signal does not come down to the base line at the end of analysis Adjustments Gas flow controller-adjustment and jumper settings 4.1.1...
  • Page 5 Spare parts kits 6.4.1 Common spare parts kti for all analysers 6.4.2 Spare Parts kit for CS2000 (including spare parts kits CS800 and HTF540) Maintenance Approved methodologies to which Eltra instruments conform Inorganic materials (Metals) Organic materials (Oil, Coal, foodstuffs) Disposal Index...
  • Page 6 Notes on service instructions...

  • Page 7: Notes On Service Instructions

    1.1 Explanations of the Safety Instructions Pos : 1.3 /0010 ELTR A/0099 Ger äteneutral/Standard Modul e Eltra/9907Standard Modul War nhi nweis e Er klär ung _aktuell_Eltra @ 8\mod_1397552832630_9.doc x @ 60674 @ @ 1 In this Operating Manual we give you the following safety warnings Mortal injury may result from failing to heed these safety warnings.

  • Page 8: Discharging The Oscillator

    Discharging the oscillator Pos : 3 /0015 ELTR A/0099 Ger äteneutral/Standard Modul e Eltra/9918 Standard Modul Entl aden des Oscill ators CS800/2000 @ 11\mod_1440744686940_9.doc x @ 87278 @ @ 1 In order to carry out work on the oscillator of the CS800/2000, it is necessary to ensure that the oscillator has no stored energy.
  • Page 9 Discharging the oscillator Implementation: Disconnect the mains plug. Use a multimeter to check that the device is voltage-free Remove the housing cover on the device and disconnect the GND connector...
  • Page 10 Discharging the oscillator The clamp is attached to the mounting bracket of the oscillator In order to guarantee a safe GND connection between the crocodile clip and the device ground, a multimeter is used to ensures that the transition resistance of the set to the device ground is low (R<1 Ohm).
  • Page 11 Discharging the oscillator Attention! The measuring tip is now held first on the left-hand and then on the right-hand 4.4 KV connector of the transformer for approx. 5s It is necessary to ensure that the tip stays on each contact for the full 5s. Attention! All marked components inside the oscillator are short circuited to ground using the measuring tip.

  • Page 12: Faults

    Pos : 3.1 /0025 Ü bersc hriften/ELTR A 1. Ü berschriften/1 F aults Eltra @ 8\mod_1396880810332_9.doc x @ 60058 @ 1 @ 1 Faults Pos : 3.2 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 C hec k base lines ELTRA @ 6\mod_1368452266990_9.doc x @ 40029 @ 2 @ 1 3.1 Check base lines Pos : 3.3 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/05F aul ts_C S-2000/0505 M odul Chec k bas e lines @ 9\mod_1425539018921_9.doc x @ 74093 @ @ 1...

  • Page 13: Fluctuating Gas Flow

    See also Chapter 3.4 “Analysis takes too long / RF-interference on the IR-cell, or on the electronic units” Pos : 3.4 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Fluc tuati ng gas flow ELTRA @ 6\mod_1368452950593_9.doc x @ 40051 @ 2 @ 1 3.2 Fluctuating gas flow Pos : 3.5 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/05F aul ts_C S-2000/0510 M odul Fluc tuati ng gas flow @ 9\mod_1425539177355_9.doc x @ 74105 @ @ 1...
  • Page 14 Faults In case of a fault however, a control of the flow rate is no longer possible and the gas flow fluctuates. This can be caused, for example, by an excessive obstruction of the gas flow system or by a faulty component that needs to be replaced. See the next pages of this chapter and chapter 3.1 “Gas flow controller adjustment and jumper settings”...
  • Page 15 Faults Check by removing the filter with the dust filter housing. See chapter: “High carbon results are erratic”. Don’t remove the filter from its housing. Turn the filter housing upside down and try to blow air through the smaller whole (about 16mm diameter) of the filter housing.
  • Page 16 Faults Push the tube (1) through the upper glass tube assembly (2), pass it through the tube (3) up to the inside of the dust trap box (4). This should be done when the glass tube has to be removed anyway, for replacing the magnesium perchlorate (anhydrone).
  • Page 17 Faults Blocked fittings: This case is very unlikely to happen in case of induction furnace operation, because the analyzed materials in question are inorganic materials like metals and ceramics, so that they don’t create fumes, volatiles and moisture. Even cement analysis is not as critical as organics analysis.

  • Page 18: No Combustion

    Faults Fig. 5: HF-42 Fig. 6: Jumper position for gas saving mode Fig. 7: Jumper position for continuous flow In this case there is continuous flow when the main power switch is on Position 2. Resistance furnace operation: The flow sensor (same sensor also used in induction operation) The electronic board PC-2 (see chapter “Gas flow controller and jumper settings”).
  • Page 19 Faults No flow If this message permanently remains in the “status window”, check the flow on the lower flow meter (Rotameter). The ball has to be in the range of 180 L/h. If it is in this range, then click on the “device state”...
  • Page 20 Faults Fig. 11: Measurements on TP9 Measurements on TP9 – a signal of about 0.5 V should turn the generator on, – a signal of about 12 V should turn the generator off. If 12 V are measured, despite "Analyzing" appearing on the display, then the microcontroller board is defective or the connection from the HF 42 circuit board, pin 7 is loose.
  • Page 21 Faults frequent problem. Tighten the screws of the plug properly, to ensure a proper connection to the board. Checking the generator tube DANGER Mortal danger from electric shock Exposed power contacts - High Voltage Ensure that the power switch is at position 3. Check if the filament of the generator tube glows: This can be easily checked: Through the air vent holes of the furnace, the reflected light of the glowing filaments (heater of...
  • Page 22 Faults 10 VAC 220 VAC (between contact 2 and 3) Fig. 14: Measurements Check whether the filament is faulty, at the filament connections, only 1 Ohm must be measured. A very high or infinitive resistance means that the filament is burnt through and the tube needs to be replaced.
  • Page 23 Faults Checking the primary voltage on the high voltage transformer DANGER Mortal danger from electric shock Exposed power contacts - High Voltage When checking for induction power, always keep the furnace closed! On the primary side of the high voltage transformer, you should be able to measure about 210 V AC;...
  • Page 24 Faults The rectifier could also be faulty Checking the high frequency generator DANGER Mortal danger from electric shock Exposed power contacts - High Voltage Never try to measure the voltage here! Due to high voltage in the range of 7000 Volts (amplitude), there should be no measurement on the rectifier under power.
  • Page 25 Faults Fig. 17: Draft high frequency generator (1-4-4 + 1-4-5S) As there is high voltage (5000V) and high frequency (19.2MHz) present, a measurement would be very difficult and, above all, very dangerous. Before the generator cover plate is unscrewed, the device should be turned off or, better, the power plug pulled out. DANGER Mortal danger from electric shock Exposed power contacts - High Voltage...
  • Page 26 Faults The filament lead (socket) connected to the chassis, is the upper one of the two which are connected to the multimeter. The grownd connection is done by using a small copper sheet. It is on one side soldered to the socket and on the other end it is fixed on the chassis with a screw. Fig.

  • Page 27: Resistance Furnace Operation

    3.3.2 Resistance furnace operation See Chapter 2.4.2 “IResitance furnace operation”. Pos : 3.8 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Bad combusti on ELTRA @ 6\mod_1368608656440_9.doc x @ 40248 @ 2 @ 1 3.4 Bad combustion Pos : 3.9 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/05F aul ts_C S-2000/0520 M odul Bad combusti on @ 9\mod_1425539443621_9.doc x @ 74129 @ 33 @ 1 3.4.1 Induction furnace operation...

  • Page 28: Resistance Furnace Operation

    Faults – Measure the voltage to the bypass valve V4 (28) 24 Volts DC while the furnace is open is normal. Zero volts when the furnace is closed is normal. – Clean the valves 3.4.2 Resistance furnace operation No combustion: The operating temperature is mostly 1350°C so that it is easy to recognize by looking into the furnace, whether the furnace is hot or not.
  • Page 29 Faults operation manual chapter “Replacing the heating elements”. If you want to be sure that the heating elements are broken, then measure the voltage on the wires to the heating elements. Fig. 21: Measuring the voltage – If the voltage is 230VAC heating elements but the furnace is cold, the heating elements are broken.

  • Page 30: Furnace Does Not Close

    Faults Pos : 3.10 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 T he furnac e does not cl os e ELTR A @ 6\mod_1368610904372_9.doc x @ 40292 @ 2 @ 1 3.5 Furnace does not close Pos : 3.11 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0530 M odul T he inducti on fur nace does not cl ose @ 9\mod_1425539561623_9.doc x @ 74153 @ @ 1 11190 Fig.
  • Page 31 Faults Fig. 23: Pneumatics (photo) If there is little or no compressed air pressure, the furnace cannot close. This pressure is shown on gauge (13), on the front-side of the analyzer. It must be between 4 to 6 bar (60 to 90psi). The screw (2) must be turned counter-clockwise, as much as possible.

  • Page 32: Analysis Takes Too Long

    Faults Pos : 3.12 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Anal ys edauer zu lang - The anal ysis takes too long ELTR A @ 6\mod_1368613082100_9.doc x @ 40314 @ 2 @ 1 3.6 Analysis takes too long Pos : 3.13 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0535 M odul T he anal ysis takes too l ong @ 9\mod_1425539613183_9.doc x @ 74165 @ 3444 @ 1 Fig.

  • Page 33: Rf-Interference On The Ir-Cell, Or On The Electronic Units

    Faults 3.6.1 RF-interference on the IR-cell, or on the electronic units If the generator's high frequency disrupts the electronic units or the infrared cell, then the base line on the PC monitor appears jerky. DANGER Mortal danger from electric shock Exposed power contacts - High Voltage Fig.

  • Page 34: Additional Reasons For Excessive Analysis Duration

    Faults In case of failure of this capacitor, most probably the fuses blow. 3.6.2 Additional reasons for excessive analysis duration – Dirty dust trap, see Operation Manual chapter “Cleaning the dust trap” – Saturated chemicals, see Operation Manual “Filling the reagent tubes” –...

  • Page 35: Development Of Dust When Closing The Furnace

    Faults Pos : 3.14 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 D evelopment of dus t when cl osing the fur nac e ELTR @ 6 \mod_1368620567231_9.doc x @ 40336 @ 2 @ 1 3.7 Development of dust when closing the furnace Pos : 3.15 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0540 M odul D evelopment of dus t when cl osing the fur nac e @ 9\mod_1425539653510_9.doc x @ 74177 @ @ 1...
  • Page 36 Faults High carbon results are erratic: Even if the filter may be brushed and cleaned in ultrasonic cleaner, someday will not be able to be cleaned any more. Filters don’t last forever. Clean the filter and make some analyzes again. Should the results still be erratic, replace it by a new one.

  • Page 37: The Results Are Always 0.0000% Or 00.0Ppm

    Faults Pos : 3.18 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Ergebniss e si nd 0,0% oder 00,0ppm ELTR A @ 6 \mod_1368621911416_9.doc x @ 40380 @ 2 @ 1 3.9 The results are always 0.0000% or 00.0ppm: Pos : 3.19 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0555 M odul T he res ults ar e al ways 0.0000% or 00.0ppm @ 9\mod_1425539815442_9.doc x @ 74213 @ @ 1...

  • Page 38: No Oxygen Flow

    Faults 3.10 No oxygen flow Pos : 3.21 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0560 M odul N o oxygen flow @ 9\mod_1425539875300_9.doc x @ 74225 @ 333 @ 1 3.10.1 Induction furnace operation No oxygen pressure.

  • Page 39: Other Faults

    Pos : 3.24 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Breaker turns off at the begi nni ng of c ombusti on ELTR A @ 6 \mod_1368688648887_9.doc x @ 40470 @ 2 @ 1 3.12 Breaker turns off at the beginning of combustion...
  • Page 40 Faults DANGER Mortal danger from electric shock Exposed power contacts - High Voltage Make sure all capacitors are discharged Fig. 28: Transformer – Disconnect the cables (1) from the primary side of the transformer (2) and connect the cables (1) to a 220 V light bulb (3) which is inserted to a socket. An ordinary desk lamp can serve for this purpose.
  • Page 41 Faults When "Analyzing" appears on the status window, the light bulb should glow; this does not happen suddenly, but gradually (soft start). Within a few seconds, the light bulb will gradually change from dark to fully bright. – If not, but the lamp becomes immediately bright like switching on with a switch, replace the board HF-42.
  • Page 42 Faults Fig. 29: Draft 11001-9002 (1-15-3-1S) – Check that all the screws and soldering connections have a good contact. – If the resistor 200 K (11) is a short circuit, then the fuse will blow when starting the generator. – Check that all power conductors and copper bands are placed far enough away from any objects!

  • Page 43: Breaker Turns Off At The End Of The Analysis

    Fig. 30: Capacitor and insulator Pos : 3.26 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Breaker turns off at the end of the anal ysis ELTR A @ 6\mod_1368692228547_9.doc x @ 40492 @ 2 @ 1 3.13 Breaker turns off at the end of the analysis Pos : 3.27 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0575 M odul Breaker turns off at the end of anal ysis @ 9\mod_1425540062314_9.doc x @ 74261 @ @ 1...

  • Page 44: Dustcloud When Opening The Furnace

    Faults 3.14 Dustcloud when opening the furnace Pos : 3.29 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0580 M odul D ustcl oud when openi ng the furnace @ 9\mod_1425540118802_9.doc x @ 74273 @ @ 1 Fig.

  • Page 45: No Or Low Oxygen Pressure

    – Clean the valves. Pos : 3.30 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 N o or low oxyg en pr ess ure ELTRA @ 6\mod_1368695090291_9.doc x @ 41086 @ 2 @ 1 3.15 No or low oxygen pressure Pos : 3.31 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0585 M odul N o or low oxyg en pr ess ure @ 9\mod_1425540163981_9.doc x @ 74285 @ 33344 @ 1 Possible faults: Fig.
  • Page 46 Faults After starting an analysis”, the following message appears: "no oxygen pressure". If this message permanently remains in the “status window”, then check – Is the power switch (1) set on position 3? – The pressure on the oxygen gauge (2) may be too low. 1.5bar is normal (22psi).

  • Page 47: Waiting For Stability Message

    The furnace does not close: see chapter “The induction furnace does not close”. Pos : 3.32 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Waiting for s tability mess age @ 9\mod_1421835931277_9.doc x @ 72389 @ 2 @ 1 3.16 Waiting for stability message Pos : 3.33 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0590 M odul Waiting for s tability @ 9\mod_1425540207023_9.doc x @ 74297 @ @ 1...

  • Page 48: Combustion Tube Breaks Frequently

    (but with uninterrupted power). Pos : 3.34 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 C ombusti on tube breaks freq uentl y @ 6\mod_1368628553320_9.doc x @ 40424 @ 2 @ 1 3.17 Combustion tube breaks frequently Pos : 3.35 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0605 M odul C ombusti on tube ser vic e life too s hor t @ 9\mod_1425540856869_9.doc x @ 74333 @ @ 1...

  • Page 49: Oxygen Pressure Falls When The Furnace Opens

    Faults Pos : 3.36 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Oxygen pres sur e falls when the fur nac e opens ELTRA @ 6\mod_1368705931127_9.doc x @ 41187 @ 2 @ 1 3.18 Oxygen pressure falls when the furnace opens Pos : 3.37 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0606 M odul Oxygen pres sur e falls when the i nducti on furnac e opens @ 9 \mod_1426585710647_9.doc x @ 75806 @ @ 1 Fig.

  • Page 50: Combustion Without Starting Analysis

    If the voltage on the valve ( V2 ) is correct, then the valve itself is defective, see chapter “Cleaning the solenoid valves”. Pos : 3.38 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 C ombusti on without starting anal ysis ELTR A @ 6 \mod_1368706920531_9.doc x @ 41209 @ 2 @ 1 3.19 Combustion without starting analysis Pos : 3.39 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0610 M odul C ombusti on without starting anal ysis @ 9\mod_1425540917709_9.doc x @ 74345 @ @ 1...
  • Page 51 Faults Fig. 38: Microcontroller board TP9 NOTICE When software starts the generator, the voltage on the multimeter should change from 12VDC to 0.5VDC. The generator is again OFF when this voltage goes again to 12VDC. The drivers of the microcontroller board are out of order, when the combustion starts without pressing F5 or clicking START and when without "Analyzing"...

  • Page 52: Crucible Or Boat Cracks Or Melts

    Fig. 40: Circuit board HF 42 Pos : 3.40 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Cr ucibl e or boat cr ac ks or melts ELTRA @ 6 \mod_1368708007091_9.doc x @ 41231 @ 2 @ 1 3.20 Crucible or boat cracks or melts Pos : 3.41 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0615 M odul Cr ucibl e cr ac ks or melts @ 9\mod_1425540955461_9.doc x @ 74357 @ 33 @ 1...
  • Page 53 Either the plastic tube supplying oxygen to the analyzer is squashed, or the oxygen regulator is not properly open. Fig. 41: Oxygen gauge Fig. 42: Oxygen regulator Pos : 3.44 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Pump voltage too high @ 9\mod_1425548769110_9.doc x @ 74988 @ 2 @ 1...

  • Page 54: Pump Voltage Too High

    Make sure that the chemicals are not saturated and that the combustion tube is not blocked. Usually, these faults caused by contamination occur due to frequent analyzing of samples that produce a lot of dust, and after a prolonged use of the combustion tube Fig. 43: Front of CS-2000...
  • Page 55 Faults Carrier gas inlet Pressure regulator Pressure regulator...
  • Page 56 Faults Bypass valve V4 Oxygen valve V5 Flow regulating valve V6 Purge valve V3 ---- Exhaust valve V9 Valve V10 Solenoid valve V11 Solenoid valve V12 Solenoid valve V13 Gas outlet Lance valve V2 Pressure switch Oxygen pressure gauge 1,5 bar Restrictor Restrictor Carrier gas flow meter...
  • Page 57 Faults CAUTION Switch off the mains power when handling inside the analyzer. If a tube fitting is blocked, then the tube may be blocked as well. Therefore the tube needs to be cleaned or replaced, otherwise the contamination could reach the IR-cell as well.

  • Page 58: Resistance Furnace Takes Too Long To Warm Up

    Fig. 45: Resistance furnace Pos : 3.46 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 R esistance furnace takes too long to war m up @ 9\mod_1425549194106_9.doc x @ 75000 @ 2 @ 1 3.23 Resistance furnace takes too long to warm up Pos : 3.47 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0630 M odul R esistance furnace takes too long to war m up @ 9\mod_1425541083085_9.doc x @ 74393 @ @ 1...

  • Page 59: Negative Drift After Start

    A fault on the board TH-44 is also in question. Pos : 3.48 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 N egati ve drift after start @ 9 \mod_1425549543984_9.doc x @ 75022 @ 2 @ 1 3.24 Negative drift after start Pos : 3.49 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0635 M odule Neg ati ve drift after s tart @ 9\mod_1425541130275_9.doc x @ 74405 @ @ 1...

  • Page 60: Resistance Furnace Completly Cold Or Too Hot

    Faults Pos : 3.50 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 R esistance furnace c ompl etl y c ol d or too hot @ 9\mod_1425625509164_9.doc x @ 75116 @ 2 @ 1 3.25 Resistance furnace completly cold or too hot Pos : 3.51 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0640 M odule Resistanc e fur nac e completel y col d or too hot @ 9\mod_1425541165983_9.doc x @ 74417 @ @ 1...

  • Page 61: Fumes In The Resistance Furnace

    Faults 3.26 Fumes in the resistance furnace Pos : 3.53 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0645 M odul F umes in the resis tanc e furnac e @ 9\mod_1425541226464_9.doc x @ 74429 @ @ 1 CAUTION! Never turn on the oxygen flow, when fumes come out of the furnace, or else EXPLOSION!

  • Page 62: Resistance Furnace Doesn`t Reach Full Temperature

    Pos : 3.54 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 R esistance furnace doesn` t reac h full temper ature @ 9\mod_1425626188856_9.doc x @ 75140 @ 2 @ 1 3.27 Resistance furnace doesn`t reach full temperature Pos : 3.55 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0650 M odul R esistance furnace does n`t reac h full temper ature @ 9\mod_1425541312124_9.doc x @ 74441 @ @ 1...

  • Page 63: Dust Or Soot From The Resistance Furnace

    Faults Pos : 3.58 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 D ust or s oot from the r esistance fur nace @ 9\mod_1425626621251_9.doc x @ 75164 @ 2 @ 1 3.29 Dust or soot from the resistance furnace Pos : 3.59 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0660 M odul D ust or s oot from the r esistance furnace @ 9\mod_1425541504144_9.doc x @ 74477 @ @ 1...

  • Page 64: Vibrations In Induction Furnace Mode

    Faults Pos : 3.60 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Vibr ations i n i nduc tion furnac e mode @ 9\mod_1425626754537_9.doc x @ 75176 @ 2 @ 1 3.30 Vibrations in induction furnace mode Pos : 3.61 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0665 M odul Vibr ations in i nduc tion furnac e mode @ 9\mod_1425541546467_9.doc x @ 74489 @ @ 1 If the Analyzer vibrates when the mains power switch is turned to position 3, the reason is dust accumulation on the blades of the oscillator’s blower.

  • Page 65: Chopper Motor Doesn't Rotate

    The IR cell is faulty. See chapter “Check base lines“. Pos : 3.64 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 C hopper motor does n‘t r otate ELTR A @ 6\mod_1368709089073_9.doc x @ 41319 @ 2 @ 1 3.32 Chopper motor doesn‘t rotate Pos : 3.65 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/05Faults _C S-2000/0675 M odul T he c hopper motor does n`t rotate @ 9\mod_1425541638117_0.doc x @ 74513 @ @ 1...

  • Page 66: Ir Signal Does Not Come Down To The Base Line At The End Of Analysis

    V4. See chapter “Cleaning Solenoid valves”. Pos : 3.68 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 IR signal does not c ome down to the base line at the end of anal ysis @ 7\mod_1381404509510_9.doc x @ 49850 @ 2 @ 1 3.34 IR signal does not come down to the base line at the end of analysis...
  • Page 67 Faults Copper oxide has a bad quality: Fig. 52: Programm screenshot (graph example 2) Memory effects of the copper oxide can cause tailing of the low carbon range in the level of 10 to 50 mV. However the tailing level does not grow due to faulty copper oxide. Possible solution: Replace the copper oxide Path window is not sealed or it is broken...
  • Page 68 Faults Flow stops during analysis Fig. 53: Programm screenshot (graph example 3) In such case all base lines remain high, keeping their level which they had at the moment the flow stops. Therefore the voltages of the horizontal continuation of the base lines can be high, depending on the voltage level of each peak at the moment the flow stopped.
  • Page 69 Faults Fig. 54: Programm screenshot (graph example 4) In this case, the flow blockage was not permanent. This can happen for example when the plunger of the valve V2 may shake due to contamination, enabling occasionally more or less or no flow at all, during one combustion.

  • Page 70: Adjustments

    Adjustments Pos : 5.1 /0025 Ü bersc hriften/ELTR A 1. Ü berschriften/1 Adj ustments eltr a @ 8 \mod_1396882697255_9.doc x @ 60262 @ 1 @ 1 Adjustments Pos : 5.2 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Gas fl ow c ontroll er adj ustment and j umper s etti ngs ELTR A @ 6\mod_1368776355883_9.doc x @ 41371 @ 2 @ 1 4.1 Gas flow controller-adjustment and jumper settings Pos : 5.3 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/10Adj ustments _CS- 2000/1005 Modul Gas flow contr oller adj ustments and j umper s ettings @ 9\mod_1425542321719_9.doc x @ 74562 @ 344 @ 1 4.1.1 Flow controller for induction furnace operation...
  • Page 71 Adjustments Jumper settings: Fig. 56: Jumper settings The connector J2 is for selecting different options for the induction generator control. By default, one jumper is set in the factory at the position “current control” connecting the pins B1-B2 and a second jumper is set to connect B3-B4 for “On board power adjustment”.
  • Page 72 Adjustments Fig. 57: Gas flow regulation The flow controller mainly consists of the following components:...

  • Page 73: Flow Controller For Resistance Furnace Operation

    Adjustments – The flow sensor (1) – The flow regulating valve (V6) – The flow control board HF 42 The flow sensor measures the gas flow rate, and converts its flow rate into an electrical signal (DC voltage). The HF 42 board compares this flow value with the flow value set by P1. The signal resulting from the comparator controls a pulse width modulator.
  • Page 74 Adjustments Fig. 58: Gas flow regulation Caution: This board is installed in the analyzer upside down. The above schematic shows the components side of the board, which is the lower side of the board in the analyzer. Test points explanations: TP1–TP2: AC voltage across the pump coil TP3: GND for measuring DC voltages on P4, P5, P6.

  • Page 75: Infrared Base Line Adjustments

    Fig. 59: New flow sensor Fig. 60: Old flow sensor Pos : 5.4 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Infrar ed bas e line adj ustments ELTRA @ 6\mod_1369121936836_9.doc x @ 41542 @ 2 @ 1 4.2 Infrared base line adjustments Pos : 5.5 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/10Adj ustments _CS- 2000/1010 Modul Infrar ed bas eline @ 9\mod_1425542384792_9.doc x @ 74574 @ 334434 @ 1...
  • Page 76 Adjustments The outputs of the IR cells (IR base lines) are factory set at 8V when the paths are new and clean. The peaks come down starting from 8V coming down to a minimum voltage (at the peak maximum) and they go back to the 8V baseline after completion of combustion. The 8V IR-base line is obtained through preamplifier adjustment only.
  • Page 77 Adjustments Fig. 61: IRC 1.3...

  • Page 78: General Test Points

    Adjustments 4.2.2 General test points Supply voltages and thermostatic control circuit TP 1: TP 7: IR source voltage TP 12: + 5V supply TP 13: Heating transistors control voltage TP 26: IR temperature actual value TP 27: +24V supply TP 28: IR temperature set point Supply voltages for IR signal processing circuit TP 6:...

  • Page 79: Test Points Ir-Ranges

    Adjustments 4.2.3 Test points IR-ranges Fig. 63: Test points IR-ranges Supply voltages for IR signal processing circuit TP 15: +5V reference TP 20: Analog GND Outputs (base lines about 8VDC. For golden paths adjust 6VDC) TP 22: Output section [1] TP 25: Output section [2] TP 24:...

  • Page 80: Base Line Adjustments

    Adjustments TP 23: Output section [4] 4.2.4 Base line adjustments. See also chapter “Check base lines”. When the IR module (rack) is removed from the analyzer, it can be powered on the desk by a 24VDC power supply connected to J1 of the IRC board. The power supply should normally be capable to supply a current of 5A.

  • Page 81: Voltage Of A Base Line Is Too High (Higher Than 9.5V)

    Adjustments Outputs (base lines about 8VDC) TP 22: Output section [1] TP 25: Output section [2] TP 24: Output section [3] TP 23: Output section [4] TP 20: Analog GND NOTICE Use a very thin screwdriver. With a big screwdriver, the trimmer can be mechanically destroyed before you feel it.
  • Page 82 Adjustments Adjust the outputs of other cells (not golden paths) to have between 7 to 8V by adjusting the gains of their preamplifiers. Set the jumper of the JP1 from position 2 (Test °C) to Position 3 (Analysis). Install the IR module into the analyzer. Allow sufficient time for the base lines to stabilize.

  • Page 83: Ir Source Voltage Setting

    Adjustments Pos : 5.6 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 IR s ource voltage setti ng Eltr a @ 8\mod_1396940082361_9.doc x @ 60276 @ 2 @ 1 4.3 IR source voltage setting Pos : 5.7 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/10Adj ustments _CS- 2000/1015 Modul IR-s ourc e voltage s etting @ 9\mod_1425542423232_9.doc x @ 74586 @ @ 1 Fig.

  • Page 84: Infrared Cell Temperature Regulation

    Adjustments Pos : 5.8 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Infrar ed cell temper ature regul ati on ELTRA @ 6\mod_1369641998919_9.doc x @ 42289 @ 2 @ 1 4.4 Infrared cell temperature regulation Pos : 5.9 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/10Adj ustments _CS- 2000/1020 Modul IR ther mos tatic c ontrol @ 9\mod_1425542463669_9.doc x @ 74598 @ @ 1 IR cell temperature control Fig.
  • Page 85 Adjustments order to have the temperature adjustable in the above range, a jumper has to be set on position 5-Hi Temp. of JP1. The temperature is set by turning the pot and measuring the set value on The actual value of the temperature is measured on TP26. Caution: After changing the temperature set point, it takes some time until the actual temperature value is stabilized at the new set level.

  • Page 86: Pneumatics

    Adjustments Pos : 5.10 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Pneumatic s ELTR A @ 6\mod_1369229118822_9.doc x @ 41844 @ 2 @ 1 4.5 Pneumatics Pos : 5.11 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/10Adjustments_C S-2000/1025 Modul Pneumatics @ 9\mod_1425542494387_9.doc x @ 74610 @ 3 @ 1 Fig.
  • Page 87 Adjustments Fig. 68: Pneumatic parts Furnace closing cone Upper cushioning Magnetic switch Magnetic switch holder...
  • Page 88 Adjustments Adjusting screw Pneumatic cylinder Lower cushioning Pressure regulator Piston valve Cushioning valve Coil cooling valve Coil cooling adjustment Pressure gauge Combustion coil Muffler Pneumatics adjusting for correct furnace movement: When closing the furnace, the piston moves. Open the right side panel of the analyzer to find the pneumatic valves (9 / V7), (10 / V10) and (11 / V8) as well as the pressure regulator (8).
  • Page 89 Adjustments Click on “Communication test”-“Digital outputs”, on the 9th button counting from the left, to energize the coil cooling valve (11/V8), or start analysis cycle. Turn the restrictor (12) counter clockwise until the pressure on the gauge (13) is reduced by about 0.2 to 0.3 bar (3 to 4 psi) when the coil cooling valve (11/V8) is open.

  • Page 90: Pressure Regulation

    Adjustments Fig. 69: Adjusting correct furnace movement Pos : 5.12 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Press ure regul ati on ELTR A @ 6 \mod_1369298860002_9.doc x @ 41930 @ 2 @ 1 4.6 Pressure regulation Pos : 5.13 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/10Adjustments_C S-2000/1030 M odul Pres sur e reg ulators @ 9\mod_1425542522280_9.doc x @ 74622 @ @ 1 Inlet pressure Fig.
  • Page 91 Adjustments – Pull and rotate the knob of the regulator, until the pressure gauge (6) shows the correct value. – Ensure that the flow shown on the flow meter (5) shows between 180 and 200l/h; if not, adjust according to the related chapter. Fig.

  • Page 92: Closing Cone Adjustment

    Pos : 5.14 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Cl osing c one adjustment ELTR A @ 6 \mod_1369381713916_9.doc x @ 42030 @ 2 @ 1 4.7 Closing cone adjustment Pos : 5.15 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/10Adjustments_C S-2000/1035 M odul Cl osing cone @ 9\mod_1425542547459_9.doc x @ 74634 @ @ 1 –...

  • Page 93: Linearity Correction

    Adjustments Fig. 73: Closing cone Pos : 5.16 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Linearity c orrecti on @ 9\mod_1425629238672_9.doc x @ 75212 @ 2 @ 1 4.8 Linearity correction Pos : 5.17 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/10Adjustments_C S-2000/1040 M odul Linearity c orrec tion @ 9\mod_1425542573090_9.doc x @ 74646 @ @ 1...

  • Page 94: Induction Generator Control

    Adjustments Pos : 5.18 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Induction g enerator c ontrol ELTRA @ 6\mod_1369387490836_9.doc x @ 42096 @ 2 @ 1 4.9 Induction generator control Pos : 5.19 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/10Adjustments_C S-2000/1050 M odul Induction g enerator contr ol @ 9\mod_1425542716597_9.doc x @ 74670 @ @ 1...
  • Page 95 Adjustments The following diagrams show the relationship between the set value (adjustment with P2 on the HF 42 board) and the generator parameters. Fig. 76: Diagram Generator current vs. setpoint Fig. 77: Diagram Generator power vs. setpoint...

  • Page 96: Resistance Furnace

    Adjustments Pos : 5.20 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 R esistance furnace @ 9\mod_1425629579658_9.doc x @ 75224 @ 2 @ 1 4.10 Resistance furnace Pos : 5.21 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/10Adjustments_C S-2000/1055 M odul R esistanc e furnac e @ 9\mod_1425542751105_9.doc x @ 74682 @ 33 @ 1 4.10.1 Setting the furnace regulation card TH 43 / TH 44...

  • Page 97: Furnace Regulation Board Th 43 / Th

    Adjustments Replacement of the TH 43 board: once the TH 43 board has been replaced, it is necessary to perform the above adjustments, to avoid errors due to the tolerance of any component in the furnace. 4.10.2 Furnace regulation board TH 43 / TH 44 Description of its function: J 5 / 9 Mains L...

  • Page 98: Thermocouple Testing

    Adjustments Pos : 5.22 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 T her moc ouple testi ng @ 9\mod_1425629857432_9.doc x @ 75276 @ 2 @ 1 4.11 Thermocouple testing Pos : 5.23 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/10Adjustments_C S-2000/1060 M odul T hermoc oupl e testi ng @ 9\mod_1425542792773_9.doc x @ 74694 @ @ 1...

  • Page 99: Service

    Pos : 7.1 /0025 Ü bersc hriften/ELTR A 1. Ü berschriften/1 Ser vic e @ 6\mod_1369640568215_9.doc x @ 42168 @ 1 @ 1 Service Pos : 7.2 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 IR-paths, cleaning and r epl acing ELTRA @ 6\mod_1369640666897_9.doc x @ 42179 @ 2 @ 1 5.1 IR-paths, cleaning and replacing Pos : 7.3 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/15 Ser vice_CS- 2000/1505 Modul IR- paths , cl eaning and replaci ng @ 9\mod_1425543299696_9.doc x @ 74706 @ @ 1...

  • Page 100: Infrared Electronics

    Service Fig. 83: The tubing When reinstalling the infrared cell unit in the analyzer, pay attention to the color markings of the tubes and their fittings. Pos : 7.4 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Infrar ed el ectr onics ELTR A @ 6 \mod_1369640821864_9.doc x @ 42223 @ 2 @ 1 5.2 Infrared electronics Pos : 7.5 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/15 Ser vice_CS- 2000/1510 Modul IR- elec tronics @ 9\mod_1425543339476_9.doc x @ 74718 @ 33 @ 1 5.2.1 Removing the IRC-board...

  • Page 101: Changing The Ir-Source

    Service – The plugs ( 1 / 2 / 3 / 4 / 5 / 6 ) should be unplugged. – The 10 screws ( 7 and 8 ) should be removed. See also chapters “Infrared baseline adjustments”, “IR source voltage setting” and “Infrared power supply”...

  • Page 102: Chopper

    Service NOTICE The position of the IR sources in their housing has to be as shown in the graphics A and B. Correct: Wrong: 3 - 2 - 1 3 - 2 - 1 Fig. 86: IR sources in their housing If the position of a source is wrong, the radiation reaching the IR sensor is lower than when the source is in the right position.
  • Page 103 Service Fig. 87: Chopper motor replacement The chopper blade (1) is fastened to the motor (2). The chopper blade must be removed first in order to dismount the motor (2) from the mounting plate (3) Disassemble in the following order: safety ring (4) the washer(s) (5) ( there could be two ) the chopper blade (1)

  • Page 104: Leak Checking

    Service Fig. 88: Chopper – Disassemble the plug (1) by removing the two screws (2). – The cables (3) of the IR source (4) are then unsoldered from plug (1) – Unscrew the nuts (5) – Install the new motor (6) –...
  • Page 105 Service – After pressing the button, the pressure drops on gauge (3) for about 5 seconds and then it remains constant. Watch it for about a minute. If there is no pressure drop any more, the complete gas system is seal so that the leakage test is successfully completed. –...
  • Page 106 Service Fig. 90: Leak check induction furnace – Open the furnace and check again. If the pressure decreases when checking with open furnace, then the leakage is not in the furnace area but elsewhere in the analyzer. Most probable reasons: –...
  • Page 107 Service Fig. 91: Tubes to squeeze...

  • Page 108: Solenoid Valves Cleaning

    If the voltages on V2, V3, or V4 are wrong, then replace the electronic drivers. Pos : 7.10 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Sol enoi d val ves cleaning ELTR A @ 6\mod_1369643206541_9.doc x @ 42465 @ 2 @ 1 5.5 Solenoid valves cleaning...
  • Page 109 Service 3 - 1 3 - 1 Fig. 93: Solenoid valve 3/2 – Turn the power switch to pos.0. – Unplug the main power plug as well. – Remove the connector (7). – Unscrew the nut (1). – Remove the coil (2) (only with the 2/2 valve). –...

  • Page 110: Flow Sensor Replacement

    Service Pos : 7.12 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Fl ow s ensor r epl ac ement Eltr a @ 8 \mod_1396941567775_9.doc x @ 60384 @ 2 @ 1 5.6 Flow sensor replacement Pos : 7.13 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/15 Ser vic e_C S-2000/1535 Modul Flow sens or replac ement @ 9\mod_1425543539438_9.doc x @ 74778 @ @ 1 Fig.

  • Page 111: Gas Pump Replacement

    Service Pos : 7.14 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Gas pump replacement Eltra @ 8\mod_1396941649931_9.doc x @ 60396 @ 2 @ 1 5.7 Gas pump replacement Pos : 7.15 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/15 Ser vic e_C S-2000/1540 Modul Gas pump r epl ac ement @ 9\mod_1425543580653_9.doc x @ 74790 @ @ 1 Fig.

  • Page 112: Thermocouple Replacement

    Service Pos : 7.16 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 T her moc ouple replac ement @ 9 \mod_1425632233953_9.doc x @ 75300 @ 2 @ 1 5.8 Thermocouple replacement Pos : 7.17 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/15 Ser vic e_C S-2000/1545 Modul Ther moc oupl e r epl acement @ 9\mod_1425543624115_9.doc x @ 74802 @ @ 1...
  • Page 113 Service Fig. 97: Chinch connector of thermocouple – Hold the spring (36665) which is holding the thermocouple in place, to slide along the thermocouple while pulling it down out of the furnace. Fig. 98: Spring (36665) which is holding the thermocouple in place Fig.

  • Page 114: Gas Saving Mode

    How to set the jumpers for gas saving mode: CAUTION: This option is funtional with EPROMs Pos : 7.18 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Gas s aving mode ELTRA @ 6\mod_1369643654807_9.doc x @ 42575 @ 2 @ 1 5.9 Gas saving mode CAUTION: This option is funtional with EPROMs Pos : 7.19 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/15 Ser vic e_C S-2000/1550 Modul Gas s avi ng mode @ 9\mod_1425543657717_9.doc x @ 74814 @ @ 1...

  • Page 115: Gas Saving Also For Resistance Furnace

    Service Pos : 7.20 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Gas s aving also for resis tanc e furnac e @ 9\mod_1425632688373_9.doc x @ 75312 @ 2 @ 1 5.10 Gas saving also for resistance furnace Pos : 7.21 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/15 Ser vic e_C S-2000/1555 Modul Gas s avi ng for resis tanc e furnac e @ 9\mod_1425543689791_9.doc x @ 74826 @ @ 1 If this feature is required, the CS-2000 can be upgraded as follows.

  • Page 116: Furnace Pneumatics - Additional Safety Features (Optional)

    Connect the coil of 01160 as shown in schematic Pos : 7.22 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 F urnac e pneumatic s - additi onal s afety featur es (opti onal) ELTR A @ 6\mod_1369643455549_9.doc x @ 42531 @ 2 @ 1 5.11 Furnace pneumatics - additional safety features (optional)

  • Page 117: Halogen Trap - Installing

    Pos : 7.25 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/15 Ser vic e_C S-2000/1565 Modul Installing a halog en trap @ 9\mod_1425543807540_9.doc x @ 74850 @ @ 1 Eltra analyzers don’t need any halogen trap when they are equipped with golden paths. However, in case a user may insist in a halogen trap, the installation can be done as follows: Fig.

  • Page 118: Miscellaneous

    Miscellaneous Pos : 9.1 /0025 Ü bersc hriften/ELTR A 1. Ü berschriften/1 Misc ellaneous ELTRA @ 6\mod_1370352969876_9.doc x @ 42719 @ 1 @ 1 Miscellaneous Pos : 9.2 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Ordering numbers ELTR A @ 6\mod_1373449838307_9.doc x @ 43582 @ 2 @ 1 6.1 Ordering numbers...
  • Page 119 Miscellaneous Part No. Description 11042 Upper tube holder 11045 Lower tube holder 11062 Reagent tube 11064 Reagent tube 11091 Dust trap mechanism 11105 Metal dust filter 11110 Filter housing 11115 Furnace outlet tube 11120 Paper filter holder 11185 Paper filters 11480 Adjustable restrictor 15083...

  • Page 120: Left Hand Side

    Miscellaneous 6.1.2 Left hand side Fig. 106: Left hand side view...
  • Page 121 Miscellaneous Part No. Description 11180 Dust filter cartridge 11370- Gas flow regulating valve 2001 11390 Oxygen solenoid valve 11400 Pressure outlet solenoid valve 11415 Oxygen stop solenoid valve 11415 Lance valve 11430 Purge solenoid valve 11440 Bypass solenoid valve 11490 Pressure regulator 11492 Inlet pressure regulator...

  • Page 122: Right Hand Side

    Miscellaneous 6.1.3 Right hand side Fig. 107: Right hand side view...
  • Page 123 Miscellaneous Part No. Description 11190 Exhaust muffler 11376 Fixing plate for 11822 11492 Pressure regulator 11822 Pnematic valve block 12045 Transformer 12080 Rectifier 12100 Transformer 13850 Centrifugal blower 77050 TRIAC 77135 Capacitor...

  • Page 124: Induction Furnace

    Miscellaneous 6.1.4 Induction furnace Fig. 108: Induction furnace Part No. Description 13067 Combustion coil 14009 Pneumatic cylinder for furnace lift 14021 Upper furnace lock 14026 Lower furnace lock 14030 Upper furnace plate 14035 Lower furnace plate 14090 Bearing 14100 Mounting rod...
  • Page 125 Miscellaneous 14110 Threaded rod 14120 Furnace cover 14130 Combustion tube 14150 Lower log 14160 Upper log 14161 Lower knurled nut 14165 Upper knurled nut 14168 Pedestal 14170 Pedestal mount 14180 Furnace closure 14185 Tray 14200 Metal tube 14210 Threaded rod 14220 Cylinder support 70380...

  • Page 126: Furnace Cleaning

    Miscellaneous 6.1.5 Furnace cleaning Fig. 109: Furnace cleaning mechanism Part No. Description 14014 Complete furnace cleaning assembly unit: 14021 Upper furnace lock 14045 Cleaning brush for combustion tube 14051 Brush holder 14072 Ceramic heat shield for brush 14080 Cleaning mechanism Rod 14160 Upper log 70120...

  • Page 127: Oscillating Circuit

    Miscellaneous 6.1.6 Oscillating circuit Fig. 110: Oscillating circuit Part No. Description 13060 Protection sheet 13081 Capacitor support 13090 Upper coil connector 13100 Lower coil connector 13122 Capacitor connector 13130 Capacitor connector 13140 Ground connector 13151 Anode connector and heat sink 13160 Coil heat sink 13170...
  • Page 128 Miscellaneous 13220 Anode choke 13250 Chassis support 13260 High voltage filter 13270 Resistor 77140 HF-filter 77210 Oscillator tube 77322 Capacitorr 77330 Capacitor 77335 Capacitor 77333 Filter 77345 (13261; 13262; 77340; 77341; 77342) Capacitor 77350 Capacitor 100 nF 77489 Bracket 77600 Resistor 77610 Resistor...

  • Page 129: Infrared Cell

    Miscellaneous 6.1.7 Infrared cell Fig. 111: Infrared cell...
  • Page 130 Miscellaneous Fig. 112: Golden path Part No. Description 05008 IR fitting 05064 Chopper motor 05175 Gas conditioner 05250 IR-housing holder 05270 Threaded rod ( advice the length ) 05278 IR pre-amplifier V4 05279 IR pre-amplifier 05350 IR front panel 05465 IR path ring with window (source side) 05469 IR path cone with window (detector side)

  • Page 131: Chopper

    Miscellaneous 06730 IRC 1 channel 06731 IRC 2 channel 06732 IRC 3 channel 06733 IRC 4 channel 089330263 Cylinder screw 84 M2 15209 Flow meter 704120 O-ring 6.1.8 Chopper Fig. 113: Chopper Description Part No. 05020 Chopper blade 05030 Chopper blade holder 05064 Chopper motor 05048...

  • Page 132: Resistance Furnace

    Miscellaneous 05049 Double source 70280 O-ring 70330 O-ring 75120 Spring 75130 Retaining washer 75190 Washer 6.1.9 Resistance furnace Fig. 114: Resistance furnace Part No. Description 36101 Boat stop 36216 Combustion boat insertion stick 36217 Combustion boat removing stick 36242 Ceramic plate 36283 Heating element connector 36288...
  • Page 133 Miscellaneous 36445 Front panel for the combustion boat 36465 Ceran plate 36620 Dust trap 36665 Spring 36799 Cooling fan 36907* Temperature control board TH 43 / TH 44 36908 Cable for TH 43 / TH 44 36914 Thermocouple LCD – display DVM 2 36975 70380 O-ring...

  • Page 134: Oxygen Purifying Furnace

    Miscellaneous Fig. 115: Ordering Numbers resistance furnace Part No. Description 36720 Teflon tube 36725 Teflon tube for 36720 6.1.10 Oxygen purifying furnace Fig. 116: Oxygen purifying furnace Part No. Description 21010 Heather section 21120 Quartz tube 70380 O-ring...

  • Page 135: Dust Trap

    Miscellaneous 6.1.11 Dust trap Optional for metal analysis Fig. 117: Dust trap Part No. Description 70320 O-Ring 70350 O-Ring 07370 O-Ring 11091 Dust trap mechanism...
  • Page 136 Miscellaneous 11093 Filter plate 11105 Metal dust filter 11110 Filter housing 36751- Panel 3001 36752 Filter housing support...

  • Page 137: Wiring Diagrams

    Miscellaneous Pos : 9.4 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Wiring di agrams Eltra @ 8\mod_1399966125802_9.doc x @ 60786 @ 2 @ 1 6.2 Wiring diagrams Pos : 9.5 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/20 Mis cell aneous _CS- 2000/2010 M odul Wiring diagrams @ 9\mod_1425543931731_9.doc x @ 74874 @ 3333333 @ 1...

  • Page 138: Left Hand Side Power Wiring

    Miscellaneous Fig:. 118: Rightt hand side power wiring 6.2.2 Left hand side power wiring...

  • Page 139: Valve Wiring

    Miscellaneous Fig. 119: Left hand side power wiring 6.2.3 Valve wiring...

  • Page 140: Control Signal Wiring

    Miscellaneous Fig. 120: Valve wiring 6.2.4 Control signal wiring Fig. 121: Control signal wiring...

  • Page 141: Ir-Current Supply, Old Version

    Miscellaneous 6.2.5 IR-current supply, old version blue brown yellow grey green orange pink black violett white Je nach Anzahl der IR-Zellen According to the number of IR cells Heaters 200VDC as long as the LED is on. No voltage as long as the LED is OFF 06255 06640...

  • Page 142: Ir-Cell Internal Signals

    Miscellaneous 6.2.6 IR-cell internal signals Fig. 123: IR-current supply, new version...

  • Page 143: Amplitude Circle

    Miscellaneous 6.2.7 Amplitude circle...

  • Page 144: Gas Flow Diagrams

    Miscellaneous Pos : 9.6 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Gas fl ow diagrams El tra @ 8\mod_1396942447930_9.doc x @ 60504 @ 2 @ 1 6.3 Gas flow diagrams Pos : 9.7 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/20 Mis cell aneous _CS- 2000/2015 M odule Gas fl ow diagrams @ 9\mod_1425543960513_9.doc x @ 74886 @ 3333 @ 1 6.3.1 Gas flow for induction furnace when furnace is closed...

  • Page 145: Gas Flow For Induction Furnace When Furnace Is Open

    Miscellaneous 6.3.2 Gas flow for induction furnace when furnace is open...

  • Page 146: Gas Flow For Resistance Furnace

    Miscellaneous 6.3.3 Gas flow for resistance furnace...

  • Page 147: Valve Contolling

    Miscellaneous 6.3.4 Valve contolling...

  • Page 148: Spare Parts Kits

    Miscellaneous Pos : 9.8 /0025 Ü bersc hriften/ELTR A 1.1 Ü bersc hriften/11 Spar e parts kits @ 7\mod_1382427709237_9.doc x @ 50008 @ 2 @ 1 6.4 Spare parts kits Pos : 9.9 /0010 ELTR A/0015 s er vice_i nstr uctions /CS- 2000_s er vic e/20 Mis cell aneous _CS- 2000/2020 M odul Spare parts ki ts @ 9\mod_1425543989561_9.doc x @ 74898 @ 33 @ 1 6.4.1 Common spare parts kti for all analysers description 05048...
  • Page 149 Miscellaneous 15095 Gasflow meter 600 l/h 15098 Gas flow control board FC 21 16110 Power supply board NK 32 16114 Power supply 24V 5A 18173 PC-cable 18454 Balance cable 21120 Quartz tube for purification furnace 35310 Pressure switch 70120 O-ring 3.4 x 1.9 VT furnace cleaning rods (CS 800) and for furnace platform 70150 O-ring 6 x 2.5 VT...

  • Page 150: Spare Parts Kit For Cs2000 (Including Spare Parts Kits Cs800 And Htf540)

    Miscellaneous 75190 Washer 77140 HF-filter 250 V 78010 Mains power switch 90290 Copper oxide 100g 92610 Tube of grease 6.4.2 Spare Parts kit for CS2000 (including spare parts kits CS800 and HTF540) description 05390 Heatsink 09090 Reagent tube 11105 Metal dust filter 11115 Plastic tube 75mm...
  • Page 151 Miscellaneous 14080 Cleaning mechanism rod 14130 Combustion tube l=145 id=32 od=36 mm 14168 Pedestal 15208 Gas flow sensor 20000 Catalyst furnace 20040 Catalyst tube 200 x 16mm 35070 Ventilator frame 35355 Lower reagent tube connector 36101 Boat stop 36216 Combustion boat insertion stick 36217 Combustion boat removing stick 36242...

  • Page 152: Maintenance

    Temperatur control board TH43 is a newer version and fully compatible Pos : 9.10 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften11 Mai ntenanc e (2015- 12- 03 07:57:57) @ 7\mod_1383121708299_9.doc x @ 50516 @ 2 @ 1 6.5 Maintenance Pos : 9.11 /0010 ELTR A/0015 s ervic e_ins truc tions/C S-2000_s er vice/20 Misc ellaneous_CS-2000/2025 Modul Mai ntenanc e C S-2000 @ 9\mod_1425544021010_9.doc x @ 74910 @ @ 1 –...

  • Page 153: Approved Methodologies To Which Eltra Instruments Conform

    Approved methodologies to which Eltra instruments conform Pos : 11.1 /0025 Übersc hriften/ELTRA 1. Ü bersc hriften/1 Approved methodol ogies to whic h Eltra ins trumen ts c onfor m ELTRA @ 7\mod_1388672840004_9.doc x @ 53931 @ 1 @ 1 Approved methodologies to which Eltra instruments conform Pos : 11.2 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Inorganic ma teri als (Metals) @ 7\mod_1388733469039_9.doc x @ 54002 @ 2 @ 1...

  • Page 154: Organic Materials (Oil, Coal, Foodstuffs)

    Steel CS 2000 Pos : 11.4 /0025 Übersc hriften/ELTRA 1.1 Übersc hriften/11 Organic materials (Oil, C oal, foods tuffs) @ 7\mod_1388733114197_9.doc x @ 53990 @ 2 @ 1 7.2 Organic materials (Oil, Coal, foodstuffs) Pos : 11.5 /0010 ELTR A/0099 Geräteneutr al/Standar d M odule El tra/9904 Standard M odul Organic materi als (Nor m)_N eu @ 7 \mod_1388672707117_9.doc x @ 53919 @ @ 1...

  • Page 155: Disposal

    Disposal Pos : 13.1 /0025 Übersc hriften/1. Übersc hriften/1 Ents orgung @ 0\mod_1234258746831_9.doc x @ 6173 @ 1 @ 1 Disposal Pos : 13.2 /0005 RET SCH/0000 Ger äteneutral/M odul eEnts orgung General (2015-10-21 11:05:55) @ 0\mod_1234269404935_9.doc x @ 6180 @ @ 1 Please observe the respective statutory requirements with respect to disposal.

  • Page 156: Index

    Analysis time ............32 Contaminated or corroded solenoid valve ..16 Analyzing ............19 Control signal wiring ......... 140 Approved methodologies to which Eltra Copper oxide bad quality ........67 instruments conform ........153 Copper oxide has a bad quality ......67 Averages .............
  • Page 157 Front panel ............45 Infrared cell ............129 Front CS-2000 ............ 63 Infrared cell modification - general information .. 75 Front of CS-2000 ..........54 Infrared cell temperature regulation ....84 Front side ............91 Infrared electronics .......... 100 Front side view ..........118 Infrared source replacement ......
  • Page 158 Index Leak check induction furnace ......106 Outflow valve ............. 47 Leak checking ........... 104 Outflow valve does not close ......47 Leakage in the furnace area ......105 Outlet tap not properly open ......14 Leakage outside the furnace area ....106 Outlet tap of the oxygen bottle is not properly open..............
  • Page 159 Index Test points (general) IR-Cell ............78 Reason for instability .......... 47 Test points IR-ranges......... 79 Rectifier ............... 24 TH 43 ............96, 97 Rectifier could be faulty ........24 TH 44 ............96, 97 Removing the IRC-board ........100 The filament of the generator tube doesn’t glow 21 Resistance furnace .......58, 96, 132 The furnace does not close .......
  • Page 160 Copyright © Copyright by Eltra GmbH Retsch-Allee 1-5 D-42781 Haan Germany...

Table of Contents

Save PDF
