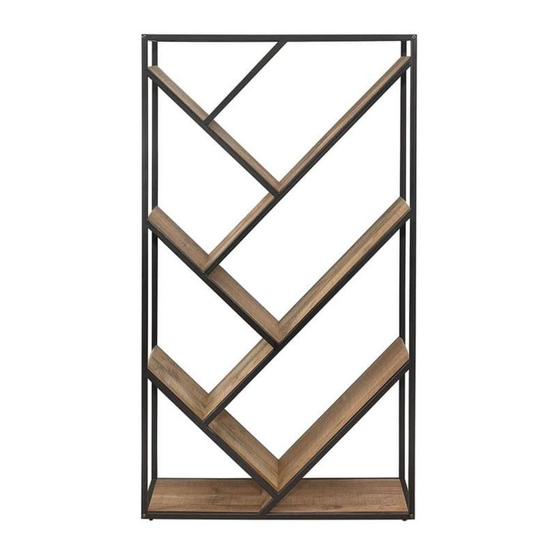

Summary of Contents for Birlea URBDBCRUS
- Page 2 Periodically check all screws & fixings to ensure they are secure. DO NOT push this product as this will cause damage. Always lift this product with two people to repositions. Keep any sharp objects away from this product . Page of 6 www.birlea.com...
- Page 3 Vendor: S000350 Parts List Hardware List Part Descripion Part Description Top/Bottom panel Allen key M4 Shelf panel-A JCBC screw M6 x 40mm Shelf panel-B M3.5 x 16mm C.B Screw Shelf panel-C 8'' x 1'' PP tape Wall plug Shelf panel-D Metal Front M4 x 38mm C.B Screw Metal Back...
- Page 4 Vendor: S000350 Step 1: Attach Metal Front (6) and Metal Back (7) to Metal Support (8) using hardware A and B. DO NOT use any power tools as this may damage the frame and will invalidate any claim. B x 6 Step 2: Attach Top panel (1) to Metal Front (6) and Metal Back (7) using hardware C with a screwdriver (not provided).
- Page 5 Vendor: S000350 Step 3: Attach Shelf panel (2), (3) and (5) to Metal Front (6) and Metal Back (7) using hardware C with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. C x 20 Step 4: Attach Shelf panel (4) to Metal Front (6) and Metal Back (7) using hardware C with a screwdriver (not provided).
- Page 6 Vendor: S000350 Step 5: Attach Bottom panel (1) to Metal Front (6) and Metal Back (7) using hardware C with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. C x 4 Step 6: Attach Metal Support (8) to Metal Front (6) and Metal Back (7) using hardware A and B.
- Page 7 Ensure the head of any screw used has a diameter greater than the mounting hole and the fixing is safe and secure before use. Birlea Furniture advise you use the wall straps provided to further enhance the safety of this product.
