Model: PROUTV65-GC-E
Model: PROUTV105-GC-E
(UTV Sprayer, GE-85, Electric)

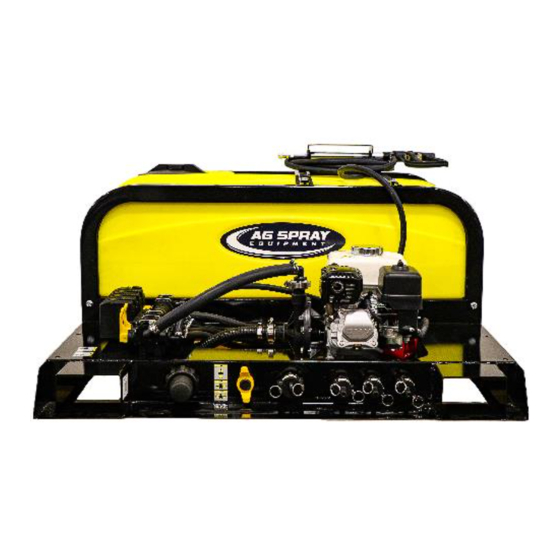

PROUTV65-GC-E
Shown
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
UTV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
BAKERSFIELD, CA
COLUMBUS, NE
877-724-2236
800-274-1025
FARGO, ND
HOPKINSVILLE, KY
701-280-2862
800-637-7172
NEWTON, KS
PASCO, WA
800-394-7662
800-634-2026
If you should have a question or experience a problem with
your Ag Spray Product: Visit our website @ www.agspray.com or
call the Toll free number above. Our technical support
representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be re-
quired to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.
OWNER'S MANUAL
Gas Pro UTV Sprayers
(5303227)
(5303232)
DOTHAN, AL
800-227-4098
MANKATO, MN
507-388-6295
TEMPE, AZ
877-974-7166
Model: PROUTV65-GC-M
Model: PROUTV105-GC-M
(UTV Sprayer, GE-85, Manual)
Filter
***IMPORTANT REMINDER***
This sprayer comes with a valve located on your in-
take line. Make sure the valve is in the "open" posi-
tion before using this sprayer. Close this valve when
cleaning strainer.
www.agspray.com
[5195667
(5303226)
(5303231)
PROUTV105-GC-M
Shown
Valve
(01/22)]
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROUTV65-GC-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AG SPRAY PROUTV65-GC-E

  • Page 1 800-634-2026 877-974-7166 If you should have a question or experience a problem with Filter your Ag Spray Product: Visit our website @ www.agspray.com or Valve call the Toll free number above. Our technical support ***IMPORTANT REMINDER*** representatives will be happy to help you.
  • Page 2: Table Of Contents

    (UTV Sprayer, GE-85, Electric) (UTV Sprayer, GE-85, Manual) Approx. Sprayer Weight when filled w/water Approx. Sprayer Weight when filled w/water PROUTV65-GC-E: 785 Lbs. PROUTV65-GC-M: 850 Lbs. PROUTV105-GC-E: 1,140 Lbs. PROUTV105-GC-M: 1,200 Lbs. Always check the vehicle load rating before using this sprayer. Do not exceed the recommended rating.
  • Page 3: Technical Specs

    Technical Specifications • 65 or 105 Gallon Corrosion-Resistant Polyethylene • Molded-In Outlet Fitting for Complete Cleanout Tank • Electric or Manual Valves • ProSeries 22” HP Long Range Ergonomic Handgun • Manual has 3-Section Control Swing Arm • 25 Ft. Handgun Hose w/Position Detents •...
  • Page 4: Maintenance And Tank Care

    Conditions of weather and terrain must be considered when setting the sprayer. Do not spray on windy days. Protective clothing must be worn in some cases Be sure to read the chemical label(s) before application! Ace Polypropylene Gas Engine Driven Centrifugal Pump Maximum Fluid Temperature: 140°F Do NOT Use with Flammable Liquids.
  • Page 5: Winter Storage

    Winter Storage Prepare the sprayer for end-of-season storage by running RV antifreeze through the system. This will keep internal parts lubricated, protect against corrosion and keep the unit from freezing. Note: RV antifreeze is non-toxic and biodegradable and generally safer for the environment than automotive antifreeze. Before storing your sprayer for winter or long term storage, thoroughly clean and drain it as much as possible.
  • Page 6: Pump Exploded View/Parts List

    Polypropylene Gas Engine Driven Centrifugal Pump • Barske Tall Blade Impeller Design - Higher Pressures at Standard Engine Speeds • Suction 1” NPT x Discharge 3/4” NPT • Max. Pressure 57 PSI and Max. Flow 22.5 GPM • Impeller Attaches Directly to 3/4” Keyed Shaft Engine •...
  • Page 7: Proutv65/105-Gc-E Exploded Views

    Legend: Exploded View: PROUTV65-GC-E A = 65 Gallon (5303227) B = 105 Gallon PROUTV-105-GC-E See Parts List Page 9 (5303232) PROUTV65-GC-E Shown Page 7...
  • Page 8 Detail A Detail B Legend: A = 65 Gallon B = 105 Gallon See Parts List Page 9 See Detail A Plumbing Detail PROUTV65-GC-E Handgun PROUTV105-GC-E Hose Bypass Hose Hose to Valves Agitation Intake Line Detail B Feeder Hoses See Detail C...
  • Page 9: Proutv65/105-Gc-E Parts List

    Page 9...
  • Page 10: Proutv65/105-Gc-E Dimensions

    Dimensions: PROUTV65-GC-E (5303227) 23.813” 52.156” 45.750” PROUTV105-GC-E (5303232) 31.313” 52.156” 45.750” There is a valve on the intake line. It is at this location so you can shut off the flow of solution to access your system’s filter screen for cleaning.
  • Page 11: Proutv65/105-Gc-M Exploded Views

    Legend: Exploded View: PROUTV65-GC-M A = 65 Gallon (5303226) B = 105 Gallon PROUTV-105-GC-M See Parts List Page 13 (5303231) PROUTV105-GC-M Shown Page 11...
  • Page 12 Detail A Detail B Legend: A = 65 Gallon B = 105 Gallon See Parts List Page 13 See Detail A Plumbing Detail Handgun Hose Bypass Hose Detail B Hose to Agitation Valves Feeder Hoses Intake Line Plumbing Detail Drain PROUTV65-GC-M See Detail C PROUTV105-GC-M...
  • Page 13: Proutv65/105-Gc-M Parts List

    Page 13...
  • Page 14: Proutv65/105-Gc-M Dimensions

    Dimensions: PROUTV65-GC-M (5303226) 23.813” 52.156” 45.750” PROUTV105-GC-M (5303231) 31.313” 52.156” 45.750” PRO SERIES Long Range Ergonomic Handguns Technical Specifications: • Adjustable Spray Pattern • Aluminum Barrel • No Drip Shut Off • Convenient Hanger Hole • Integrated Trigger Lock • 600 PSI, 8 GPM •...
  • Page 15 13’ Control Cable 5043042) Ground 12V + OPTIONAL PRO UTV with Electric Control will require the control box be connected to 12VDC. Pressure Tube Install the control box in a convenient place within reach of Pressure Tubing Extension 4 Coupling the operator by bolting the control box mounting bracket to the vehicle.
  • Page 16: Warranty

    WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Ag Spray Equipment shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
