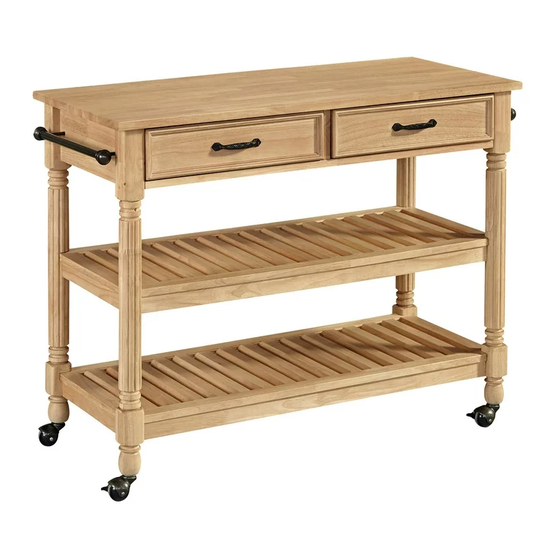

Kitchen Cart
IMPORTANT NOTE
.
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.

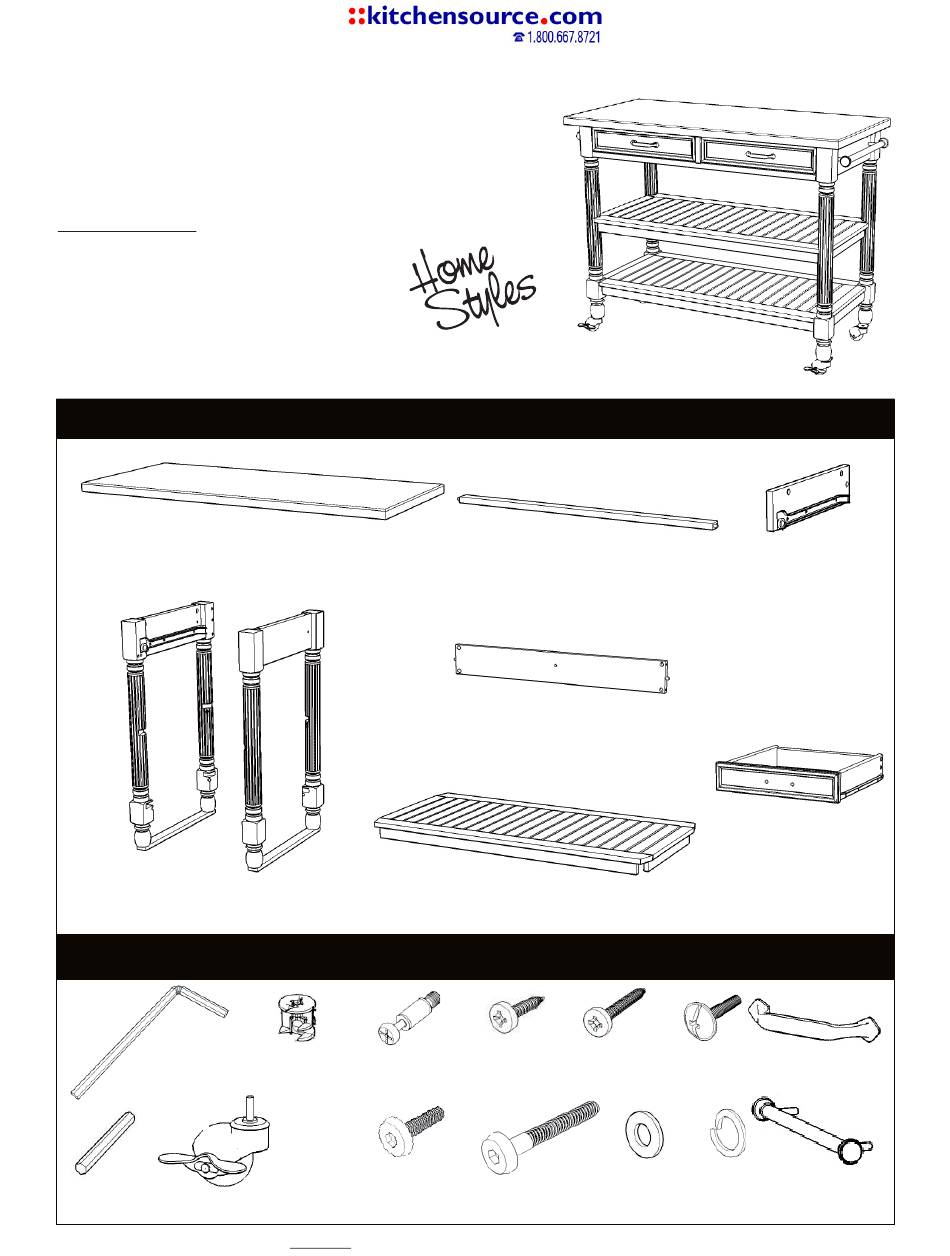

Part List
A.
Top
1 Pc.
B.
Side Frame
1 Pc.
Hardware List
Hex Wrench
1 Pc.
Small Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
F.
Back Rail
1 Pc.
C.
G.
Side Frame
Shelf
1 Pc.
2 Pcs.
M4x24
Cam Lock
Cam Lock Screw
13 Pcs. (+2 extra)
13 Pcs. (+1 extra)
Caster
2 Locking
M6x25
2 Non-Locking
Head Cap Bolt (short)
4 Pcs.
5 Pcs.(+1 extra)
E.
Front Rail
1 Pc.
instructions for steps to complete drawer assembly)
M3.5x13
M3.5x25
Wood Screw (short)
Wood Screw (long)
for bottom drawer
for side drawer
12 Pcs. (+1 extra)
16 Pcs. (+1 extra)
M6x50
Flat Washer
Head Cap Bolt (long)
8 Pcs. (+1 extra)
8 Pcs. (+1 extra)
D.
Divider
1 Pc.
Drawer
2 Pcs.
(Knock-Down Construction,
please refer to the last page of
M4x25
Pull Handle
Machine Screw
2 Pcs.
4 Pcs.
Spring Washer
Side Bar
8 Pcs. (+1 extra)
2 Pcs.
H.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5318 95
Summary of Contents for Home Styles 88 5318 95
- Page 1 88 5318 95 Kitchen Cart IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damage occurring to the parts. We have taken great care in the design of this...
- Page 2 Assembly Instructions 2/6 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor.
- Page 3 Assembly Instructions 3/6 Head Cap Bolt (short) Cam Lock Cam Lock Screw STEP 3 Assemble Front Rail (E), Divider (D) and Back Rail (F) with Cam Lock and Head Cap Bolt (short). Attach unit to Side Frame (B) with Cam Locks. (See Figure 1) Figure 1 Figure 1...
- Page 4 Assembly Instructions 4/6 Cam Lock Head Cap Bolt (long) Spring Washer Flat Washer Flat Washer STEP 5 Spring Washer Head Cap Bolt Attach Side Frame (C) to unit with Cam Lock, Flat Washers (long) Spring Washers and Head Cap Bolts (long). Locking Caster Non-Locking Caster...
- Page 5 Assembly Instructions 5/6 Side Bar Head Cap Bolt (short) Figure 3 STEP 7 Turn the unit to its’ upright position. Attach Side Bars to unit with Head Cap Bolts (short). (See Figure 3) Cam Lock STEP 8 Place Top (A) onto unit with Cam Locks.
- Page 6 Assembly Instructions 6/6 Drawer (H) STEP 1 Attach H1 to H3 and H4, using a Phillips screwdriver and long wood screws (4X), tighten halfway. Figure 1 Attach H2 to H3 and H4 using long wood screws (4X), STEP 2 tighten halfway. (See Figure 1) Slide H5 into the grooves in H3 and H4.
