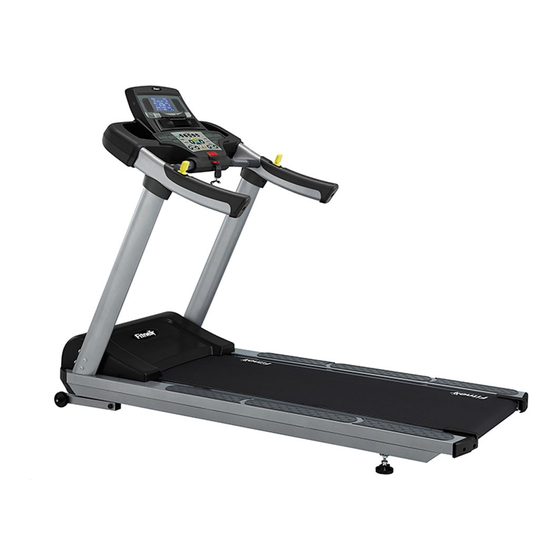

T70

VERSION 1202

Need help?

Do you have a question about the T70 and is the answer not in the manual?

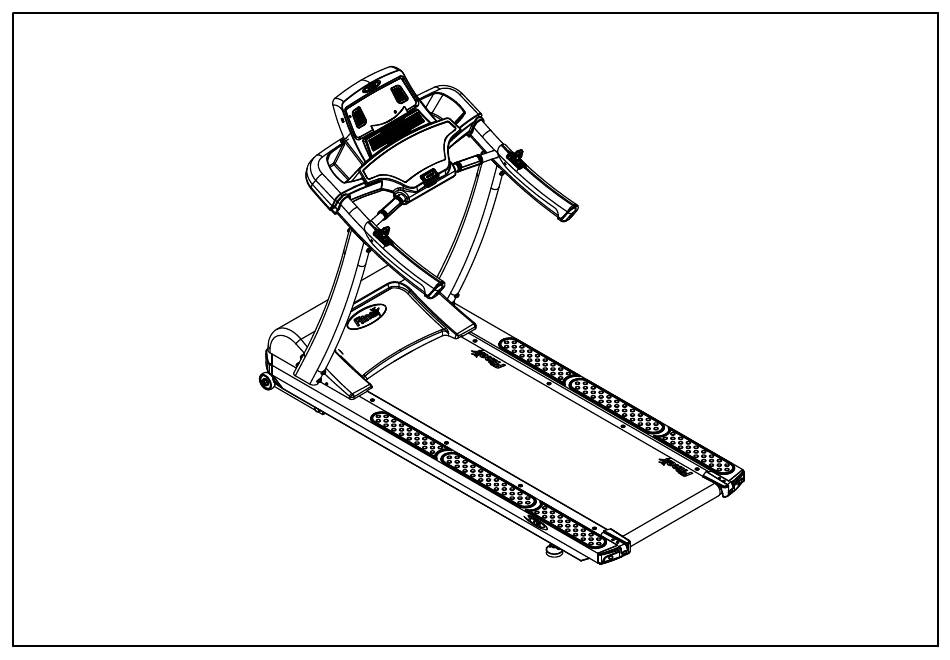

Page 1 VERSION 1202...
Page 2 FITNEX T70 HARDWARE ILLUSTRATION SHEET Qty. A1. M10X15 Round Socket Head Screw---------[12pcs] C1. M10 Radian Washer----------------------------[12pcs] D1. M6 Allen Wrench-------------------------------[1pcs ] PAGE 1...
Page 3 FITNEX T70 PARTS ILLUSTRATION SHEET A[1PCS] B[2PCS] C[1PCS] PAGE 2...
Page 4 STEP 3. Using tool(D1) to tighten console set(D) STEP 1. with screw(A1) and washer(C1). Connecting cables. Using tool(D1) to tighten upright tube(B) with screw(A1) and radian washer(C1). NOTICE:CABLES CAN NOT BE CRUSHED. STEP 2. Pulling out the cable from main frame through upright tube(B).
Page 5 After assembly and before turning power on, position the rear roller using the ' T ' wrench ( refer to the drawing if needed ) and make 3 turns clockwise to avoid the belt from slipping If belt is too far to the left side 1) turn the left roller bolt 1/4 turn clockwise(tighten) 2) turn the right roller bolt 1/4 turn counterclockwise(loosen) If belt is too far to the right side...
Page 6: Tensioning The Belt
TENSIONING THE BELT If when you plant your foot on the belt, you can feel a sliping sensation then the belt has been stretched and is slipping over the roller. This is normal and common adjustment on a new treadmill. To eliminate this slipping, tighten both sides of the rear roller by turning a allen wrench 1/4 as shown above.
