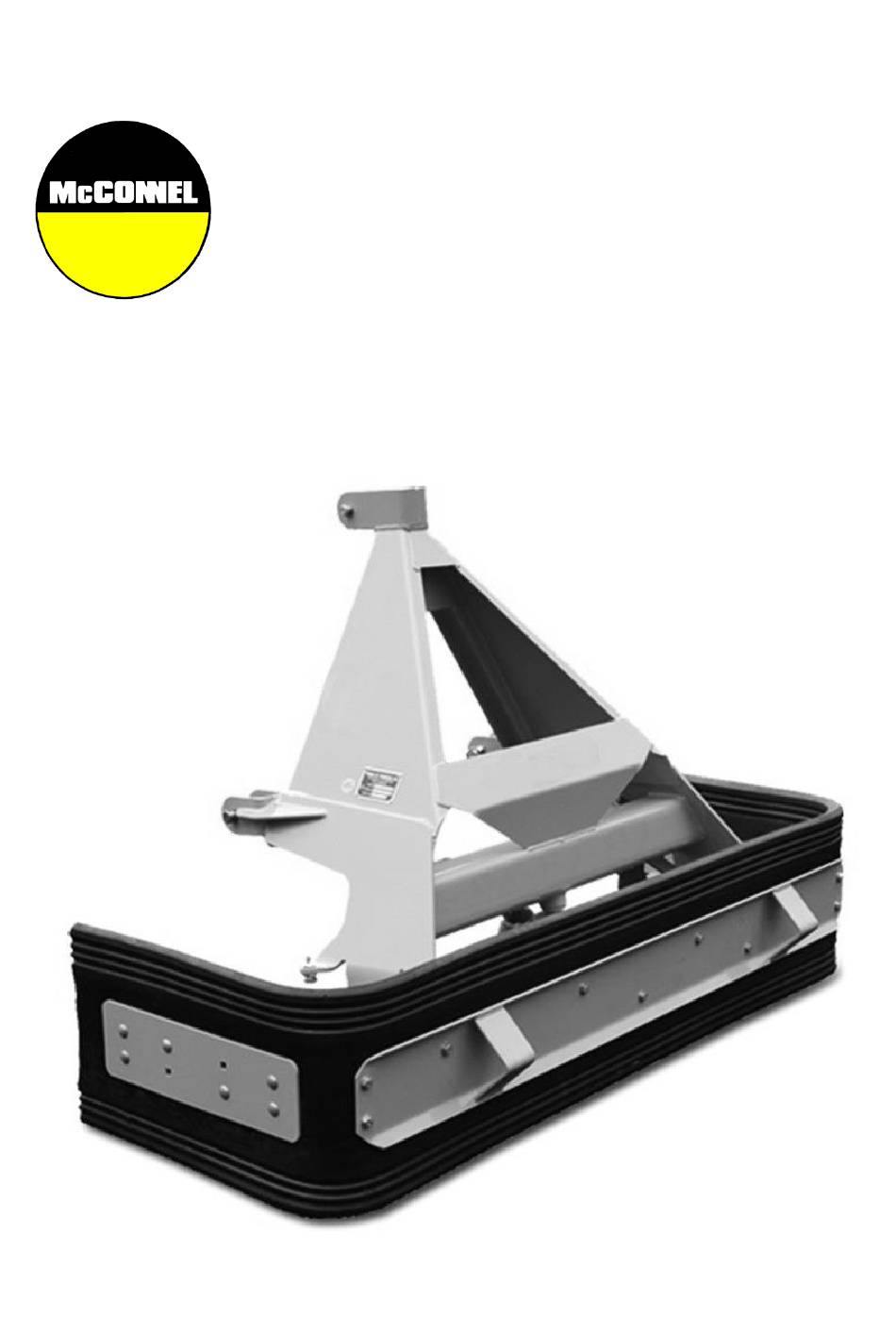

- Page 1 McCONNEL Publication 852 September 2016 Part No. 23671.52 Revision: YARDSCRAPERS Models: M402G & M452G Operator & Parts Manual...
- Page 2 VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with McConnel Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
- Page 4 1500 hours. Engine warranty will be specific to the Manufacturer of that unit. 1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 6 months.
- Page 5 2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs. Continued use of a machine, after a fault has occurred, can result in further component failure for which McConnel Ltd cannot be held liable.
- Page 6 MISCELLANEOUS 4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall be deemed to be a waiver of any other term. 4.02. If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the invalidity of such provision shall not invalidate any other provisions herein.
- Page 7 DECLARATION OF CONFORMITY Conforming to EU Machinery Directive 2006/42/EC McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK Hereby declare that: The Product; Tractor Mounted Yardscraper Product Code; M402, M452 Serial No. & Date ………………………………… Type ………………………… Manufactured in; United Kingdom Complies with the required provisions of the Machinery Directive 2006/42/EC The machinery directive is supported by the following harmonized standards;...
- Page 8 No responsibility will be accepted by McConnel Limited for any injury, damage or loss arising from the improper use or lack of maintenance of any machinery supplied by them...
-
Page 10: Table Of Contents
LIST OF CONTENTS Operator Section General Information Machine Description & Purpose of Use Machine Identification Technical Specifications Safety Information Vehicle / Tractor Preparation General Instructions Handling & Transportation Set Up Instructions Maintenance Parts Section Yardscraper M402G Yardscraper M452G... -
Page 11: General Information
GENERAL INFORMATION Read this manual before fitting or operating the machine. Whenever any doubt exists contact your dealer or the McConnel Service Department for assistance. Use only ‘McConnel Genuine Parts’ on McConnel Equipment and Machinery DEFINITIONS - The following definitions apply throughout this manual: WARNING: An operating procedure, technique etc., which can result in personal injury or loss of life if... -
Page 12: Machine Description & Purpose Of Use

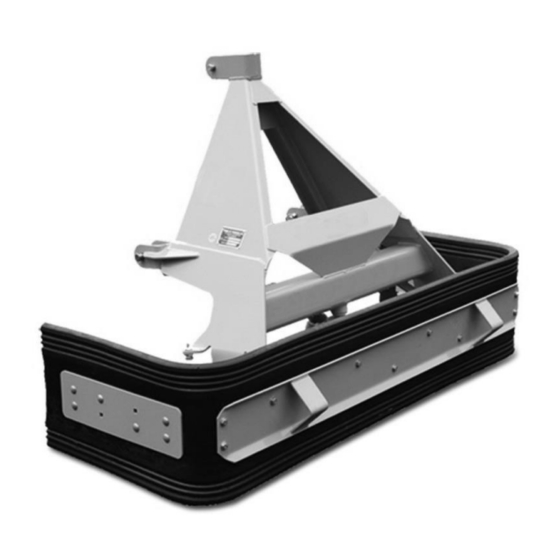

MACHINE DESCRIPTION & PURPOSE OF USE These machines which are commonly known throughout the agricultural industry as Yardscrapers are intended for use attached to an agricultural vehicle by means of the ‘three-point linkage’ couple up system; a quick hitch attachment is available as an extra. The machines, which have robust frames and hardwearing rubber blades, are designed for the sole purpose of scraping yards and lanes that have a reasonably flat surface. -
Page 13: Safety Information
SAFETY INFORMATION General safety rules: ▲ Always read and follow the instructions for the use and maintenance of the machine before carrying out any work operations or servicing tasks. ▲ Improper use of the machine is both highly dangerous to persons and damaging to the machine components –... - Page 14 No advice given here can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a long way towards the safe use of your McConnel machine.
-
Page 15: Vehicle / Tractor Preparation
VEHICLE / TRACTOR PREPARATION We recommend vehicles are fitted with cabs using ‘safety glass’ windows and protective guarding when used with our machines. Fit Operator Guard (part no. 7313324) using the hooks provided. Shape the mesh to cover all vulnerable areas. Remember the driver must be looking through mesh... -
Page 16: General Instructions
GENERAL INSTRUCTIONS 1. Attachment of the machine to the tractor should always be performed on a firm level site. 2. Before and during the maneuvering of the tractor to attach machinery or implements, make sure that no other persons are in the vicinity. Keep other persons well clear and make known your intentions, all the while keeping a sharp lookout whilst reversing and aligning the machines for coupling up. -
Page 17: Handling & Transportation
HANDLING & TRANSPORTATION OF THE MACHINE Suitable overhead lifting gear should be used to move or handle this machine safely. The machine can be attached to the lifting gear using a chain, rope or lifting strap providing it is of sufficient strength to support a weight in excess of the machines total weight. Lifting tackle should be securely attached to the correct lifting point on the machine as indicated in the photo below. -
Page 18: Set Up Instructions
M402 & M452 YARDSCRAPERS – ‘SETTING UP’ INSTRUCTIONS 1. Attachment of the tractor to the machine should be performed on a firm level site. 2. Connect machine to three-point linkage of the tractor and couple up in the conventional manner using the correct link pins, spacers and linch pins. 3. -
Page 19: Maintenance
7. Swing the base scraping section up and over through 180°, this will now put the machine into rear scraping mode, repeat the previous adjustment procedure to the same dimensions, but this time using the front pair of adjustment screws (refer below). Once completed the machine will be set for both forward and reverse scraping, no further adjustment should be required providing the tractor and top link length remain constant. - Page 20 YARDSCRAPERS Models: M402G & M452G Parts Manual...
- Page 21 YARDSCRAPER – Model M402G McCON NEL Module(s): M402G...
- Page 22 YARDSCRAPER – Model M402G McCON NEL Module(s): M402G REF. QTY. PART No. DESCRIPTION M402G YARDSCRAPER - Model M402G 175.018 REAR CLAMP 175.019 SIDE PLATE 175.021 LOCKING PLUNGER 175.040 HEADSTOCK 175.041 PIVOT PIN 175.043L WING (LEFT) 175.043R WING (RIGHT) 175.044 MAIN FRAME...
- Page 23 YARDSCRAPER – Model M452G McCON NEL Module(s): M452G...
- Page 24 TRIP ROPE 9213135 BOLT T120014 LOWER LINK SLEEVE (CAT 1-2) T190050 TOP LINK SLEEVE (CAT 1-2) 175.026 RUBBER T410201 DECAL - GREASE GUN 1291157 DECAL-MCCONNEL ROUNDEL 1335246 SERIAL No. PLATE 7103230 POP RIVET 9313087 SETSCREW 9163005 NYLOC NUT 9313107 SETSCREW T2724...
- Page 26 McConnel Limited, Temeside Works, Ludlow, Shropshire SY8 1JL. England. Telephone: 01584 873131. Facsimile: 01584 876463. www.mcconnel.com...
