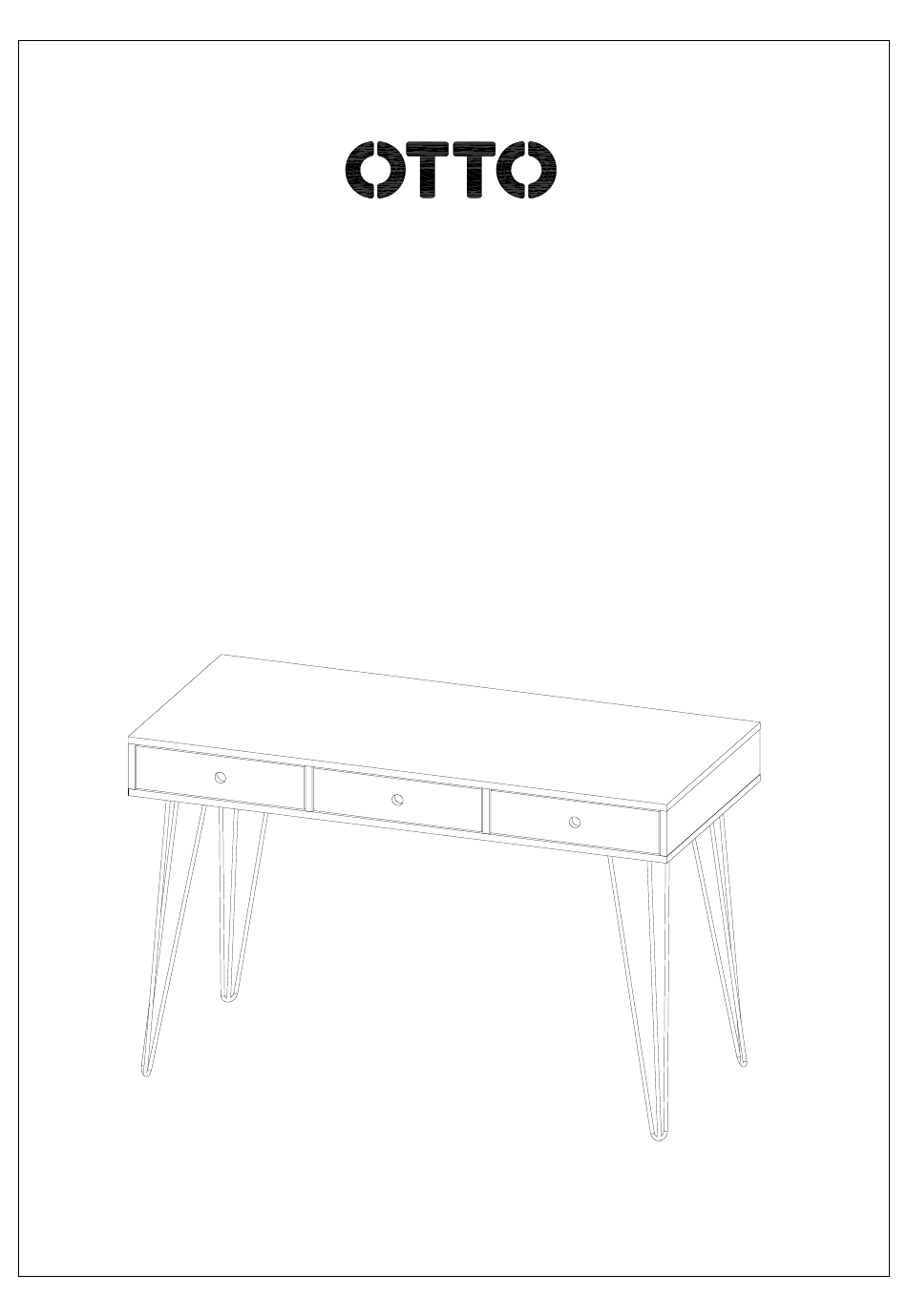

- Page 1 Assembly Instruction KRONBORG DESK 2CTN KRONBORGXX P:1/11...
- Page 2 Important Estimated Assemble Time: 60 min MORE THEN ASSEMBLE 1 PERSON ON A CLEAN, IS REQUIRED FLAT SURFACE TO SAFELY ASSEMBLE THE ITEM MORE THEN 1 PERSON HOTLINE ASSEMBLE ON A CLEAN, IS REQUIRED TO SAFELY FLAT SURFACE ASSEMBLE THE ITEM Tools Required For Assembly P:2/11...
- Page 3 Panel List P:3/11...
- Page 4 Hardware List Ø15×12mm Ø8×30mm 6.3×45mm 7×38mm 6×12mm ×23pcs ×23pcs ×16pcs ×11pcs ×16pcs 4×35mm L=400mm 3.5×14mm ×1pc ×24pcs ×12pcs ×6sets P:4/11...
- Page 5 Step 1 ×6 I×6 Step 2 ×3 B×12 P:5/11...
- Page 6 Step 3 ×3 A×12 Step 4 Please hand tighten this ×3 with screwdriver! H×12 P:6/11...
- Page 7 Step 5 ×3 I2×6 G×12 Step 6 A×11 C×8 P:7/11...
- Page 8 Step 7 B×11 Step 8 Please hand tighten this with screwdriver! P:8/11...
- Page 9 Step 9 Please hand tighten this with screwdriver! Step 10 I1×6 G×12 P:9/11...
- Page 10 Step 11 C×8 Step 12 D×11 F×1 P:10/11...
- Page 11 Step 13 E×16 F×1 Step 14 Maximum Load Capacity: Desk top: 40kg Drawer: 5kg Note:Move the sliding part as shown above to the front end on both sides before inserting the drawer. This will assist for easier assembly Remark: If you want to remove drawer,simultaneously press plastic levers on both sides and pull drawer outward.
