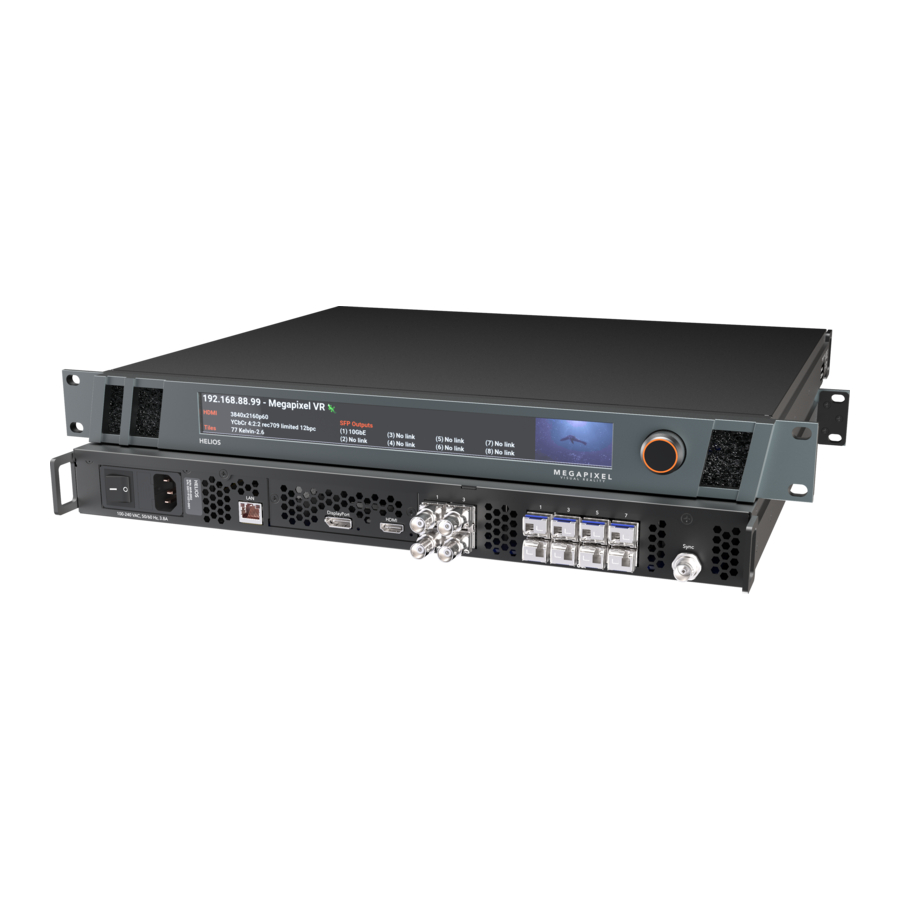

HELIOS®
LED Processing Platform
Quickstart Guide
HELIOS v.21.05.0
May 7, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HELIOS and is the answer not in the manual?

Questions and answers

Related Manuals for megapixel HELIOS

Summary of Contents for megapixel HELIOS

  • Page 1 HELIOS® LED Processing Platform Quickstart Guide HELIOS v.21.05.0 May 7, 2021...
  • Page 2 H2VR HoldCo, Inc. Other trademarks and trade names may be used in this document to refer to products by other entities. Megapixel VR claims no proprietary interest in trademarks and trade names owned by others.

  • Page 3: Table Of Contents

    Table of Contents Power Data WebUI Login Mapping Input Selection Test Patterns HELIOS Indicators Display Tile Indicators HELIOS LED Processing Platform - Quickstart GUIDE...

  • Page 4: Power

    HDMI 100-240 VAC, 50/60 Hz , 3.8 A Connect to the processor via the system control LAN. This can be done directly with a laptop or for larger systems, with a wireless router. HELIOS LED Processing Platform - Quickstart GUIDE...

  • Page 5: Webui

    Safari. The computer running Chrome or Safari must be configured to be on the same LAN as the HELIOS Processor. The IP address of the processor is reported on the front display. Type the HELIOS IP into the search field of a Chrome or Safari browser.

  • Page 6: Mapping

    / top down (viewed from the front of the display). HELIOS will automatically recognize connected tiles and stack all tiles on top of each other at the 0,0 position on the map. This helps get an image on all tiles, but it will be the same duplicate image.

  • Page 7: Input Selection

    Input Selection HELIOS will remain on the last valid input that was selected. To change the selected input, navigate to the Input pane and select an input from the drop down. HELIOS LED Processing Platform - Quickstart GUIDE...

  • Page 8: Test Patterns

    HELIOS systems can display two types of test patterns: • Tile test patterns - recalled from the onboard memory of tiles. • Video patterns - recalled from the onboard memory of HELIOS. Tile test patterns are found on the Mapping pane under the Tile configuration accordion.
  • Page 9 Test Patterns (continued) Video patterns can always be found on the bottom left of the Global pane under Video Patterns. HELIOS LED Processing Platform - Quickstart GUIDE...

  • Page 10: Helios Indicators

    HELIOS Indicators HELIOS units have several small LED indicators on the rear of the units. Below are tables explaining what each means. VFMC Cards - Next to each VFMC video input connector is a small LED that indicates the status of each VFMC input link.
  • Page 11 SFP+ Inputs SFP+ Outputs SFP+ Inputs - Four (4) SFP+ slots provide copper SDI inputs. Each input requires a Megapixel 12G SFP+ and supports formats up to 12G SDI. Indicators on each SFP+ show the status of the input. Indicator Color...

  • Page 12: Display Tile Indicators

    Cyan Booted into safe mode Green Ready (No network connection) Blue Single Flash No HELIOS connection (1 tile link active) Blue Double Flash No HELIOS connection (2 tile links active) Blue Solid Connected to HELIOS (Normal operation) Internal Pattern (press and hold center button 4 seconds to enter and Yellow leave this mode).
