Summary of Contents for Dual XD6150

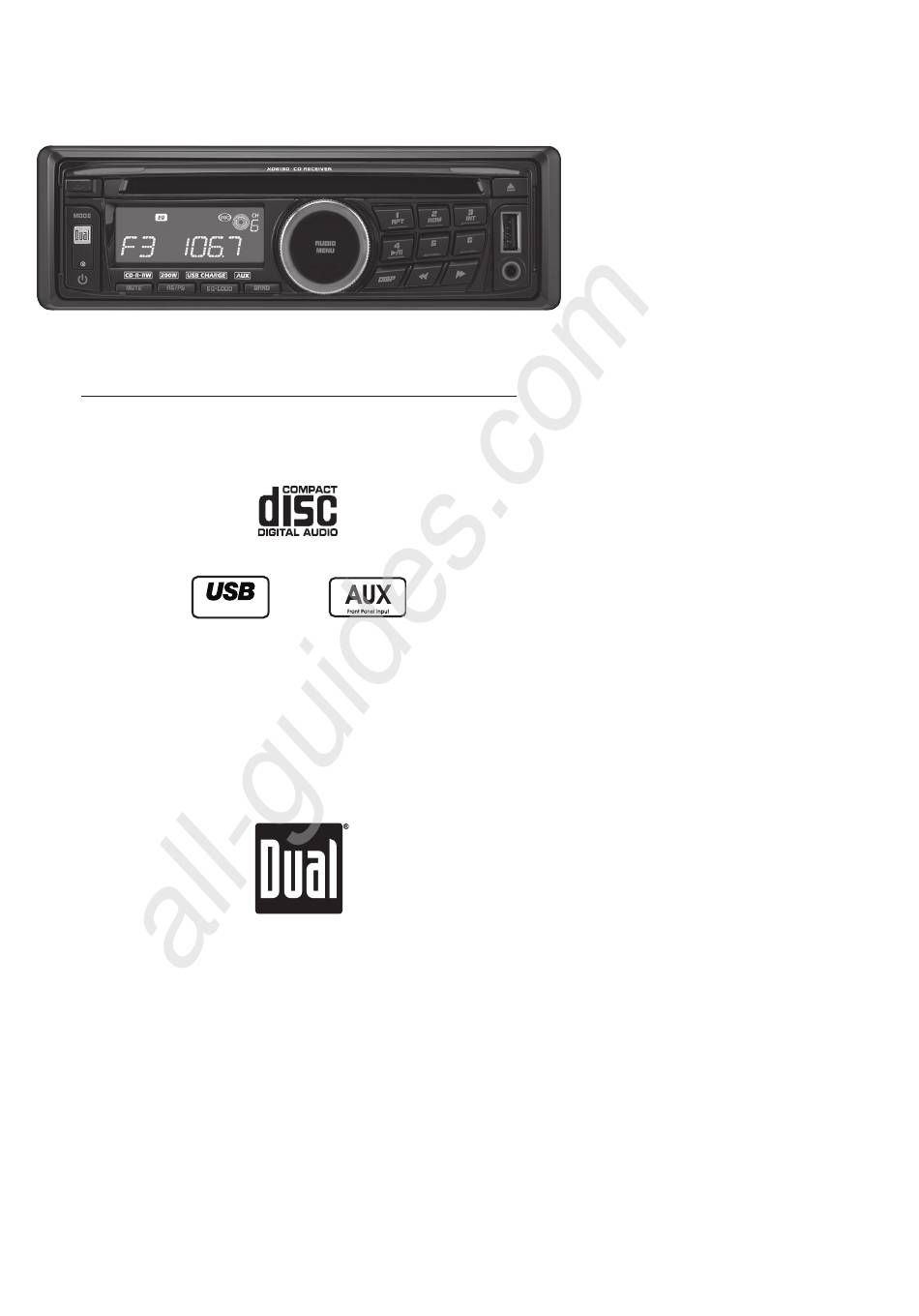

- Page 1 All manuals and user guides at all-guides.com XD6150 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with 3.5mm Auxiliary Input, USB Charging Port and Detachable Face Charge Port...
- Page 2 All manuals and user guides at all-guides.com XD6150 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
Right Front Right Rear Using an incorrect fuse Gray/Black (-) Violet/Black (-) could damage the radio. Gray (+) Violet (+) The XD6150 uses one 10 amp AGC fuse located in-line. Left Front Left Rear White/Black (-) Green/Black (-) White (+) -
Page 4: Control Locations - Receiver
Power ( ) Eject The XD6150 has an easy-to-use interface that provides a rewarding experience, as well as support for your favorite tunes. Audio CD-R and CD-RW disc playback ensures compatibility with your music collection, and the RCA preamp output provides the right connections to expand your system. -
Page 5: Control Locations - Remote
All manuals and user guides at all-guides.com XD6150 OPERATION Control Locations - Remote Power ( ) Preset 6 Audio/Menu Preset 5 Volume Up Mode Display Tune/Track Up Mute Volume Down Preset 4/Play/Pause Auto Store/Preset Scan Preset 1/Repeat Preset 3/Intro Band Tune/Track Down Preset 2/Random... -
Page 6: General Operation
All manuals and user guides at all-guides.com XD6150 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-Permanent Remove trim ring and install supplied #1 x 7/32” Phillips Faceplate Installation... -
Page 7: Setup Menu
All manuals and user guides at all-guides.com XD6150 OPERATION General Operation With the unit on, press and hold DISP until the clock begins to Set the Clock flash, then release. Press TUNE to adjust the hours and TUNE to adjust the minutes. Press DISP momentarily to save the selected time. - Page 8 All manuals and user guides at all-guides.com XD6150 OPERATION General Operation Audio Press AUDIO/MENU momentarily to select between Volume (default), Bass, Treble, Balance and Fader. VOLUME BASS TREBLE BALANCE FADER Bass Press AUDIO/MENU until BAS appears. Rotate the volume knob left/right to adjust (-6 minimum / +6 maximum).
-
Page 9: Am/Fm Tuner Operation
All manuals and user guides at all-guides.com XD6150 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek the next strong station. Manual Tuning Press TUNE or TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. -
Page 10: Cd Player Operation
All manuals and user guides at all-guides.com XD6150 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation (AM/FM or AUX). -
Page 11: Troubleshooting - General
All manuals and user guides at all-guides.com XD6150 OPERATION Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect Check connections for proper Unit will not turn voltage. Red wire not connected or voltage (11~16VDC) on incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 12: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 13: Specifications
All manuals and user guides at all-guides.com XD6150 OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner... -
Page 14: Fcc Compliance
All manuals and user guides at all-guides.com XD6150 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 15 All manuals and user guides at all-guides.com XD6150 NOTES...
- Page 16 All manuals and user guides at all-guides.com Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA0509-V01...
