Eloise Queen Assembly Instructions
Hardware included in side rails carton .
A
D
Φ10 MM
Φ6 MM
4PCS
3PCS
M
Φ6*40 MM
3PCS
1

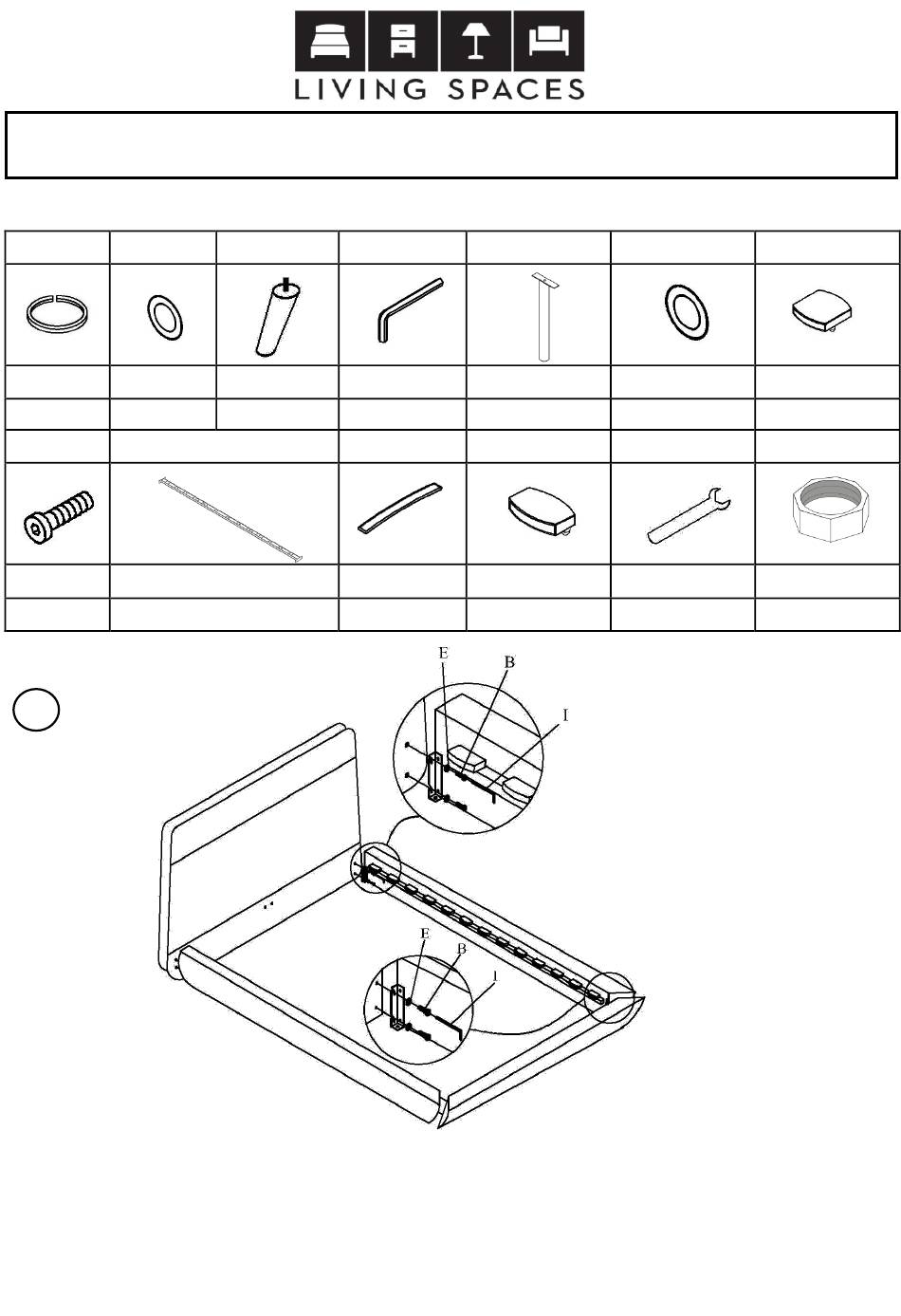

Step#1
Loosen Bolts (B) and Washers (E), which are pre-fitted into edges of headboard and
footboard, clip side rail bracket over the bolt and re-tighten using Wrench (I).
CONGRATULATIONS ON YOUR NEW BED PURCHASE
~Warning：do not move bed after final assembly as it may result in damages to floor and/or bed.~
F
Φ8*70 MM
H=20CM
4PCS
O
1PC
26 PCS
I
J
H=22.5CM
1PC
3PCS
P
Q
26 PCS
L
Φ10 MM
4PCS
Y
1 PC
*Bolt B and Washer E
are factory installed*
N
13PCS
Z
Φ10 MM
4 PCS
