Internal devices

11. Internal devices

11.1. Network adapter (10/100/1000)

The MTC 6 is equipped with a 10/100/1000 Mbit network adapter. This adapter can be accessed via the bottom of the device
and offers an RJ45 connection jack.
The RJ45 connection port features two integrated status LEDs.
They display the following messages.
11.1.1.

MTC 6 Intel

Left LED (green)
LED off: not connected
LED on: connected
11.1.2.

MTC 6 AMD

Left LED (green)
LED off: not connected
LED flshes; activity
LED on: connected
11.1.3.

Problems with data transmission via LAN/Ethernet

If problems occur during data transmission over LAN/Ethernet (e.g. data is lost or not detected), the cause of these problems
may be a cable which is too long.
Depending on the cable layout and interference from the environment, it may be impossible to use the cable length of 100 m
given in the specification (IEEE 802.3 standard).
The solution here is the use of a shorter cable.
60
RJ45 network port

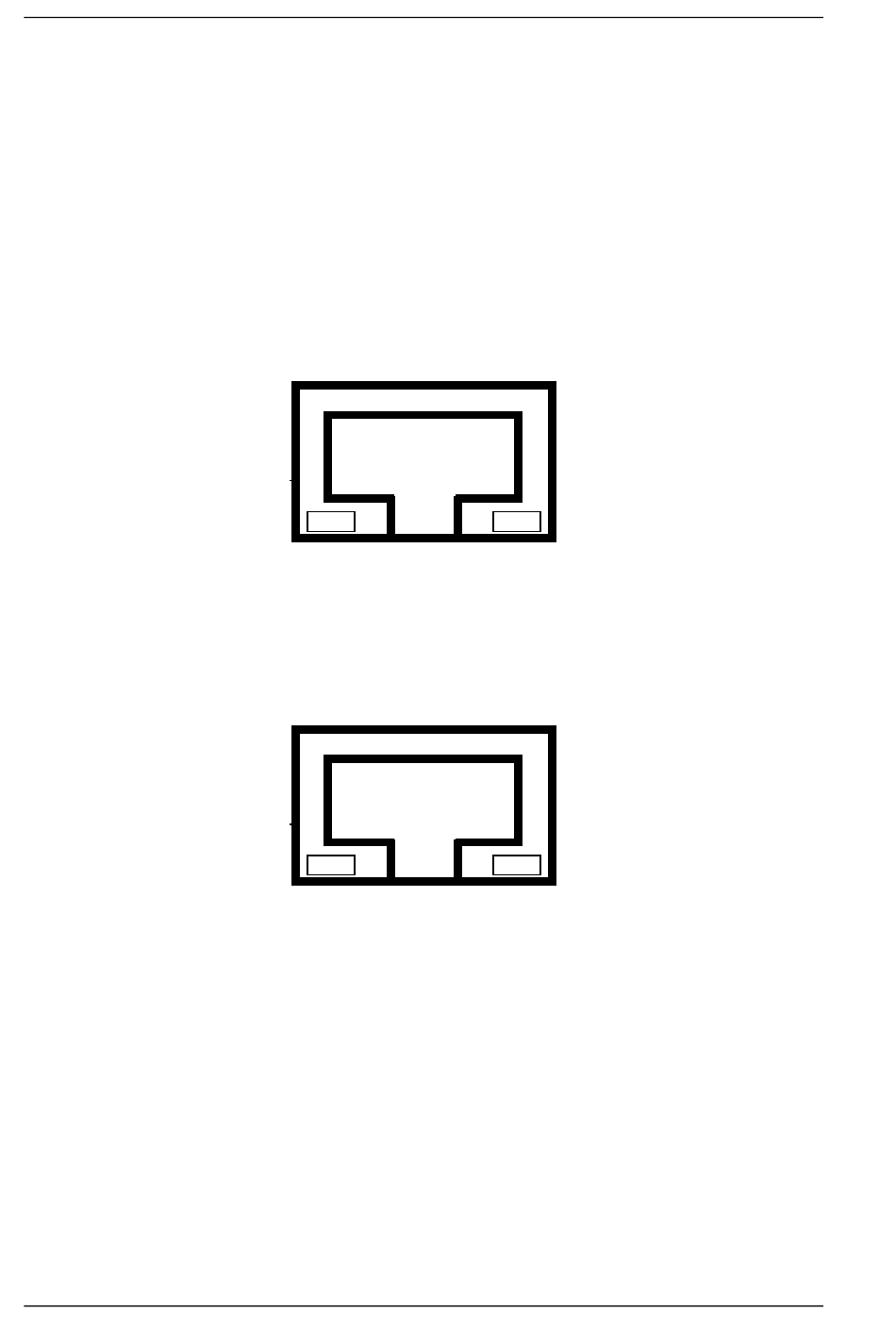

Figure 11.1: RJ45 network port of MTC 6 Intel

RJ45 network port

Figure 11.2: RJ45 network port of MTC 6 AMD

User's Manual V3.10
Right LED (orange):
LED off: no activity
LED flashes: activity
Right LED has no function.
