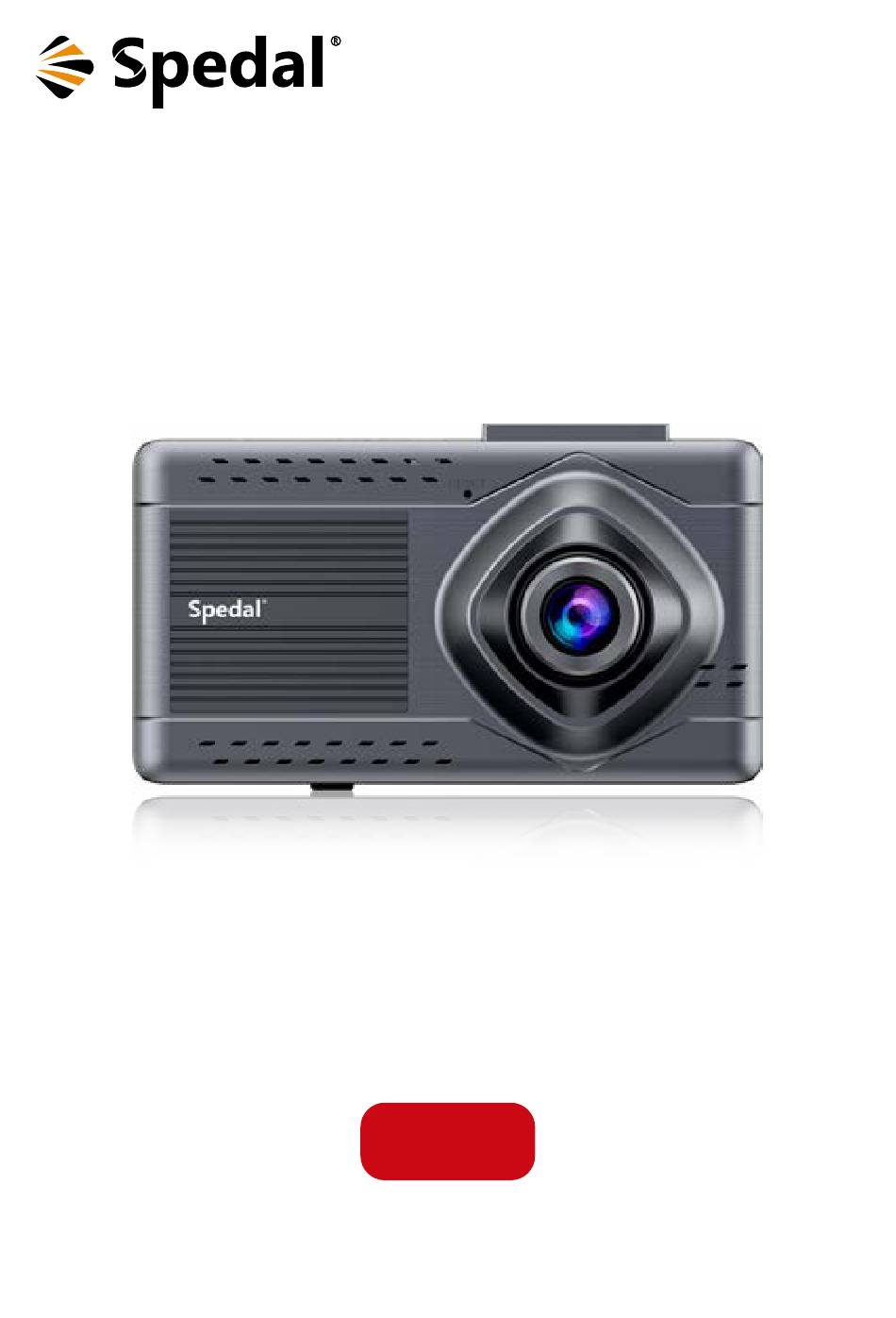

- Page 1 USER MANUAL MULTIFUNCTIONAL DASHCAM CL586 004C1907-EN...
-
Page 2: Table Of Contents
If you encounter any problems when reading this manual or using the product, please do not hesitate to contact us: support@spedaltech.com CONTENT 1. DISCLAIMER AND SAFETY GUIDELINES ��������01 1.1 Disclaimer ������������������������������������������������������������������������������01 1.2 Safety Guidelines ���������������������������������������������������������������02 2. ACCESSORIES AND INTERFACES �����������������������03 2.1 In the box ��������������������������������������������������������������������������������03 2.2 Product Diagram... -
Page 3: Disclaimer And Safety Guidelines
You must strictly follow Spedal's guidelines to install and use the product, and never use parts that are not provided or recommended by Spedal. Before assembling, setting up and using, be sure to visit the official website of Spedal (http://www.spedal.cc) to download the "User... -
Page 4: Safety Guidelines
1.2 Safety Guidelines 1�2�1 Warnings ● Please use the original cable and power cords only; ● Do not exceed the rated voltage when using the device; ● Do not install or operate the device with wet hands; ● Do not install the device in places of high temperature, humidity. ●... -
Page 5: Accessories And Interfaces
2. ACCESSORIES AND INTERFACES 2.1 In the box Before using this product, please check whether the product package contains all of the following items. If anything is missing, please contact Spedal or your local agent. ● Multifunctional radar detector ● In-Car charger ●... -
Page 6: Product Diagram
2.2 Product Diagram GPS Input TF Card Slot AV-IN Mount Locking Clip USB / Power Input Touch screen Reset button Loudspeaker heat-dissipating metal sheet Adjustable camera Power button Notice: When the function Carlink is activated, the projection chip and the drive recording chip will work at the same time� The surface temperature of the heatdissipating metal sheet can reach as high as 60 ℃... -
Page 7: Installation Guideline
2.3 Installation Guideline The device is in the storage state when it leaves the factory. Please follow the steps below to prepare for installation. 1. Take the device and its accessories out of the box or plastic bag; 2. Tear off the protective film on the screen and lens of the device if there is any; 3. - Page 8 2�3�2 Card Installation Install the TF card in the TF socket with the pins facing upwards. Push the TF card forward, and the card can be removed after it pops out. Please use the 32GB TF card that comes with the product. A third-party TF card should meet these requirements: Class 8 or above, maximal 128GB.
- Page 9 2�3�3 lnstallation Method 1. Aim the magnetic transfer slide buckle at the mount buckle on the device. 2. Hold the device and chuck bracket with your hands, and aim the mount at the chuck bracket on the device. 3. Select a proper position (such as the center of the rearview mirror), attach the suction mound to the windshield and rotate the mount clockwise to lock.
-
Page 10: Interfaces Introduction
2.4 Interfaces Introduction 2�4�1 Main Interface 12:00 08-08 Sunday Carlink Dashcam Playback Settings Time & Date: The time and date can be set in the settings. Settings: General settings of the device. Carlink: Carlink to project your mobile phone onto the dashcam. Dashcam: Photo and video shooting during drive process. -
Page 11: Functions And Settings
3. FUNCTIONS AND SETTINGS 3.1 General Settings Click “Settings” on the main interface to enter “General Settings”. Screen saver 12:00 Time setting 08-08 Sunday Resolution Video duration Gravity sensor Click to return to the main interface. Scroll to see all subcategories. ●... - Page 12 ● Gravity sensor Default is Off. Sensitivity of the Gravity sensor (G-Sensor). Emergency videos activated by collision will be locked and can not be overwritten. Options: Off / High / Low ● Park Monitoring Default is Off. Auto video recording for 1 minute when car is parked and sensed collision. Emergency videos activated by collision will be locked and can not be overwritten.
-
Page 13: Carlink And Its Settings
1. Disconnect your mobile phone to any other WIFI; 2. Keep the WIFI option on your mobile phone “ON”; 3. Find the device WIFI “Spedal-Carlink” on your mobile; 4. Enter the WIFI password to connect to the wifi; 5. Open the “Projection” or “Screen Mirroring” on your mobile phone;... -
Page 14: Drive Recording And Its Settings
3.3 Drive recording and its settings Click “Drive Recording” on the main interface to enter the dashcam interface. Video Length Lock File Status Audio Recording Status Settings - Time 1080P 2020-05-16 07:03:21 00:00:00 Settings - Resolution Switch Front And Rear Camera Settings Lock File Return... -
Page 15: Fm And Its Settings
3.4 FM and its settings Before using this function, please ensure at first that your mobile phone has been connected to the dashcam through Carlink(refer to 3�2 Carlink and its settings) and screen and sound synchronization have begun properly� FM transmitter technology allows you to launch specific FM frequency - 91.0MHZ from the dashcam. -
Page 16: Playback And Its Settings
3.5 Playback and its settings 3�5�1 Playback Interface File Preview, Click To Expand Current Page / Total Page Selected File In Red 01/13 FILE200516-083422-000103F.TS Return FILE200516-083321-000102F.TS FILE200516-083221-000101F.TS Unlocked FILE200516-083121-000100F.TS Locked Videos FILE200516-083021-000099F.TS FILE200516-082920-000098F.TS Photos FILE200516-082820-000097F.TS FILE200516-082720-000096F.TS Switch Files Of Front/rear Unselected File In White 3.5.2 Expanded file Video Sequences... -
Page 17: Appendix
4. APPENDIX 4.1 Specifications Display 5.0" full view IPS LCD screen Aperture F#1.8 Resolution 1080P Angle 120° Mini USB 2.0 Video format Photo format JPEG Storage device TF card (Max support 128GB) Operating temp� -20℃ ~65℃ Storage temp� -30℃ ~75℃... -
Page 18: Warranty
4.2 Warranty Thank you for purchasing the Spedal multi-function driving recorder. This product has a powerful driving record function, and at the same time you can project your mobile phone interface to the driving recorder in real time. This product is a major breakthrough in the technology of driving recorders in the industry.
