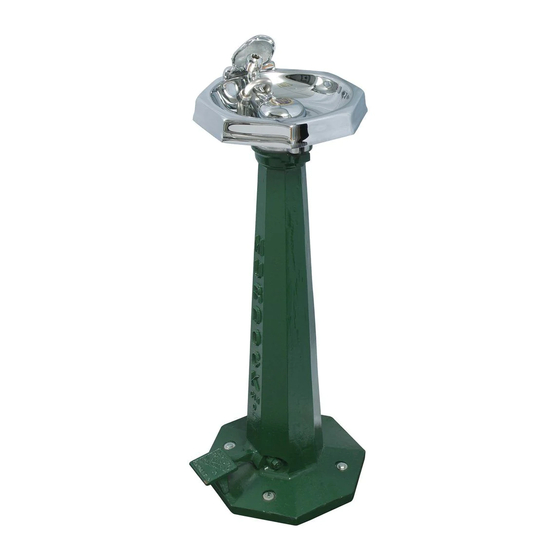

Model M-30 is a drinking fountain of classic
design. The control valve is located below the
frost line to provide antifreezing functionality.
Activating the pedal raises or lowers the inter-
nal supply-line and waste-tube assembly,
controlling the valve. Constructed with all
brass parts and a stainless-steel mainspring,
model M-30 is equipped with automatic stream
control for year-round use. The M-30 is de-
signed for trouble-free reliability and easy
maintenance.
c
Suggested specifications
Drinking fountain shall be Murdock
model M-30. Unit shall be capable of
year-round use in freezing or inclem-
ent weather.
Pedestal shall be fabricated of heavy,
one-piece iron casting extending from
grade line to bowl, forming predomi-
nantly octagonal horizontal section,
and finished with a heavy grade of
oil-based paint.
Bowl shall be octagonal, chrome-
plated, solid-brass casting with outer
edge at least 8 1/
inches from center
2
of bubbler outlet. Drain opening in
bowl shall be fabricated of chrome-
Approved
Model M-30 9/15/93
plated, solid-brass casting and shall
be adequately protected from
stoppage or vandalism. Bubbler shall
be chrome-plated, solid-brass casting
with outlet near outer edge of bowl
and above bowl rim. Mouthguard
shall be chrome-plated, solid-brass
casting, mounted on outer edge of
bowl to meet sanitary requirements.
All solid-brass castings shall consist
of 85-5-5-5 brass metal and shall
conform to ASTM standards B61 and
B62.
Valve shall be foot-pedal operated,
spring-loaded to close. Pedal shall
Model M-30
Antifreezing Drinking Fountain
consist of aluminum bronze. Main-
spring shall be stainless-steel wire
with a minimum diameter of .225
inch.
A Member of
Acorn Engineering's
Family of Companies
(513) 471-7700
Fax (513) 471-3299
2488 River Road
Cincinnati, Ohio 45204
www.murdockfountains.com
Please visit
e-mail: murdock@fuse.net
MURDOCK-SUPER SECUR
15125 Proctor Avenue
City of Industry, CA
91746 USA
Phone 800-453-7465
626-333-2543
Fax 626-855-4860
www.murdock-supersecur.com
for most current specifications.
