SLATTED DINING PERGOLA
INSTRUCTIONS
We recommend using the following tools (NOT SUPPLIED):
Tape
Pozidrive
Screwdriver
Measure
It is vital that you build your new pergola on a level ground in your desired location.

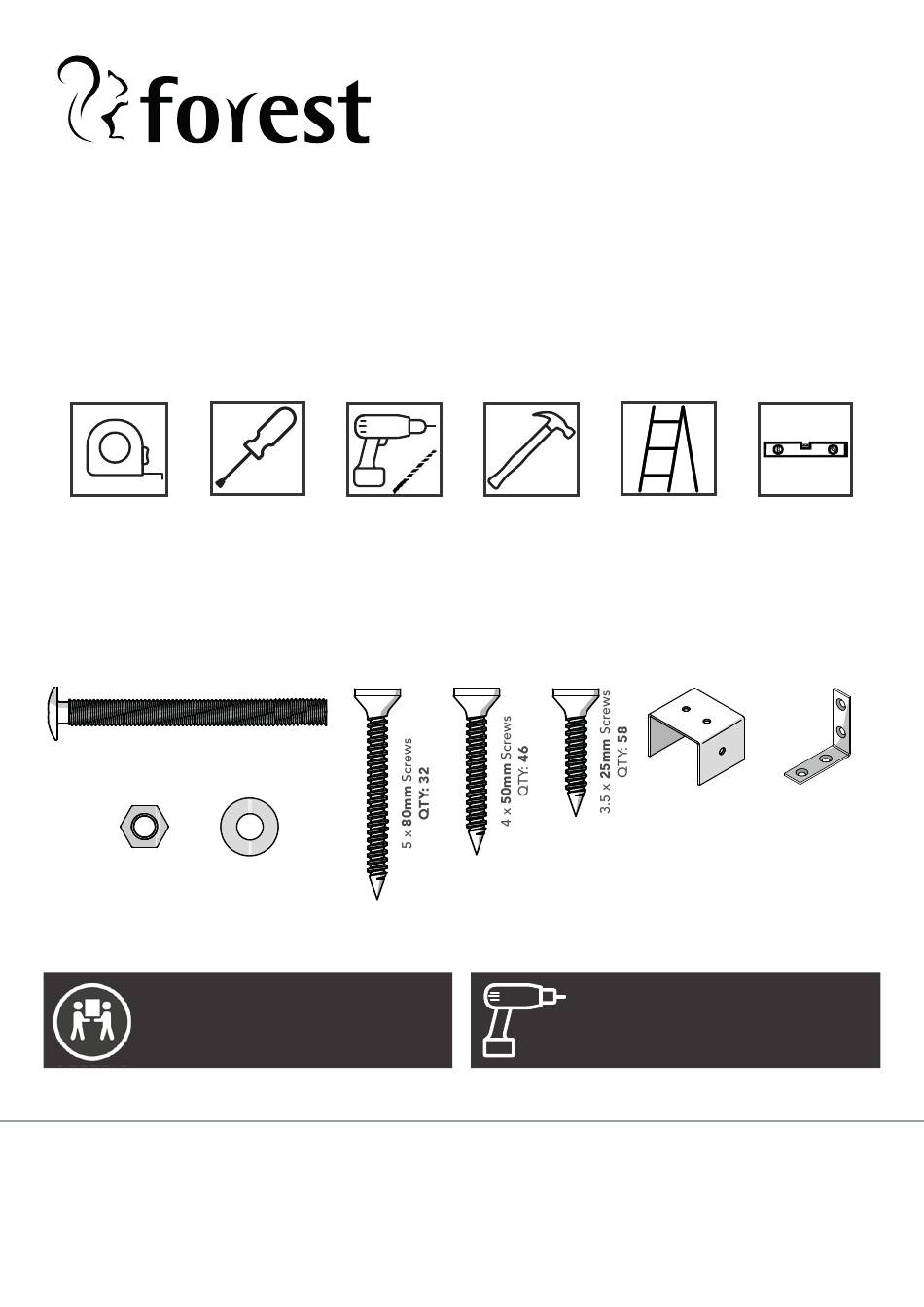

FIXING PACK CONTAINS:
FIXING PACK CODE: DINPERGFP
120mm Coach Bolts
QTY: 8
Nut
Washer
QTY: 8
QTY: 8
PLEASE KEEP PLASTIC BAGS AND SMALL PARTS AWAY FROM CHILDREN
IMPORTANT
Assembly requires 5+
adults.
THE ROOF OF THIS PERGOLA IS NOT A LOAD BEARING STRUCTURE
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
Drill & 2mm
Hammer
Drill Bit
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
Ladder
U-Brackets
QTY: 10
REMINDER
Always pre-drill before
screwing.
ISSUE: 0121
Spirit Level
50mm L-Brackets
QTY: 2
Advertisement
Table of Contents
Related Manuals for Forest SLATTED DINING PERGOLA
Summary of Contents for Forest SLATTED DINING PERGOLA
- Page 1 THE ROOF OF THIS PERGOLA IS NOT A LOAD BEARING STRUCTURE Missing something or need more information? Visit our website for spare instructions and more information Call our aftersales team on 0333 321 3142 www.forestgarden.co.uk Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB...
- Page 2 PREPARATION We strongly advise that you anchor your pergola down with either fixtures shown below to enhance stability. You will need to purchase these separately. Apply each fixture to each leg before fully constructing your pergola. 130mm of your post will be supported within the fixture. FOR GRASS/SOIL (SOFT SURFACES) Easy-Fit Fencefast...
- Page 3 25mm ROOF RAFTER Fix two Roof Rafters, to the U-Brackets, with one at each end. Position with a 25mm overhang at each end of the Roof Rafter before securing into place. ROOF RAFTER ROOF RAFTER ROOF RAFTER ANGLED BRACE Secure the Angled Braces to the end Roof Rafters just Position and secure the other Roof Rafters to the U-Brackets using 25mm screws.
- Page 4 SLATTED PANEL FRONT/BACK FASCIA SLATTED PANEL Attach the Front/Back Fascia to the Roof Rafters, using 2 x Secure the Slatted Panels to all Rafters. Use 3 x 80mm screws 80mm screws per end. Ensure the fascia is flush to the top of at each end to fix to the Post Rafter and secure to the Roof the Roof Rafter.
- Page 5 CHECK YOU HAVE ALL YOUR PARTS. (The parts do not have codes on them. They are listed below should you need to order one.) The components provided may be heavy. Please lift with caution and with a minimum of 2 people. Dining Pergola (DINPERG) Label Description...
