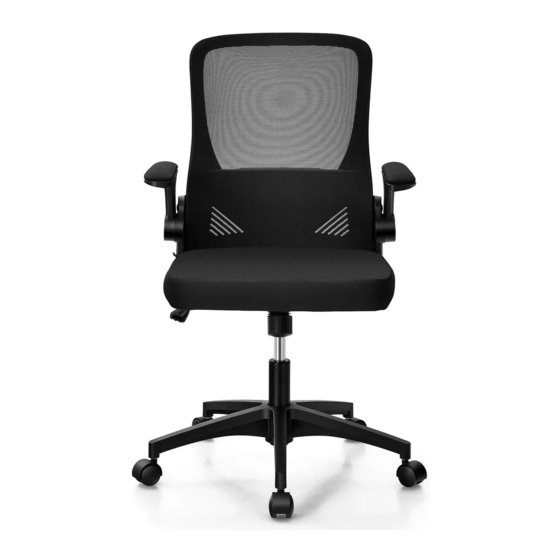

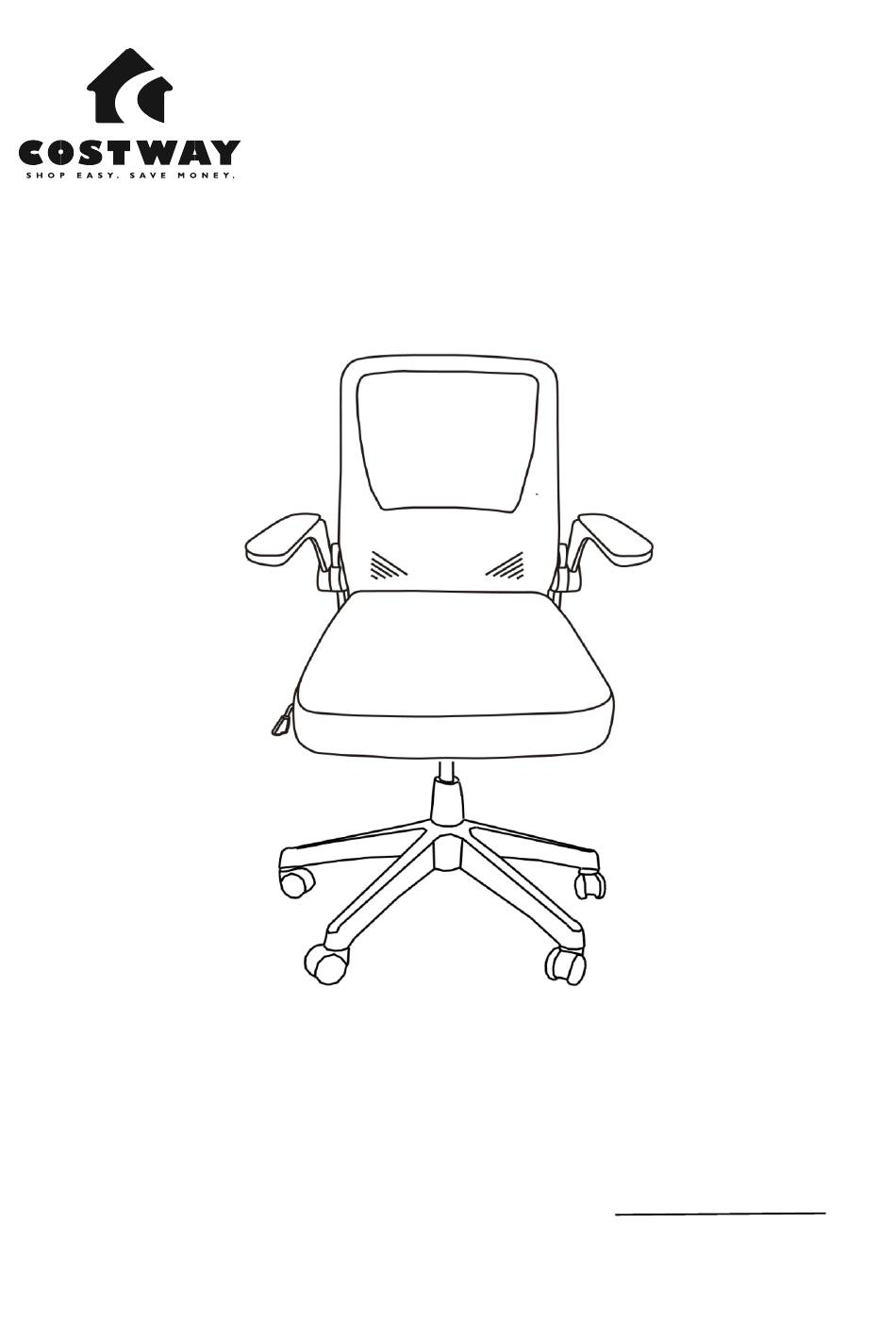

- Page 1 USER'S MANUAL OFFICE CHAIR CB10171 １...
-
Page 2: Safety And Compliance
○ ○ ○ ○ ○ ○ ○ Safety and Compliance ◆ Please wear the gloves when assembling ,avoid scratching your hands. ◆ Please take the bolts out carefully. ◆ Please read the instructions completely before assembly. ◆ Remove all parts from the carton and ensure all parts are included prior to assembly. - Page 3 Contents Make sure that the package contains the following parts ○ ○ ○ A Back cushion (1) B Seat cushion (1) C Arms (2) ○ ○ E Gas lift (1) ○ D Mechanism (1) F Star base (1) ○ ○ ○...
- Page 4 Assembly Instructions Step 1: Turn the star base upside down,then press the casters into the holes at the end of each. Steps 2:Turn the star base upright and insert the lift with cover into the center hole of the star base.(The gas lift cover has been removed when products leave the factory.) ４...
- Page 5 Step3: When one hand presses the cushion, the other hand turns the back up at the same time. When the sound of clicking is heard, it means that the back is fixed. (Please note that the back cushion (A) , seat cushion (B) and arms (C) have been assembled.
- Page 6 Steps 5:Turn the seat cushion upright and align the center hole of the mechanism over the seat ,then push the seat cushion down onto the lift firmly until the connection is secure. Caution: For your safety,before using your chair, make sure that all of the bolts are fully tightened.
- Page 7 Adjustments Adjusting the seat height ●To raise your seat, lean forward to lift your body weight from the ○ seat,then pull down the control handle ○ ●To lower the seat, pull down the control handle K while you‘re seated. ○ ７...
- Page 8 To operate the tilt lockout. ● To let your chair tilt back ,pull the control handle K out. ○ ● To stop your chair from tilting ,sit forward ,then push the control handle ○ K in. ● When tilt back all the way,you need to pull the tilt control handle out,then you can tilt back all the way.
- Page 9 Adjust the back fold ○ ● When you want to fold the back, press the two L keys on the handle with both arms at the same time, and then press the back toward the cushion. ● When you want to return the back to normal, turn the back up. When you hear the click, the back has been firmly fixed.
-
Page 10: After Sales Service
After-Sales Service How to remove and replace office chair and mechanism. 1. Hammer the mechanism (see pictures) 2.Hammer the gas lift(see until the 5-star base falls down. pictures) until the gas lift falls down. 3.Insert the gas lift into 5-star base, 4.Finish. - Page 11 JAPAN SPAIN AUSTRALIA With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
