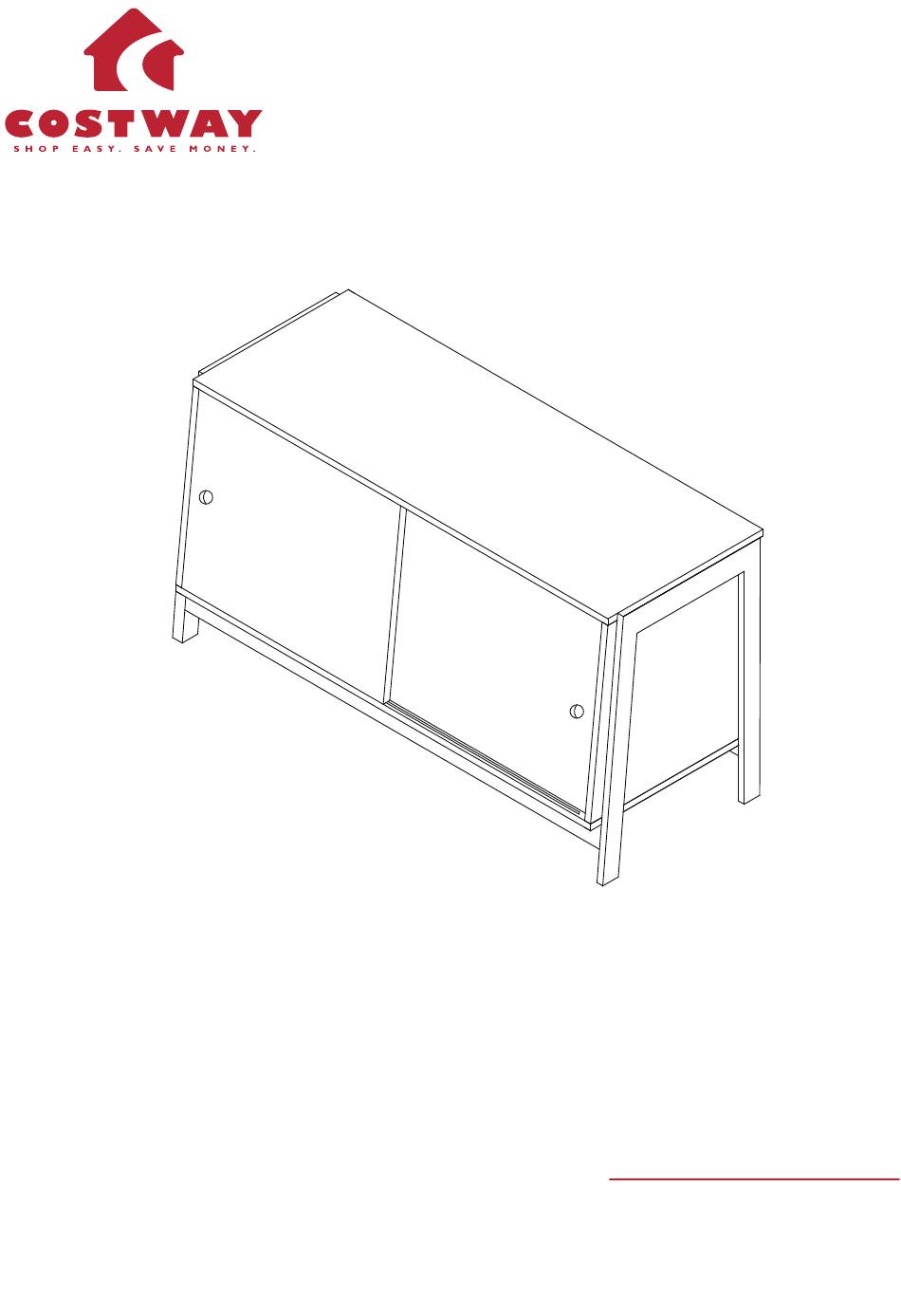

- Page 1 USER'S MANUAL TV Stand HW64004...
-
Page 2: Parts List
PRODUCT ASSEMBLY Hardware List 10 pcs 6 pcs 8 pcs 6*35mm 4*35mm 6*35mm 10 pcs 6 pcs 1 pc 4*45mm 15*10mm 20 pcs 16 pcs 6*30mm 2.5*12mm Parts List 1 pc 1 pc Top Panel Divide Panel 1 pc 2 pcs Bottom Panel Connect Bar 1 pc... - Page 3 PRODUCT ASSEMBLY Part List Assembly Overview...
- Page 4 PRODUCT ASSEMBLY 10 pcs Step 1 1) Lay Top Panel (1), Left Leg (3) and Right Leg (4) as shown on a flat and soft surface that does not scratch the parts. 2) Screw Cam-bolt (A) into the designated holes on each . 4 pcs Step 2 6 pcs...
- Page 5 PRODUCT ASSEMBLY 6 pcs Step 3 6 pcs 1) Attach Left Panel (5), Right Panel (6) and Divide Panel (7) to Top Panel (1) via Wood Dowel (C) and Cam-bolt on (1). 2) Insert Cam-lock (B) to the designated holes on (5, 6 &...
- Page 6 PRODUCT ASSEMBLY 2 pcs Step 5 2 pcs 4 pcs 1 pc 1) Attach Left Leg (3) to Connect Bar (8） via Wood Dowel (C) and Cam-bolt on (3). 2) Screw Bolt (G) to (3) through the hole on (5). Tighten it with Allen Wrench (H).
- Page 7 PRODUCT ASSEMBLY 16 pcs Step 7 Attach Back Panel (9) with Screw (F).
- Page 8 PRODUCT ASSEMBLY Step 7 Push the button to relief the door pin. If the door not firm, please screw the middle screw to adjust the height of the wheel as shown. Insert sliding door (10 & 11) to assembled unit as shown. Important: If the door not firm, please screw the middle screw to adjust the height of wheel as shown.
