Automist Smartscan

Hydra

Design, Installation,

Operation and Maintenance

(DIOM) Manual

Version 3.10.0

The Smartscan Hydra DIOM Manual is designed to provide

stakeholders with essential information regarding

specification, installation, maintenance, and commissioning

of the Automist fire protection device.

Table of Contents

Need help?

Do you have a question about the Automist Smartscan Hydra and is the answer not in the manual?

Questions and answers

Summary of Contents for Plumis Automist Smartscan Hydra

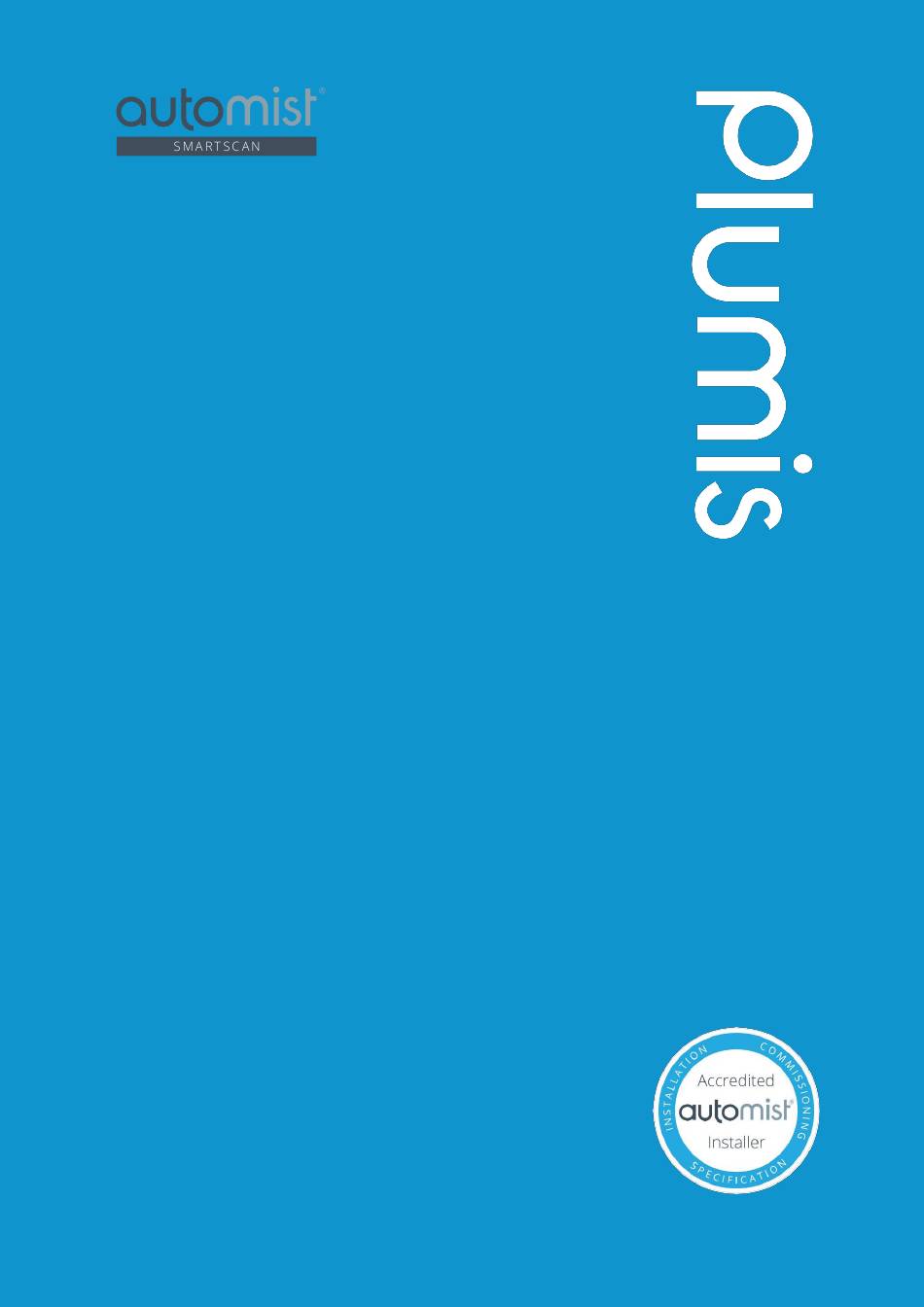

Page 1 Automist Smartscan Hydra ® Design, Installation, Operation and Maintenance (DIOM) Manual Version 3.10.0 The Smartscan Hydra DIOM Manual is designed to provide stakeholders with essential information regarding specification, installation, maintenance, and commissioning of the Automist fire protection device.
Page 2: Table Of Contents
DIOM Manual - version 3.01.0 ® S M A R T S C A N Contents INTRODUCTION TO AUTOMIST SMARTSCAN HYDRA ....................6 Introduction ................................7 Automist Smartscan Hydra ............................. 8 System Diagram ............................... 9 Water Supply Components (in required order) ....................10 Scope ..................................
Page 3 Stainless Steel Piping (alternative to high pressure hose) ................46 Hoses, Piping support ............................46 Detection Devices ..............................47 Compatible detectors/alarms ..........................48 Plumis Wireless Smoke Heat Alarm (DT01) ...................... 49 Pump with an output relay (AP10) ........................50 Integration with other alarm systems....................... 50 Domestic ..............................50 Residential ..............................
Page 4 ® S M A R T S C A N Plumis Wireless Smoke Heat Alarm (DT01) Installation and Battery replacement ........64 B) Second Fix - Installing the controller ....................... 65 C) Second Fix - Installing the sprayhead(s) and pump ..................66 D) Second Fix - Connecting the Water Supply .....................
Page 5 DIOM Manual - version 3.01.0 ® S M A R T S C A N Repair ..................................100 Troubleshooting ..............................100 Returning equipment to Plumis - RMA ......................105 Warranty ................................105 APPENDIX A ................................107 APPENDIX B ................................109 APPENDIX C ................................112 Example Design Specification ..........................
Page 6: Introduction To Automist Smartscan Hydra
® Automist Smartscan Hydra DIOM Manual - version 3.01.0 ® S M A R T S C A N INTRODUCTION TO AUTOMIST SMARTSCAN HYDRA Plumis Ltd Copyright © 2020. All Rights Reserved. Page 6 of 116...
Page 7: Introduction
The content in this manual may differ from the product and is subject to change without prior • notice. It is recommended to check you have the latest version of the DIOM from the Plumis website before proceeding. Follow all warnings, cautions and instructions contained in this manual.
Page 8: Automist Smartscan Hydra

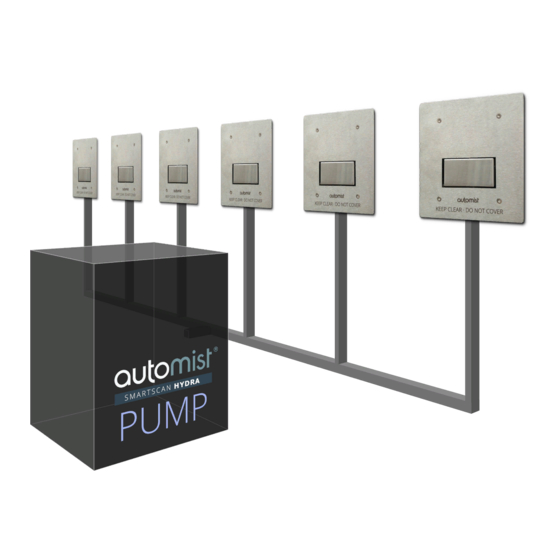

When triggered by a Plumis multi-sensor wireless alarm or a wired detector, all the linked sprayheads will begin scanning. They start measuring the temperatures within the room using an infrared sensor.
Page 9: System Diagram
® S M A R T S C A N System Diagram WRAS approved isolation valve Automist Smartscan Hydra supply label & cable tie WRAS approved ¾” single check valve (AC03) Filter (AC03) and bracket (P0001_D) PRV (P0001) (AC03) An optional hose is included in the kit for when the valve is too close to the wall ¾”...
Page 10: Water Supply Components (In Required Order)
PRV (PTFE on both sides for sealing) BSP ¾” nipple Washer Filter Washer vii. Hose v. Washer Pump Figure 2: Automist Smartscan Hydra System Water Supply Components Plumis Ltd Copyright © 2020. All Rights Reserved. Page 10 of 116...
Page 11: Scope
Smartscan Hydra when installed in residential and domestic dwellings. It primarily covers the systems use for life safety but might also provide property protection. Automist Smartscan Hydra has been independently, third party tested by Exova Warrington Fire to confirm that it meets the performance requirements of BS 8458 2015, as validated by BSI Verification Certificate VC 71258.
Page 12: Compliance To Bs 8458
8.1 – Inspecting and testing See page 94 after commissioning and whilst in service 8.2 – Reinstatement of the See page 94 system 8.3 – Logbook Alternative See page 84 Plumis Ltd Copyright © 2020. All Rights Reserved. Page 12 of 116...
Page 13: Roles And Responsibilities
They must update the design if the Commissioner Installer identifies any inaccuracies on site which may negatively affect the performance of the system. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 13 of 116...
Page 14: Initial Consultation And Requirements Specification
IMPORTANT! This specification must originate from the client, their main contractor, or their appointed fire engineer as they are the only participants with the required knowledge of the building and occupancy risks, Plumis Ltd Copyright © 2020. All Rights Reserved. Page 14 of 116...
Page 15: The Automist Design Specification
An example of an Automist Design Specification is available in Appendix C (see page 112) and uploaded to the Plumis Partner Site for recording keeping. IMPORTANT! Any deviation from this DIOM must be agreed by the Authority Having Jurisdiction and client in writing. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 15 of 116...
Page 16: System Enhancements
High rise occupancy All residential buildings 18 m or higher A) Any building of a height greater than 18 m is to be treated as a high-rise occupancy Plumis Ltd Copyright © 2020. All Rights Reserved. Page 16 of 116...
Page 17 Person-Centred Fire Risk Person-Centred Fire Risk Assessment (PCFRA) with Assessment (PCFRA) with greater propensity to obstruct greater propensity to obstruct the head the head Plumis Ltd Copyright © 2020. All Rights Reserved. Page 17 of 116...
Page 18: Using Automist As A Compensatory Feature
This DIOM does not intend to cover all design requirements and the potential changes to category and resilience of the system to cover all circumstances of use and risk. In case of doubt, Plumis and/or a chartered fire engineer should be consulted regarding the most suitable specification of the system and a fire safety strategy should be drawn up to support the proposals for the specific case.
Page 19: Occupancy Profile - Vulnerable People Risk Factors
(see page 94). This is desirable when either the impact of the fire or the probability of fire are high. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 19 of 116...
Page 20 Remote monitoring (IoT) using the Automist IoT controller which generates alerts of outages in combination with a suitable service contract Sprayhead placement Preferred positions are locations where the likelihood of a sprayhead being obstructed is reduced (see page 30). Plumis Ltd Copyright © 2020. All Rights Reserved. Page 20 of 116...
Page 21 It is worth considering focusing inspections to individuals identified in a Person-Centred Fire Risk Assessment (PCFRA) with greater propensity to obstruct the head or tamper with the system. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 21 of 116...
Page 22: Design And Specification
® Automist Smartscan Hydra DIOM Manual - version 3.01.0 ® S M A R T S C A N DESIGN AND SPECIFICATION Plumis Ltd Copyright © 2020. All Rights Reserved. Page 22 of 116...
Page 23: Introduction
Automist was tested against the fire performance in BS 8458 at Warrington fire. Warrington fire operates a quality system in accordance with BS EN ISO/IEC 17025:2017 as required by BS 8458:2015. For more details see: Automist Smartscan Hydra Exova Warrington test report - BS 8458: 2015: Annex B, Method for •...
Page 24: Extent Of Automist Protection
• Automist Smartscan Hydra supports up to 6 sprayheads per pump and controller pair. The extent of Automist coverage should be provided in all parts of the dwelling, except for the following areas, which may be excluded unless required by a fire strategy or risk assessment:...
Page 25: Automist Design Guidelines
Automist Design Guidelines A single Automist Smartscan Hydra sprayhead has a 6m range in front and 4m range along the wall. The spray pattern acknowledges it is easier for us to address fires in front of the sprayhead as opposed to alongside it.
Page 26: Obstruction
1450mm from the finish floor level in all other rooms. The lower height in the kitchen is for better targeting of the significant fire risks; white goods and the hob/cooker in a room assuming a standard worktop height of 900mm high. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 26 of 116...
Page 27 The sprayhead is engraved with KEEP CLEAR and DO NOT COVER. Our installers are also trained to instruct the occupant how the system works and give simple guidelines of use. Plumis also leave a tag on the sprayhead upon completion of installation and encourage the user to visit our website so they can learn more about its operation and register online.
Page 28 Figure 8: Diagram of the sprayhead height in relation to living room furniture Figure 9: Diagram of the sprayhead height in relation to kitchen furniture Figure 10: Drawing of the sprayhead height in relation to bedroom furniture Plumis Ltd Copyright © 2020. All Rights Reserved. Page 28 of 116...
Page 29: How Automist Is Affected By Obstructions
Our sprayheads are wall-mounted to avoid ineffective evaporation in the hot layer in the ceiling and the upward flow of hot combustion products. i.e. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 29 of 116...
Page 30: Preferred Positions
(relocating or adding an additional head) and inform Plumis. This feedback helps Plumis to keep its preferred positions principles in line with how people use their homes, ensures we keep questioning if the assumptions are correct, and can improve our recommendations for the future.
Page 31: Primary Objective
As per the Authorised Reseller Installer (ARI) contract obligation the ARI must: • Submit complete and accurate technical documentation to Plumis including but not limited to, design layouts, Acknowledge and accepts that it shall remain fully responsible for all system designs and any deviations •...
Page 32: Secondary Objective
In an open plan living room, the staircase is often an ideal location opposite the likely fire sources: Wall-mounted TV • Sofa • • Fireplace Figure 21: Example of a good sprayhead location with good line of site to the living room fire risks Plumis Ltd Copyright © 2020. All Rights Reserved. Page 32 of 116...
Page 33: Tertiary Objective
The sprayhead should ideally be on the side closest to the short wall. Figure 26: Preferred position alongside a door Figure 25: Preferred position alongside a window Plumis Ltd Copyright © 2020. All Rights Reserved. Page 33 of 116...
Page 34 IMPORTANT! Authorised Reseller Installers (Designer and Commissioners) can deviate from the layout plan if they can justify the principles are being satisfied but should update the drawing so a true representation of what was installed is captured, with the rationale. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 34 of 116...
Page 35: Hydraulic Calculations
Care must be taken to consider the water supply requirement (see page 36) for this configuration as both systems may run at the same time depending on the fire (at least 16 lpm required). Plumis Ltd Copyright © 2020. All Rights Reserved. Page 35 of 116...
Page 36: Water Supplies
If the mains pressure and flow is insufficient the water main can be boosted using a ‘mains boost system’ with a tank. An outside pipe with a diameter of less than 28mm is a good indicator that a mains boost Plumis Ltd Copyright © 2020. All Rights Reserved. Page 36 of 116...
Page 37: Backflow Prevention
Bar. Cold water use only. Sprayhead Location The Automist Smartscan Hydra Head is designed to be affixed into a rectangular hole (89+/-2mm wide x 117mm high) that is at least 57mm deep when using the “old work” clips provided on a vertical wall.
Page 38 As high as possible up to 40cm above countertop Figure 32: Automist Smartscan Hydra head positioned above kitchen worktop b) Everywhere else The sprayhead must be installed at a height of 1400 - 1450mm from the finished floor level in non-kitchen area.
Page 39 (non- kitchen area. Figure 33: Automist Smartscan Hydra sprayhead mounting hole (non-kitchen area) IMPORTANT! Automist should not be used in areas with a large (greater than 2 sqm) highly polished metal surface without a glass coating, such as a commercial kitchen, as the accuracy of the fire detection could be reduced.
Page 40: Components
UK for this type of system. As soon as completed, all supporting evidence will be made available publicly. In the meantime, Plumis has carried out in-house testing to verify component durability and reliability, following UL 2167 “Water Mist Nozzles for Fire Protection Service”: 6 - General Construction (6.2 and 6.5 not applicable as electronically controlled nozzle)
Page 41 Automist Smartscan Hydra DIOM Manual - version 3.01.0 ® S M A R T S C A N Wired detector Wireless detector Wireless detector Figure 34: Automist Smartscan Hydra data and alarm cable diagram Cable Plumis Manufacturer MFG Part Supplier Type...
Page 42 15mm before the ferrule is fitted. Figure 36: Alarm Cable (39200202H-E00) Figure 35: Data Cable (2202PIFRL-E00) Figure 37: Alarm Cable (39200502H-E00) Figure 38: Alarm Cable (387FTD103) Plumis Ltd Copyright © 2020. All Rights Reserved. Page 42 of 116...
Page 43 Bootlace Ferrule (mandatory): Multicomp E0508-WHITE, 0.5mm2 / 22AWG, pin length 8mm, overall length 14mm. Supplier: https://uk.farnell.com/multicomp/e0508-white/ferrule-22awg-14mm-nylon-white/dp/9972218 Figure 44: Bootlace Ferrule Crimping Tool: Neo Tools 01-507 0.25-6mm2 / 23-10 AWG range. Supplier: http://en.neo-tools.com/zaciskarka-koncowek-tulejkowych.html Plumis Ltd Copyright © 2020. All Rights Reserved. Page 43 of 116...
Page 45: Hoses, Piping And Fittings
Hydroscand (several locations in the UK) http://www.hydroscand.co.uk/ When installing flexible high-pressure hose behind plasterboard walls, Plumis recommends the hose is left free and unconstrained. This is because mounting the hose in a conduit or narrow groove within joists makes it more susceptible to perforation when subsequent building works are carried out. Flexible high- pressure hoses must be mounted as close to the ground as possible and within the wall.
Page 46: Stainless Steel Piping (Alternative To High Pressure Hose)
Hose or pipework supports should prevent the pipe from being dislodged. Supports should be secured in accordance with the manufacturer’s instructions. Supports should not be glued, welded, or soldered to the pipe, hose, or fittings. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 46 of 116...
Page 47: Detection Devices
Automist, although they can be integrated (see page 50). The use with other types of detection not sanctioned by Plumis could lead to death or injury. The system is designed to be triggered by compatible detectors/alarms only (see page 48).
Page 48: Compatible Detectors/Alarms
An Apollo heat detector should only be chosen over and above a multisensory detector if it is not possible to use a multisensor detector as the type of substance encounter causes frequent false alarms. Use of heat detectors for code compliance should be verified with Plumis as this type of alarm is slower to react than multisensory detectors.
Page 49: Plumis Wireless Smoke Heat Alarm (Dt01)
The Wireless Smoke Heat Alarm is a 3xAAA battery powered wireless alarm custom designed for use with an Automist Smartscan Hydra sprayhead only. The alarm has a built-in wireless transmitter, which communicates with the control panel via the sprayhead receivers. When smoke is detected, the alarm sounds a loud local alarm, and the built-in transmitter sends a signal to the control panel.
Page 50: Pump With An Output Relay (Ap10)
The relay output (with resistors) must be connected to a Hydra head in the zone it is protecting. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 50 of 116...
Page 51: Residential
The automatic fire detection and alarm system should be in accordance with the recommendations of BS 5839-1:2017 or BS 5839-6:2019 as appropriate. The alarm signal should be configured and acted upon in accordance with the fire strategy for the building. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 51 of 116...
Page 52: Transmission Of Alarm Signals To Alarm Receiving Centres
Valves A WRAS approved isolation valves is required so that the Automist Smartscan Hydra system can be shut off from the water main. All such valves must be labelled with the included warranty void anti-tamper sticker.
Page 53: Pump
Alternatively, a flame proof enclosure (G0001_M) can be purchased from Plumis for the purpose of protection, to minimise the effect of a fire to the pump when it is in the room it is trying to protect.
Page 54: Automatic Test And Monitoring Facilities
We also monitor that the thermopile sensors are reading temperatures and all heads are ready to operate. Many options for such an alarm are available and Plumis recommends the purchase of an inexpensive alarm like the one in the following link: LED Power Cut Failure Outage Alert Automatic Alarm Warning Siren Indicator (ASIN - B01GE3NDB4) •...
Page 55 FRSB products are also manufactured from the same Euroclass B compliant material. All paint coatings used on FRSB products are coated with flame retardant BS EN Class B s1 d0 paint. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 55 of 116...
Page 57: Installation Procedure
• Electrical cable • PTFE tape During second fix: • A pressure gauge kit (CM01) (available from Plumis) • A commissioning kit (CM06) (available from Plumis) • A suitable tool for tightening BSP hoses, e.g. wrenches • A set of screwdrivers including Torx bits •...
Page 58: A) First Fix - Preparing The Site
The circuit supplying an Automist Smartscan Hydra unit must/should be protected by a C type breaker (C10’ or ‘C16’ for one unit (per pump), or ‘C20’ / ‘C32’ for two Automist Smartscan Hydra units). This must be on a C-type breaker, on an RCBO or an RCD protected circuit. The RCD/RCBO circuit must protect only the Automist Smartscan Hydra system and not be incorporated with any other circuit in the property.
Page 59 FP 200 fire resistant cable to a 13 Amp fused unswitched Separate connection unit located circuit close to the controller’s location Figure 50: Split load board power supply Plumis Ltd Copyright © 2020. All Rights Reserved. Page 59 of 116...
Page 60 1.5 – 6 bar pressure static water pressure IMPORTANT! Before installation ensure the hoses are in line with Plumis guidelines. See Hoses, Piping and for high pressure hose specification on page 45. The maximum total length of high-pressure hoses is 60 m.
Page 61: Fire Stopping
Following testing hoses / pipes must be drained and dried to remove any moisture in the network. It is recommended that the hose is installed 40 mm from the surface of the wall. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 61 of 116...
Page 62 It is recommended that the data cable(s), where possible, is loosely bound to the high-pressure hose. Ferrules must be crimped onto the bare wires in preparation to connecting them to the relevant terminals. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 62 of 116...
Page 63: Detector And/Or Alarm Installation
Figure 55: Mounting the resistor on single wired detector Figure 56: Mounting the resistor on wired detectors in chain Plumis Ltd Copyright © 2020. All Rights Reserved. Page 63 of 116...
Page 64: Plumis Wireless Smoke Heat Alarm (Dt01) Installation And Battery Replacement
® S M A R T S C A N Plumis Wireless Smoke Heat Alarm (DT01) Installation and Battery replacement Once a suitable location is found, mount the alarm as follows: Refer to the diagram below and install the mounting base on the ceiling or on the wall (if permitted for the application) using the screw location as required.
Page 65: B) Second Fix - Installing The Controller
PCB is mounted. The gland also provides strain relief. Grommets are provided and must be placed to fill the cable entry holes which you do not use. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 65 of 116...
Page 66: C) Second Fix - Installing The Sprayhead(S) And Pump
Hydra connections use ‘Rising Clamp’ type of terminal. It is very important to operate the terminals correctly, otherwise they will not make reliable electrical connection and won’t properly clamp the wire. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 66 of 116...
Page 67 Phoenix Contact MKDS 1/5-3,5). Test connection by gently pulling on wire to confirm it is not loose. Clamp open/down Clamp closed/up Figure 60: Screw terminals on the sprayhead Plumis Ltd Copyright © 2020. All Rights Reserved. Page 67 of 116...
Page 68 IMPORTANT! Do not use PTFE at the head connection. If you believe any contaminants or construction products have entered the hose flush it through with water before connecting it to the sprayhead. Connect the ¼” BSP high pressure hose to the sprayhead assembly Plumis Ltd Copyright © 2020. All Rights Reserved. Page 68 of 116...
Page 69 Once you have successfully connected the controller to the pump, connect the pump to the first sprayhead and to the mains. Once you have finished with the wiring close the front panel, now you are ready to test the first head. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 69 of 116...
Page 70 All connected heads will light yellow. This indicates that the wiring is correct, and the units are in an uncommissioned state. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 70 of 116...
Page 71 Installing the system in this way will ensure you can identify if one of the heads has been wired incorrectly. If you are confident that your system is wired correct you can wire all the heads at the same time and verify them at the end. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 71 of 116...
Page 72: D) Second Fix - Connecting The Water Supply
See Figure 2 for installation sequence. • WRAS approved isolation valves are required so that the Automist Smartscan Hydra system can be shut off from the water main. All such valves must be labelled with the included warranty void anti-tamper sticker. This enables clear identification of any tampering with the water valve (note: spare stickers can be ordered from Plumis) Place sticker over valve body &...
Page 73 O-ring, and locking pin after removal. The Automist Smartscan Hydra pump unit must be housed close to a 3/4” BSP water supply with an approved isolation valve to the check valve. A synthetic rubber washer is supplied with each device to facilitate fitting to the flat-faced outlet.
Page 74 Washer Pump Figure 68: Automist Smartscan Hydra Water Assembly Order IMPORTANT! Do not install the filter directly to the pump. You must maintain the assembly order as described above! The new hose-sets supplied with the appliance are to be used and the old hose-sets must not be reused.
Page 75: E) Commissioning
Figure 69 : The Automist Controller STOP Button: Pressing the STOP button during a fire condition will stop the Automist Smartscan Hydra pump for 2 minutes. After activation, the system will alarm for 12 minutes. During this time if at the end of the first 2 minutes (during the last 10 minutes), an alarm triggers the system will reactivate.
Page 76 IMPORTANT! The controller lid must be screwed closed when performing this procedure. When Automist Smartscan Hydra is powered up for the first time the YELLOW LED will remain solid to indicate that the system has not been commissioned. Commissioning is a simple programmed procedure which allows Automist Smartscan Hydra to be tested.
Page 77: Commissioning Procedure
TEST for 10 seconds to clear the commissioning, if required. Press ENTER on the controller to go to the next stage. Short hold STOP to go back to the previous state, if required. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 77 of 116...
Page 79 IMPORTANT! During the flow test and draining process, a small amount of water will possibly come out of the drain hole on top of the sprayhead’s main body block (drain hole not visible as Plumis Ltd Copyright © 2020. All Rights Reserved. Page 79 of 116...
Page 80 Connect the commissioning kit to the selected sprayhead and place a bucket on the floor to collect the water. Ensure the volume of water reaches the approximate 6lt level mark in the bucket. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 80 of 116...
Page 81 By leaving an installed system with pressures outside the specified range, you might become liable for deaths or injuries. If the achieved output pressure is outside the specified range, refer to the commissioning troubleshooting guide (see page 100) and contact Plumis if the situation cannot be resolved.
Page 82 The high-pressure hose must be cleared of water by connecting a bicycle pump or a suitable compressor pump (see page 86) to the Plumis supplied attachment that is connected to the test point.
Page 83 “old work” mounting clips provided. The clips lock the sprayhead tightly to wall plaster, dry wall of any thickness up to ¾”, concrete block, brick or concrete wall. Figure 83: “old work” mounting clips Plumis Ltd Copyright © 2020. All Rights Reserved. Page 83 of 116...
Page 84: Online Logbook
Place the two warning stickers and the commissioning label: • Label the separate circuit on the distribution board Label the alarm that triggers Automist Smartscan Hydra, preferably near the test button • • Complete the installer commissioning label and affix to your Automist Smartscan Hydra pump.
Page 85 Also available for download on the partner page. An additional user guide is available in Appendix D for residential installations (see page 114) Figure 86: User Instructions Plumis Ltd Copyright © 2020. All Rights Reserved. Page 85 of 116...
Page 86: Hose Draining
Once the system is commissioned ALARM TEST MODE allows you to test the alarms in the home without activating Automist Smartscan Hydra, by causing the paired heads to begin scanning. IMPORTANT! The scanning should be smooth. Watch to see the head movement is consistent.
Page 88: Post-Installation Checklist - Key Points For Installers And Building Control
50 mm deep within a wall • Automist Smartscan Hydra may be protected by an RCD or RCBO, but this protection must not be shared with other circuits. Therefore, Automist Smartscan Hydra must be connected to the non- protected side of the consumer unit.
Page 89: Head Placement
Head placement matches the layout drawing supplied with the commissioning form. • The coverage must be in line with Plumis Guidelines and the guidance in this DIOM. Any deviations must be justified by the Designer and agreed in written with the AHJ.
Page 92: What To Do If The System Activates
This mode was created to address the fire returning after the occupant believes it has been extinguished. When in this mode do not switch off the power or it will reset the 12-minute timer. If the alarm condition has ended, Automist Smartscan Hydra will return to an uncommissioned state and requires full recommissioning.
Page 94: Maintenance
After cleaning reinstall and if the detector/alarm does not restore the alarm to normal operation the alarm must be replaced. • Any remote monitoring arrangements should be tested to determine whether they are being transmitted and received correctly. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 94 of 116...
Page 95: Ari Inspection
(on page 107), offer them a solution (relocating or adding an additional head) and inform Plumis. This feedback helps Plumis keep our preferred positions principles are in line with how people use their homes and can improve our recommendations for the future.
Page 96: Software Update Process
Pour out any stagnant water into a bucket. If this is more than a pint, please take a photo and contact Plumis, as this could be evidence of a faulty solenoid valve on the pump. If you suspect a leak dry the area and place a dry paper towel down and observe after 10 minutes.
Page 97 Inspection and quality assurance checks of the sprayhead, pump and controller; Where failures of in-service equipment are noted in these tests, it might be necessary to conduct further investigation or replace components representative of the batch tested. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 97 of 116...
Page 98: Software Update Process
Take care not to touch the PCB. Do not over tighten the terminals. The latest version of the software is uploaded to the datalogger once a year by Plumis. Locate the controller within the customer’s house. Common locations include near the RCD. Check that only the controller green LED is lit, showing the controller is powered with no errors.
Page 99 Flasher. Watch the Flasher display, it will say "Erasing", then "Programming", and finally "OK". Note: If the red "ERROR" is displayed, please check your connection, and retry. If it persists, contact Plumis R&D for advice. Note: The Hydra heads will lock and start flashing red x4. The heads will remain like this until we reset the controller in the next section.
Page 100: Cleaning
(see page 75). Cleaning The Automist Smartscan Hydra wall-mounted head must be wiped clean with a damp cloth. Do not attempt to clean with any other chemical cleaners or abrasives To clean your alarm, remove it from the mounting base. N.B. This will trigger a tamper error on the controller.
Page 101 1.5 bar. If the flow is close to or below 8 lpm, the mains pressure may be too low for Automist Smartscan Hydra to operate correctly, or there may be constrictions in the water supply.
Page 102 If it is a wired alarm, you have a wiring problem (open or short circuit), please examine the connections. Also verify that you have added a correctly wired resistor to the Plumis Ltd Copyright © 2020. All Rights Reserved. Page 102 of 116...
Page 103 Please contact Plumis technical support. Smartscan Hydra unit Power circuit Too-small MCB used Please refer to page 58. trips out as for Automist soon as pump Smartscan Hydra starts circuit Plumis Ltd Copyright © 2020. All Rights Reserved. Page 103 of 116...
Page 104 30 seconds (activating alarm) to allow out during the solenoid valve to be cleaned. Stop pump. Flow must stop as commissioning intended. test If the problem persists, contact Plumis technical support. Plumis Ltd Copyright © 2020. All Rights Reserved. Page 104 of 116...
Page 105: Returning Equipment To Plumis - Rma
Plumis Ltd offers a parts only warranty for its products to be free from defects under normal residential use for a period of two years from the date that the installation is approved by Plumis. If annual servicing is kept up to date, then this warranty is extended to four years. This warranty is limited to repair or replacement of units returned to Plumis Ltd according to our return procedure.
Page 108 Engineer Name Date Type Code compliance or e.g. BLU234 e.g. Ms Smith e.g. 01/01/2020 elective upgrade Address e.g. Plumis Ltd, Unit 4, Phoenix Trading Estate, Bilton Rd, Perivale, Greenford UB6 7DZ Item Non-compliance Corrective action Item Non-compliance Corrective action https://docs.google.com/spreadsheets/d/1B-RZo2H6JpWN15- cPG_GvWm6DVwXzID3wPCDmKM5Lr8/edit?usp=sharing Plumis Ltd Copyright ©...
Page 110 Date Type Code compliance or elective e.g. BLU234 e.g. Ms Smith e.g. 01/01/2020 upgrade e.g. Plumis Ltd, Unit 4, Phoenix Trading Estate, Bilton Rd, Perivale, Greenford UB6 7DZ Address Property Type New Build 1-2 Storey 3 Storey 4+ Storey Flat...
Page 111 Living room 1 e.g. Smartscan Hydra e.g. 100 bar e.g. Bedroom 3 e.g. Smartscan Hydra e.g. 100 bar e.g. Bedroom 3 e.g. Smartscan Hydra e.g. 100 bar Notes/deviations https://bit.ly/3gzPCLP Plumis Ltd Copyright © 2020. All Rights Reserved. Page 111 of 116...
Page 113: Example Design Specification
(AWFSS), a version-controlled copy of that fire strategy, including sufficient detail to understand the fire safety objectives, relationships, and dependencies See BS 9991 Section 6.5 (see 11.2, Table 2) Any deviations from the DIOM None Plumis Ltd Copyright © 2020. All Rights Reserved. Page 113 of 116...
