System Configuration and Menu Options

Root Menus

The MON/PRG key accesses the three primary modes of the G7: the Frequency Command mode, the
Monitor mode, and the Program mode. From either mode, press the MON/PRG key to loop through
to the other two modes (see
toggles the menu to and from the Panel menu and the Frequency Command mode.
Note: Panel menu changes made when accessing the Panel menu using the method shown in
Figure 8

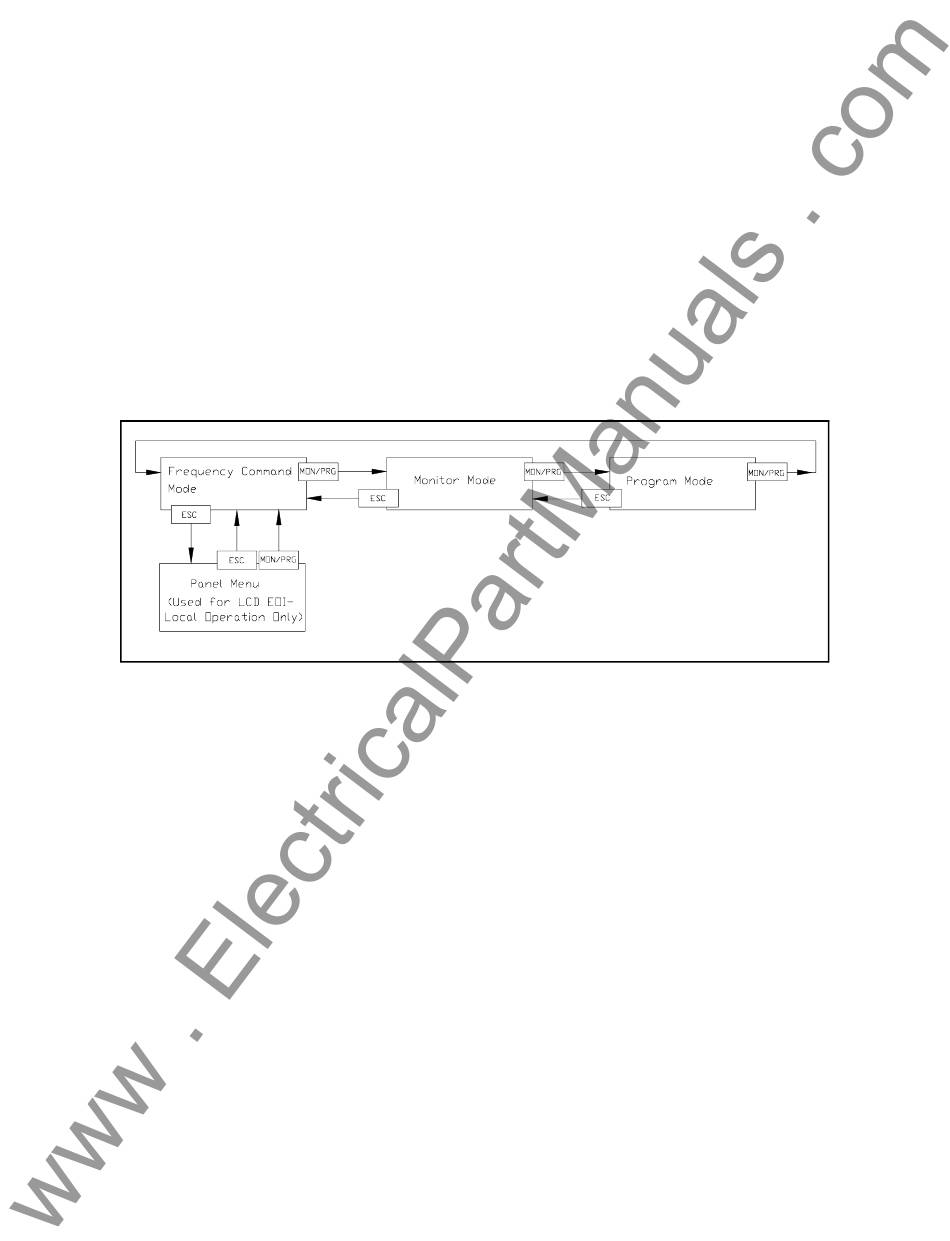

Figure 8. Root menu mapping.
Frequency Command Mode
Frequency Setting
While operating in the Local mode (Local LED is illuminated on the front panel), the running
frequency of the motor may be set from the Frequency Command screen. Using the Rotary Encoder,
enter the Frequency Command value and then press the Run key. The motor will run at the
Frequency Command speed and may be changed while running.
Scrolling Monitor
The Output Current and the ASD Overload values are displayed below the Frequency Command
parameter of the Frequency Command screen (default setting). Other user-selected parameters may be
displayed on this screen for quick-access monitoring while running. These parameters may be accessed
and enabled for display by placing a check in the box next to the item listed at Program
Setup Scrolling Monitor
The display time setting for each enabled item may be set from 1 to 60 seconds. This feature is useful
when more than two items are enabled for display (scrolling display). The parameters that may be
displayed on the Scrolling Monitor are listed in the section titled
G7 ASD Quick Start Guide
Figure 8). While in the Frequency Command mode, pressing the ESC key
is effective for Local LCD EOI control Only.
Select.
Monitor
Monitor Mode on pg. 18.
17
