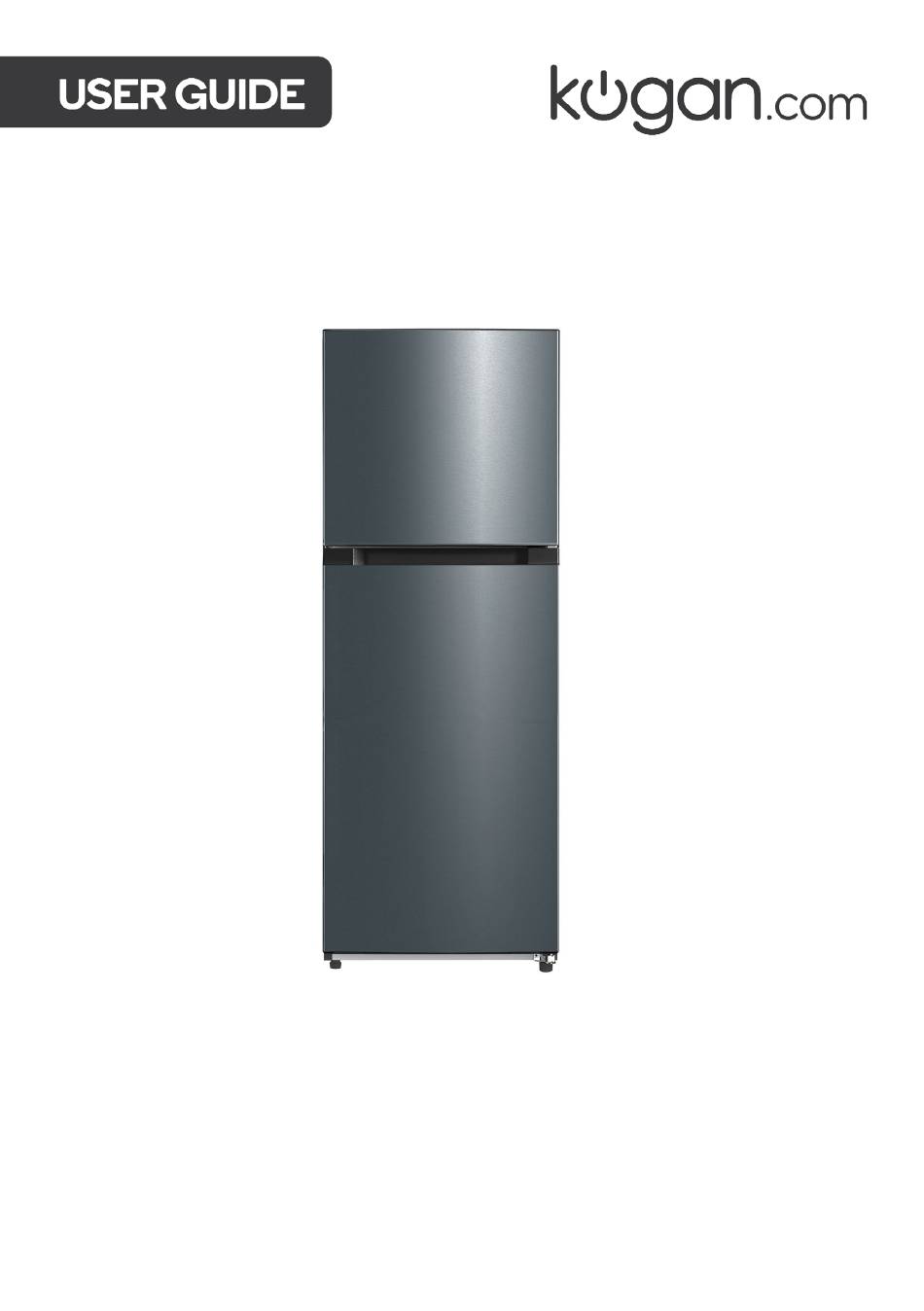

- Page 1 236L TOP MOUNT FRIDGE (KAM236TMSFA & KAM236TMSFB)
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Functions Cleaning & Care Troubleshooting Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Thank you for buying this Kogan product. Please read all safety instructions before using this refrigerator. WARNING: Before using this product, read this user guide carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. - Page 4 WARNING: Only dispose of the refrigerator according to local regulations, as it uses flammable blowing gas and refrigerant. DANGER: It is hazardous for anyone other than an authorised service person to service this appliance. In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.
- Page 5 • Turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire. •...
- Page 6 The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets and that some products such as water ices should not be consumed too cold; The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;...
-
Page 7: Overview
OVERVIEW Shelf Door tray LED light Damper adjusting slider Drawer flip Temperature control panel Refrigerator glass shelf Door tray Fruit & vegetable box cover plate Fruit & vegetable box The picture above is only for reference and may differ to the actual product. - Page 8 Refrigerating chamber • The refrigerating chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term. • Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
-
Page 9: Installation
INSTALLATION Placement • Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. • Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect. - Page 10 Changing door hinge side (Right/Left Change) Tools required (not supplied): Putty knife or Phillips head 5/16" socket and flathead Masking tape screwdriver ratchet screwdriver Parts pre-installed on the refrigerator, to be used when changing the door: Parts Parts Right upper hinge Middle beam screw cap Right upper hinge cover Adjustable foot...
- Page 11 Ensure the appliance is powered off before conducting this operation. Remove all food from door shelves. Remove hole cap, the upper hinge cover, fitting screws of upper hinge and sleeve pipe, then light up the freezer door until it is separated from cabinet completely Upper Hole Cover hinge cover...
- Page 12 Unscrew the middle hinge screws, remove the middle hinge and remove the two- hole plug, a screw, a screw cap on the middle beam, then remove the refrigerator door. Middle hinge Screw Hole plug Screw Screw cap Remove the adjusting feet, lower hinge screw and lower hinge assembly, then install the lower hinge assembly on the other side of the box and install the adjusting feet on the side of the adjusting feet opening.
- Page 13 Dismantle the limit blocks and screws on the lower cover of both refrigerator door and freezer door, install them on the other side of both doors; then install the sleeve pipe on the upper cover of the refrigerator door on the other side. Sleeve pipe Limit Blocks Screw...
- Page 14 Install the freezer door on the middle hinge and install the upper hinge, hinge cover and hole cover. Hole cover Hinge cover Screw Upper hinge Notes: The images above are only for reference and the actual product may differ.
-
Page 15: Operation
OPERATION Changing the light Any replacement or maintenance of the LED lamps must be made by kogan.com, an authorised service agent or similar qualified person. Do not repair or replace LED lamps yourself. Starting • Before initial start, keep the refrigerator still for two hours before connecting it to power supply. -
Page 16: Functions
FUNCTIONS SETTING SUPER COLD COLDEST COOL LED 3 Setting button Temp 3 (Mid-low) LED 1 LED 4 Temp 1 (Cold) Temp 4 (Coldest) LED 2 LED 5 Temp 2 (Mid-high) “Super cool” mode Temperature setting Every time you press “Setting” button, the mode changes once. After 15 seconds if no further changes have been made, the refrigerator will run according to the setting value. - Page 17 Display When the refrigerator is on power, the display screen all LED light for 3 seconds, the default temperature is Temp 3 (mid-low). When there is a failure, the LED light shows the fault code (loop display), the LED light displays as following table: Error code Error description...
-
Page 18: Cleaning & Care
CLEANING & CARE Overall cleaning • Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. - Page 19 Cleaning the glass shelf • Lift the front of glass shelf and then pull out; • Remove the glass shelf and clean as needed; • The reverse operation is for installation of glass shelf Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function.
- Page 20 Out of operation • Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced and no more fresh food shall be put into the appliance. •...
-
Page 21: Troubleshooting
TROUBLESHOOTING • Check whether the appliance is connected to power or whether the plug is correctly in wall outlet. Failed operation • Check whether the voltage is too low. • Check whether there is a power failure or partial circuits have tripped. - Page 22 Abnormal noises • Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal. Contact help.kogan.com for further assistance. Disposal This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
-
Page 23: Notes
NOTES... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
