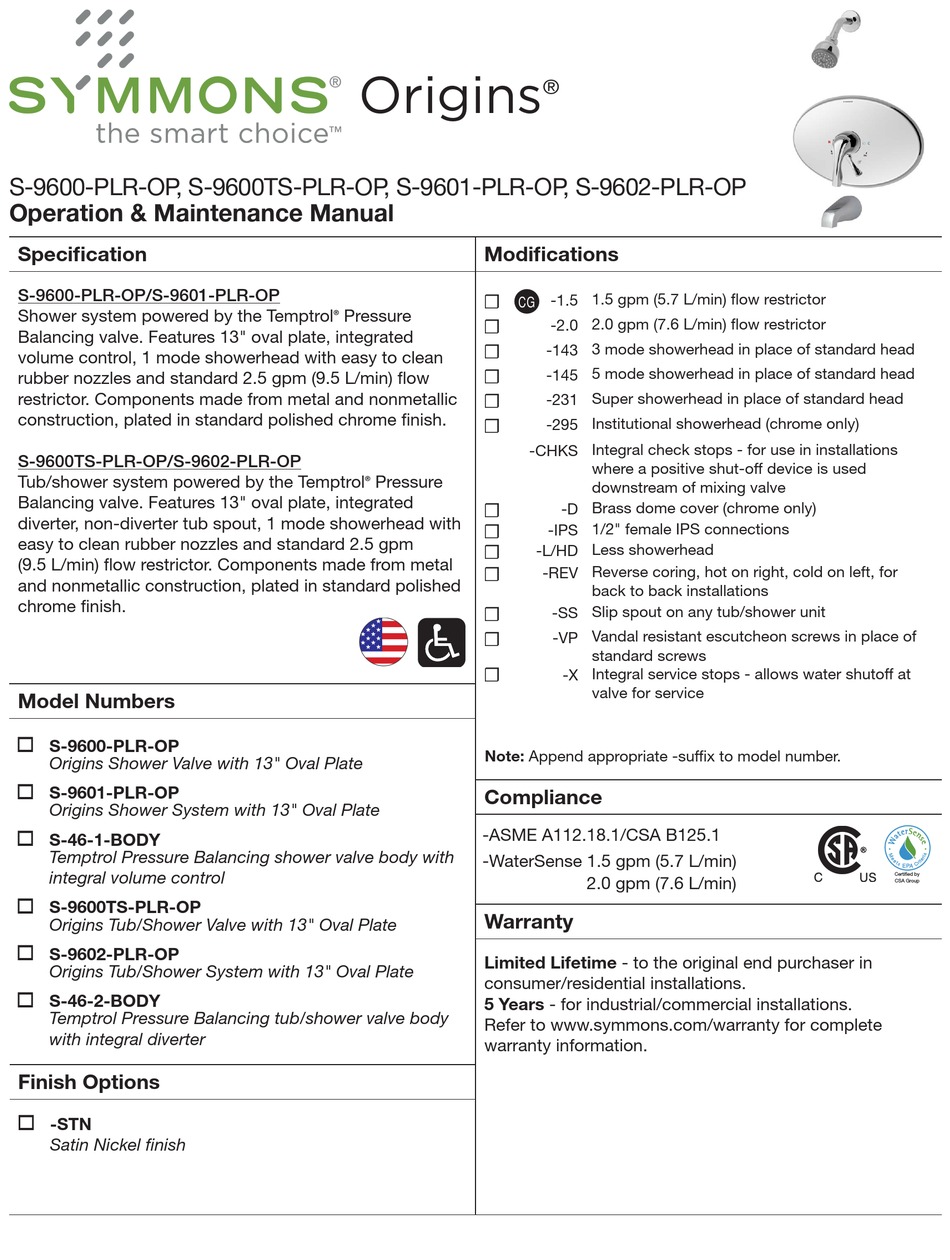

Symmons Origins S-9600-PLR-OP Operation & Maintenance Manual

S-9600-PLR-OP, S-9600TS-PLR-OP, S-9601-PLR-OP, S-9602-PLR-OP
Operation & Maintenance Manual
Specification
S-9600-PLR-OP/S-9601-PLR-OP
Shower system powered by the Temptrol
Balancing valve. Features 13" oval plate, integrated
volume control, 1 mode showerhead with easy to clean
rubber nozzles and standard 2.5 gpm (9.5 L/min) flow
restrictor. Components made from metal and nonmetallic
construction, plated in standard polished chrome finish.
S-9600TS-PLR-OP/S-9602-PLR-OP

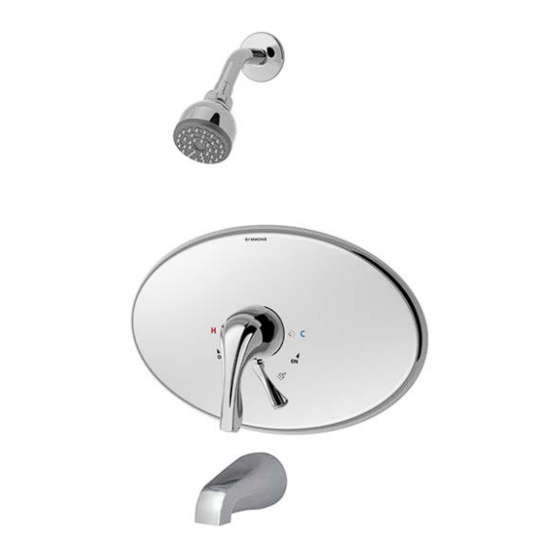

Tub/shower system powered by the Temptrol
Balancing valve. Features 13" oval plate, integrated
diverter, non-diverter tub spout, 1 mode showerhead with
easy to clean rubber nozzles and standard 2.5 gpm
(9.5 L/min) flow restrictor. Components made from metal
and nonmetallic construction, plated in standard polished
chrome finish.

Model Numbers


S-9600-PLR-OP
Origins Shower Valve with 13" Oval Plate

S-9601-PLR-OP
Origins Shower System with 13" Oval Plate

S-46-1-BODY
Temptrol Pressure Balancing shower valve body with
integral volume control

S-9600TS-PLR-OP
Origins Tub/Shower Valve with 13" Oval Plate

S-9602-PLR-OP
Origins Tub/Shower System with 13" Oval Plate

S-46-2-BODY
Temptrol Pressure Balancing tub/shower valve body
with integral diverter

Finish Options


-STN
Satin Nickel finish
Origins
Modifications
☐
Pressure
®
☐
☐
☐
☐
☐
Pressure
®
☐
☐
☐
☐
☐
☐
☐
Note: Append appropriate -suffix to model number.

Compliance

-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
®
CG -1.5 1.5 gpm (5.7 L/min) flow restrictor
-2.0 2.0 gpm (7.6 L/min) flow restrictor
-143 3 mode showerhead in place of standard head
-145 5 mode showerhead in place of standard head
-231 Super showerhead in place of standard head
-295 Institutional showerhead (chrome only)
-CHKS Integral check stops - for use in installations
where a positive shut-off device is used
downstream of mixing valve
-D Brass dome cover (chrome only)
-IPS 1/2" female IPS connections
-L/HD Less showerhead
-REV Reverse coring, hot on right, cold on left, for
back to back installations
-SS Slip spout on any tub/shower unit
-VP Vandal resistant escutcheon screws in place of
standard screws
-X Integral service stops - allows water shutoff at
valve for service
2.0 gpm (7.6 L/min)
Certi ed by
CSA Group
