Summary of Contents for More NF18MESH

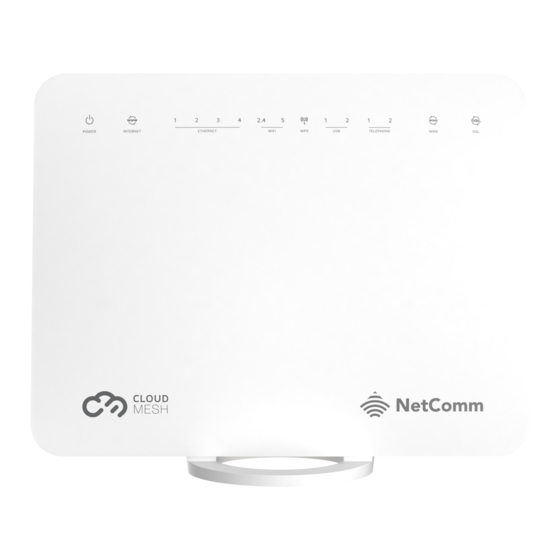

- Page 1 NF18MESH Quick Start Guide FTTC Connections...
-
Page 2: What's In The Box
What’s in the box 1 x NF18MESH 1 x RJ45 1 x RJ11 CloudMesh Gateway Ethernet Cable Telephone Cable 1 x Power Supply 1 x Quick Start Guide 1 x Warranty Card (12V/2A) 1x End User License Agreement | FTTC Connections more.com.au... - Page 3 Please Read Before Use | FTTC Connections more.com.au © More 2022...
- Page 4 Do not allow the gateway to come in contact with any liquid or moisture. • Do not place the gateway in any wet or humid areas such as kitchen, bathroom or laundry rooms. | FTTC Connections more.com.au © More 2022...
-
Page 5: Power Supply
Do not leave the gateway and its accessories within the reach of small children or allow them to play with it. The gateway contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard. | FTTC Connections more.com.au © More 2022... -
Page 6: Product Handling
Please check local regulations for disposal of electronic products. • Arrange power and Ethernet cables in a manner such that they are not likely to be stepped on or have items placed on them. | FTTC Connections more.com.au © More 2022... -
Page 7: Getting Started
Getting Started Pre-configured? If you received the Netcomm NF18MESH modem from More, the device will be pre-configured. Follow the steps specific to your FTTC NBN connection on the following pages to get connected. | FTTC Connections more.com.au © More 2022... - Page 8 How to connect your Netcomm modem: FTTC Connections | FTTC Connections more.com.au © More 2022...
- Page 9 Wait for the connection light and DSL light on the top of the NCD to turn solid blue. This may take up to 15 minutes to complete. If the lights do not turn solid blue please get in touch with More technical support team.
- Page 10 Check lights Once connected to the network, the Power, WAN & WiFi 2.4 – 5 lights will display a steady green light. The internet light will be flashing. | FTTC Connections more.com.au © More 2022...
- Page 11 +61390219630 WhatsApp: +61480096696 Final steps After you’ve completed the steps to connect your NetComm NF18MESH modem, wait up to 20 mins to connect to your devices. Once connected, run a test to check the speed of your connection at www.speedtest.net | FTTC Connections more.com.au...
- Page 12 How to connect a NF18MESH modem That is not pre-configured | FTTC Connections more.com.au © More 2022...
-
Page 13: Before You Begin
This connection uses the grey DSL port of the back This type of Internet service uses the blue WAN of the gateway. port on the back of the gateway to connect to the dedicated connection box installed by your access network provider. | FTTC Connections more.com.au © More 2022... - Page 14 | FTTC Connections more.com.au © More 2022...
-
Page 15: Logging Into The Web Interface
(affixed to the back panel of the gateway) then click the Login > button. Note - The graphics that appear in the section represent the display from a Windows browser. The same graphics will display differently when viewed on a hand held device. | FTTC Connections more.com.au © More 2022... -
Page 16: Using The First-Time Setup Wizard
Using The First-Time Setup Wizard Upon first login The gateway displays the first-time setup wizard. We recommend using the wizard to configure your Internet connection. Click the Yes, start the setup wizard button. | FTTC Connections more.com.au © More 2022... - Page 17 Using The First-Time Setup Wizard Ethernet W AN 1. Under Internet Services select Ethernet WAN. 2. Under Connection Type select PPPoE. 3. Enter the details Enter the details required for your specific Connection Type. | FTTC Connections more.com.au © More 2022...
- Page 18 Enter the username and password, 802.1P priority Enter the 802.1P priority and VLAN Tag provided in and VLAN Tag provided in your connection email from your connection email from More. More. When you have finished, click the Next > button to go When you have finished, click the Next >...
- Page 19 WAN Gateway IP Address, Primary DNS Server and your connection email from More. Secondary DNS server, 802.1P priorty and VLAN Tag provided in your connection email from More. When you have finished, click the Next > button to go to the WIRELESS settings When you have finished, click the Next >...
- Page 20 Network Name (the name displayed on client devices when they scan for wireless networks), the Security Key Type (encryption type) and the WiFi password. 2. When you have finished click the Next > button. | FTTC Connections more.com.au © More 2022...
- Page 21 2. To configure a telephone Enter the details into the fields shown for each line you wish to use. If you do not know the values to enter, contact More. click the Next > button when you have finished.
-
Page 22: Gateway Security
2. Usernames and passwords are case sensitive can be up to 16 characters in length and may comprise letters, special characters and numbers without spaces. When you have finished entering the new credentials, click the Next > button. | FTTC Connections more.com.au © More 2022... - Page 23 1. Specify the timezone where the gateway is located for correct time keeping and the log-keeping function of the gateway. 2. Click the Next > button when you have chosen the correct timezone. | FTTC Connections more.com.au © More 2022...
- Page 24 If they are not, click the < Back button to go back to the relevant screen to make changes. 2. When you click the Finish > button the gateway returns you to the SUMMARY page. | FTTC Connections more.com.au © More 2022...
