Summary of Contents for Broyhill LEGACY CASTLE PINES KVS9433

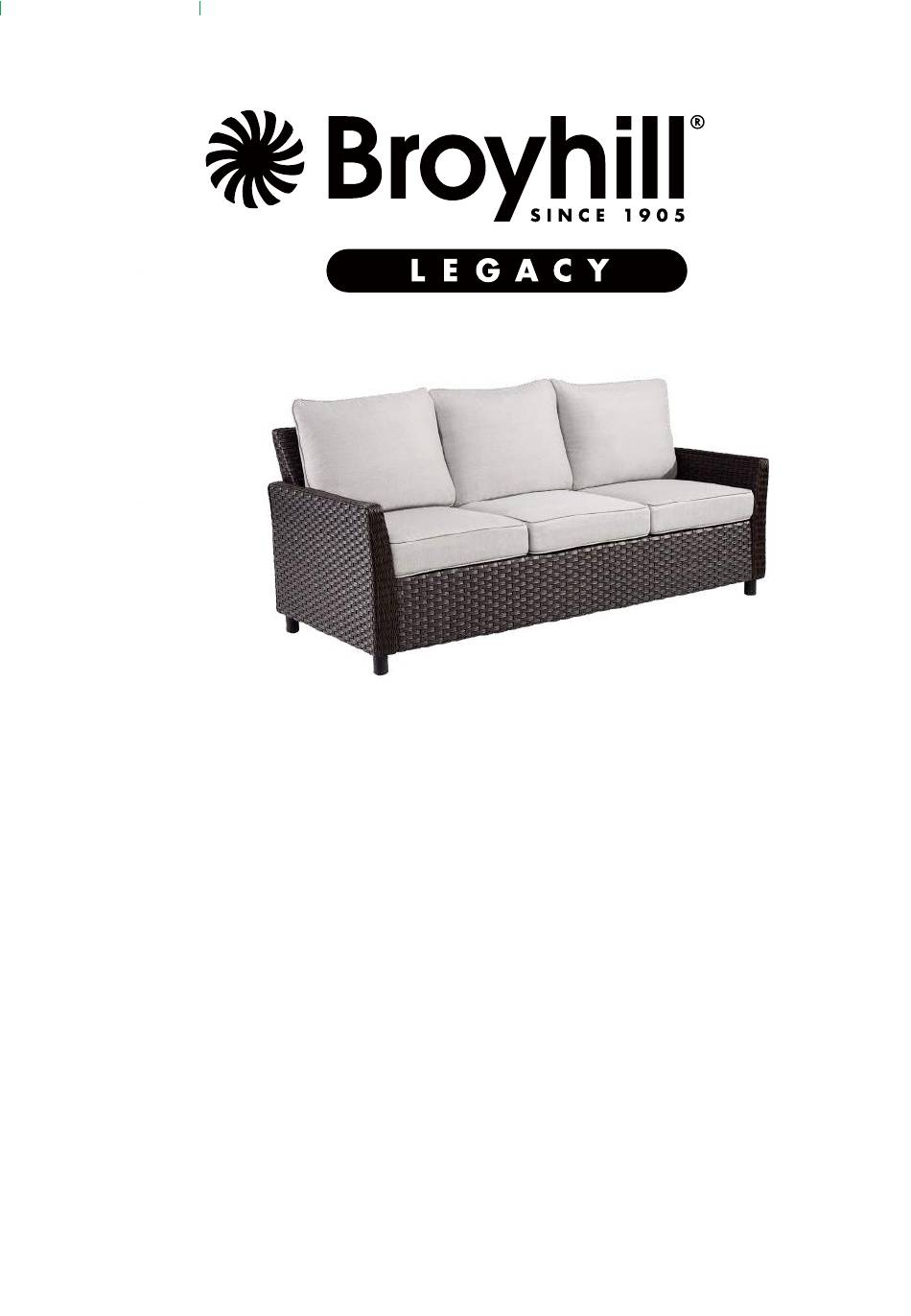

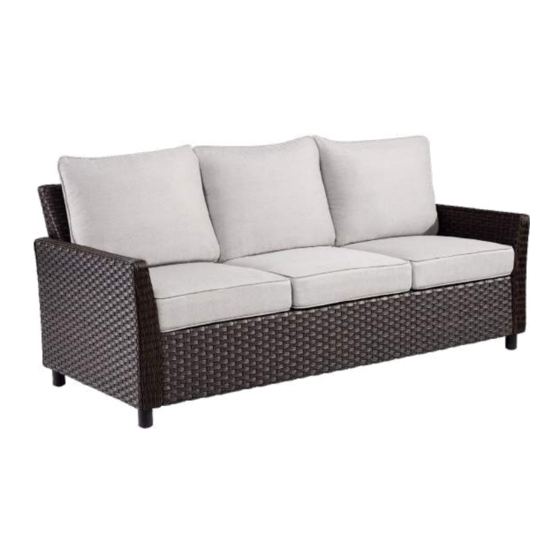

- Page 1 ASSEMBLY INSTRUCTION ITEM#: KVS9433 SKU#: 810487339 C A S T L E P I N E S 3 P E R S O N S O F A 1 (877) 539 – 7436 Need help? We are here for you! •...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a at covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way Retain these assembly instructions for future reference.
- Page 3 PARTS LIST PART MATERIAL CODE PART Q’TY 17C33A0716001YX BOLT M6*45 KVS9433-CS03-1 17FA05040301-YX BACK ASSEMBLY WASHER d6.5*D13*1.0 KVS9433-CS02-1 17D03A030301-YX SEAT ASSEMBLY JAM NUT M6*1.0 KVS9432-CS04-3 61K9433X00001BA LEFT BACK CUSHION KVS9433-CS04-1 61K9433X50001BA SUPPORT RIGHT BACK CUSHION 17C33A0712001YX 61K9433X60001BA BOLT M6*35 BACK CUSHION 17C33A0706001YX 61K9433Y00001BA BOLT M6*15...
- Page 4 STEP 2 PARTS REQUIRED: 2, 3, 5, & 8 Keep the bolts loose. STEP 3 PARTS REQUIRED: 1, 2, 7, 8, & 9 Tighten all bolts by using the supplied Hex key. PAGE 3 OF 4 E-320...
- Page 5 STEP 4 PARTS REQUIRED: 2, 4, 6, & 8 Tighten all bolts by using the supplied Hex key. STEP 4 PARTS REQUIRED: 10, 11, 12, & 13 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. •...
