Quad Shootout Folding
Basketball Set
Safety and Assembly Instructions

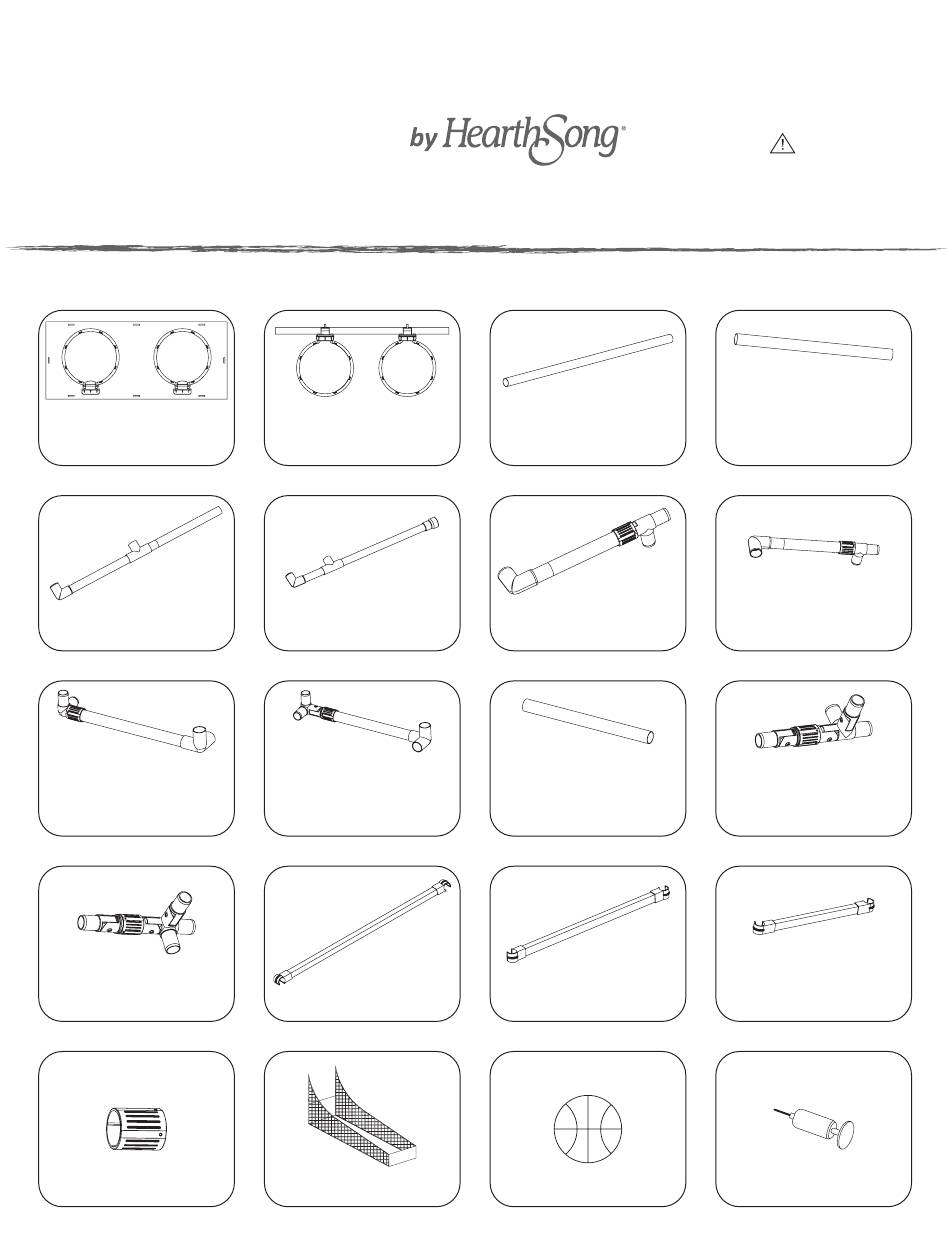

Includes:
#1 (x 1)
Upper target board
#5 (x 2)
#9 (x 1)
Jointed pole
#13 (x 1)
Jointed pole
#17 (x 4)
#2 (x 1)
Lower rims
#6 (x 2)
#10 (x 1)
Jointed pole
#14 (x 1)
Clip-on piece
#18 (x 1)
#3 (x 7)
#7 (x 1)
Jointed pole
#11 (x 2)
#15 (x 2)
Clip-on piece
#19 (x 6)
#733537 | Ages 6+
Adult assembly required.
41"L x 31"W x 65"H
Takes 1 adult to assemble.
WARNING:
CHOKING HAZARD—
Small parts.
Not for children under 3 yrs.
#4 (x 4)
#8 (x 1)
Jointed pole
#12 (x 1)
Jointed pole
#16 (x 2)
Clip-on piece
#20 (x 1)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HearthSong Quad Shootout
Summary of Contents for HearthSong Quad Shootout
- Page 1 Quad Shootout Folding #733537 | Ages 6+ Adult assembly required. 41"L x 31"W x 65"H Takes 1 adult to assemble. Basketball Set WARNING: Safety and Assembly Instructions CHOKING HAZARD— Small parts. Not for children under 3 yrs. Includes: #1 (x 1)
- Page 2 Note: 1. Find a clean, level surface to begin the assembly of your basketball stand. 2. Remove all of the contents from the box and check that you have all of the parts shown on the parts list before you begin assembly.
- Page 3 Assembly: Watch the assembly video at HearthSong.com Step A: Parts #5, 7, and 8 may be adjusted for height. During initial assembly, extend the pipes to full position, and release the spring lock buttons to secure in place. Step B: Assemble all the parts of rear supporting frame as shown in the figure below. Please note, the sleeves of part #17 should be pre-assembled onto the pipe of parts #5 and 11.
- Page 4 Step C: Assemble the front support frame as shown Step D: Join the front and rear supporting frames by in the figure. carefully pressing the clip-on parts #14, 15, and 16 onto the poles of the frame as shown in the figure. Step E: Using hook and loop strips, hang the net from the middle pole #3 and attach to the front poles #3.
- Page 5 Folding Steps: Step 1: Remove the lower rim #2 and all clip-on pieces #14, 15, and 16 from the frame. Fold the upper baskets at a 90 degree angle to top. Adjust all spring lock buttons to the lowest position to collapse the pipes. Step 2: Following the steps shown in the figure, pull the sleeves out from the joints (location of #7 and 8) and fold the pipes combo backward.
- Page 6 Step 4: Lay the front frame flat against the rear frame. Pull the upper sleeves outwards from the joint (location of #15 and 16) and fold the pipes combo downwards at a 90 degree angle. #733537 Conforms to ASTM F963. Made in China. ©HearthSong 2020. Madison, VA 22727. 1-800-533-4397 HearthSong.com...
