Siare AM5000 Service Manual

Anaestesia module
Hide thumbs

Advertisement

Quick Links

Download this manual
‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬

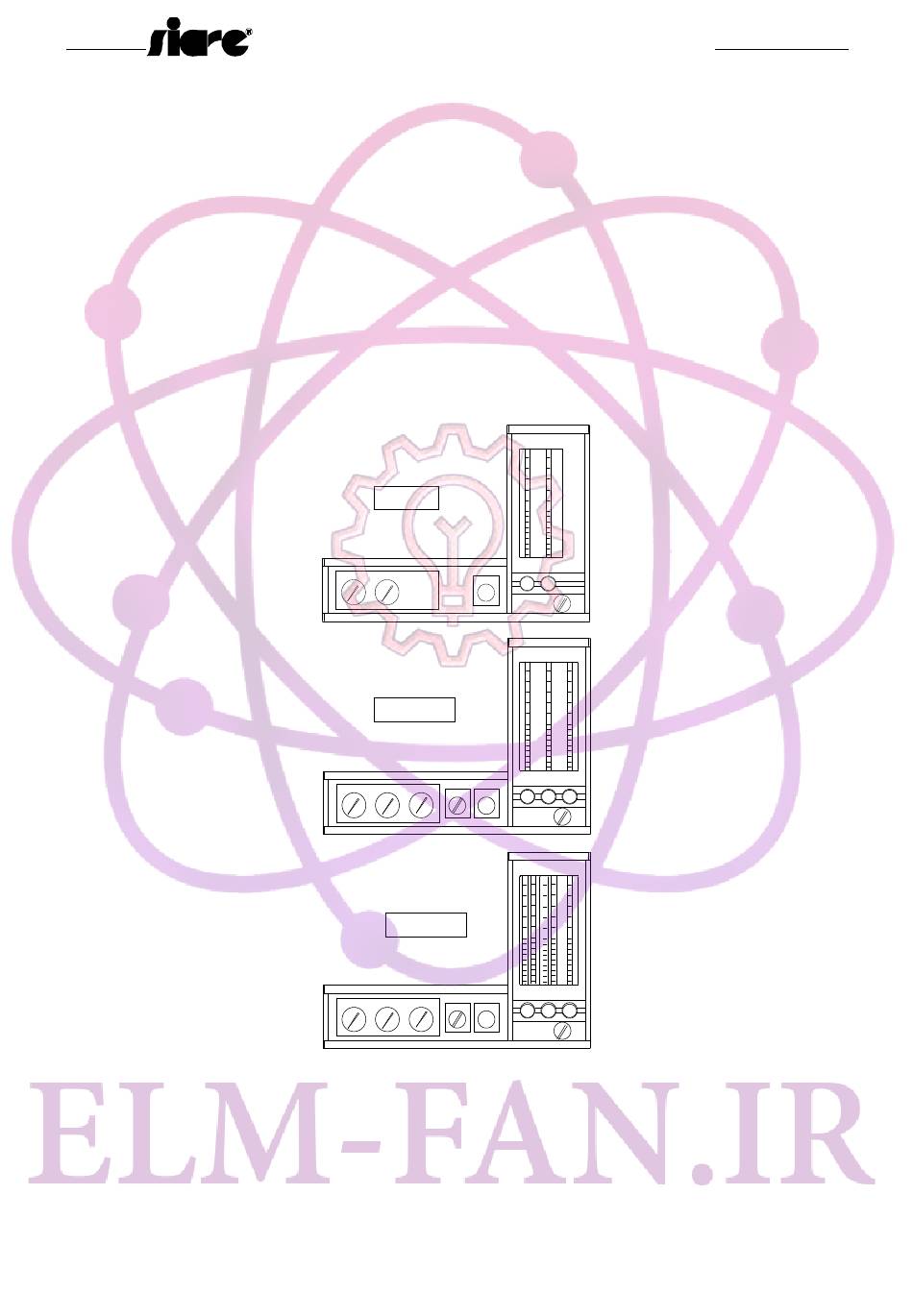

AM5000 – AM5000/3 – AM5000/5
Service Manual
AM5000 - AM5000/3 - AM5000/5
ANAESTESIA MODULE
SERVICE MANUAL
AM5000
AM5000/3
AM5000/5
P.N.: DU5506130
Page 1 of 34
Rev.: 3.0
To download more items, go to ELM-FAN.IR

Advertisement

loading
Need help?

Need help?

Do you have a question about the AM5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Siare AM5000

Summary of Contents for Siare AM5000

  • Page 1 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual AM5000 - AM5000/3 - AM5000/5 ANAESTESIA MODULE SERVICE MANUAL AM5000 AM5000/3 AM5000/5 P.N.: DU5506130 Page 1 of 34 Rev.: 3.0 To download more items, go to ELM-FAN.IR...
  • Page 2 5.4 Components List FOR AM 5000/3....................32 5.5 Pneumatic Diagram AM5000/5.......................33 5.6 Components List FOR AM 5000/5....................34 Warning SIARE is used throughout this manual as an abbreviation for SIARE HOSPITAL SUPPLIES S.r.l. Via Giulio Pastore, 18 - 40056 Crespellano (BO) - ITALY Tel.:+39- 051/969802...

  • Page 3: Description Of Use

    1.1 Users of Manual This manual is strictly for use by SIARE technicians or qualified technicians authorized by SIARE: The technician authorized by SIARE has available the appropriate tools and spare parts and is trained with regards to the safety of the product.
  • Page 4 Every repair should be performed by SIARE authorized personnel. Siare is not liable for direct or indirect damage to people or things, due to technical assistance by personnel non-authorized by SIARE or improper use of the equipment, that is to say a use not described in the User’s manual or technical manual.

  • Page 5: Maintenance Procedures

    Therefore whenever a part needs to be replaced, it must be an original spare part, which has been checked and tested by SIARE. SIARE assumes responsibility for all provisions of the law, if the unit is used and maintained as per the instructions in this manual and the technical manual. The Technical Assistance Report, signed by the authorized SIARE technician, is proof of the completion of the scheduled maintenance.

  • Page 6: Technical Description

    , or N ) and the enrichment (with oxygen) of the supplied gas mixture for emergencies. The AM5000 - AM5000/3 – AM5000/5 is also equipped with the MIX-LIFE device that guarantees a minimum of 25% oxygen in all open-tap conditions.
  • Page 7 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual The opening of this regulator automatically supplies a flow of oxygen of about 25% of the total mixture. The flow of oxygen can be viewed on flowmeter (S). This safety device (MIX LIFE) avoid the incorrect administration of hypoxic mixtures.
  • Page 8 3.2 The Pneumatic Distributor NOTE: THE HERE BELOW INDICATED SCHEMES AND THE PROCEDURES, HAVE BEEN UNIFIED FOR THE THREE MODULES AM5000 – AM5000/3 – AM5000/5. REMEMBER: DO NOT CONSIDER THE AIR LINE FOR ANAESTHESIA MODULE A 2 FLOWETERS. Below is the pneumatic diagram which describes the unit:...
  • Page 9 From these they are taken back to the AM5000 - AM5000/3-AM5000/5 in to later be sent to the connector for the fresh gas supply in the patient ventilation circuit.
  • Page 10 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual The following diagram illustrates the connections between the parts described above, in this case a flowmeter box with three flowmeters. N O 2 VAPORIZER P.N.: DU5506130 Page 10 of 34 Rev.: 3.0...
  • Page 11 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual FLOWMETER BOX Can be used in the two, three and five flowmeter models. SAFETY VALVE VAPORIZER REG. PRESS. REG. PRESS. SAFETY VALVE VAPORIZER REG. PRESS. REG.
  • Page 12 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual SAFETY VALVE VAPORIZER REG. REG. PRESS. PRESS. FILTER It does the MIX-LIFE function in order to guarantee that when the N2O is supplied, the oxygen contents will never be lower than 25%.

  • Page 13: Calibration And Testing

    4. CALIBRATION AND TESTING NOTE: THE HERE BELOW INDICATED SCHEMES AND THE PROCEDURES, HAVE BEEN UNIFIED FOR THE THREE MODULES AM5000 – AM5000/3 – AM5000/5. REMEMBER: DO NOT CONSIDER THE AIR LINE FOR ANAESTHESIA MODULE A 2 FLOWETERS. 4.1 Flowmeter Box...
  • Page 14 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 1g) unscrew completely the pin and remove, with the sand paper, the brass deposits from edge 5 and 10 of the pin. 1h) repeat the procedures of points 1f and 1g until a good matching of the screws and mother screws are obtained and that the spacing between edge of pin and regulator body is created.

  • Page 15: Nitrous Oxide Regulator

    ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual ASSEMBLY OF THE FLOW REGULATOR OF THE MIX-LIFE SYSTEM) REGOLATORE DEL PROTOSSIDO DI AZOTO NITROUS OXIDE REGULATOR REGOLATORE DEL 25% OSSIGENO 25% OXYGEN REGULATOR Lubricate with Vaseline the whole for the regulators on block 11...
  • Page 16 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual Screw the filters/silencers 1/8 whole 5.5, on the flowmeters holes of the regulator block Insert the gasket 15x24x7 in the flowmeter holes of the regulator block .
  • Page 17 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual The flowmeters should be handled with care, and should be wrapped in the paper in which they were shipped , not with nylon. Do not rube them with your hands, fabric or paper.
  • Page 18 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 4b) Repeat the same steps for the N2O flowmeter. Acpt. limit. ±10% Measured Air Set. N2O flow 1,00 0,93 1,14 4,00 4,15 5,08 8,00 8,46 10,35...
  • Page 19 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual Tarring the flow regulator and Mix-Life pressure system. The MIX-LIFE is designed to administer the minimum possible dosage of oxygen when the nitrous oxide regulator is opened.
  • Page 20 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual It is rare that the tolerances are within the limits on the first try, however by the trend of the values you will receive the information necessary for doing the corrections.
  • Page 21 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual Lower front panel of the flowmeter box AM 5000 (cod. M55682809) n. 1 Selector (cod. P13000049) n. 1 Connector RG 6/5 (cod. P00100109) n. 2 3-way pneumatic valve (cod.
  • Page 22 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual Maximum pressure valve tarring 7a) The maximum pressure valve is designed to prevent the glass rotameters from breaking due to an accidental obstruction on the distribution line of the gaseous mix.
  • Page 23 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual Cut-Off Check R.N2O R.O2 R.air IN 3.5 BAR 8a) The CUT-OFF safety device is designed to block the delivery of nitrous oxide in case of lack of oxygen in the inlet of the flowmeter box and of warning the operator by emitting an audible alarm, that there is a dangerous situation.
  • Page 24 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 4.2 Final Test PROCEDURE: 1.connect the following pneumatic connections: P.N.: DU5506130 Page 24 of 34 Rev.: 3.0 To download more items, go to ELM-FAN.IR...
  • Page 25 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual AM5000: TO FLOWMETER FROM VAPORIZER VAPORIZER P.N.: DU5506130 Page 25 of 34 Rev.: 3.0 To download more items, go to ELM-FAN.IR...
  • Page 26 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual AM5000/3: TO F LO W M E TE R F R O M V A P O R IZE R N 2 O A IR VAPORIZER P.N.: DU5506130...
  • Page 27 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual AM5000/5: TO F LO W M E TE R F R O M V A P O R IZE R N 2 O A IR AM5000/5...
  • Page 28 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual Preparation: insert supply biad with the valves and manometers at 16+20 (cylinder connections) insert supply triad with valves and manometers at 16+20+21 (pipeline connections) Leak Test open the main valve of the triad, closed the main valve of the biad and close the valves of the flowmeter box.
  • Page 29 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 5. PNEUMATICS 5.1 Pneumatic Diagram AM5000 TO FLOWMETER FROM VAPORIZER VAPORIZER P.N.: DU5506130 Page 29 of 34 Rev.: 3.0 To download more items, go to ELM-FAN.IR...
  • Page 30 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 5.2 Components List FOR AM 5000/ front panel of AM 5000 (cod. M55679709) manometer support AM 5000 (cod. M58481209) oxygen manometer (cod. P40100009) nitrous oxide manometer (cod.
  • Page 31 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 5.3 Pneumatic Diagram AM5000/3 TO F LO W M E TE R F R O M V A P O R IZE R N 2 O...
  • Page 32 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 5.4 Components List FOR AM 5000/3 Front panel of AM 5000 (cod. M55679709) manometer support AM 5000 (cod. M58481209) oxygen manometer (cod. P40100009) nitrous oxide manometer (cod.
  • Page 33 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 5.5 Pneumatic Diagram AM5000/5 TO F LO W M E TE R F R O M V A P O R IZE R N 2 O...
  • Page 34 ‫.ﻣراﺟﻌﮫ ﻓرﻣﺎﯾﯾد‬WWW.ELM-FAN.IR‫ﺑرای داﻧﻠود ﻣوارد ﺑﯾﺷﺗر ﺑﮫ ﺳﺎﯾت‬ AM5000 – AM5000/3 – AM5000/5 Service Manual 5.6 Components List FOR AM 5000/5 front panel of AM 5000 (cod. M55679709) manometer support AM 5000 (cod. M58481209) oxygen manometer (cod. P40100009) nitrous oxide manometer (cod.
