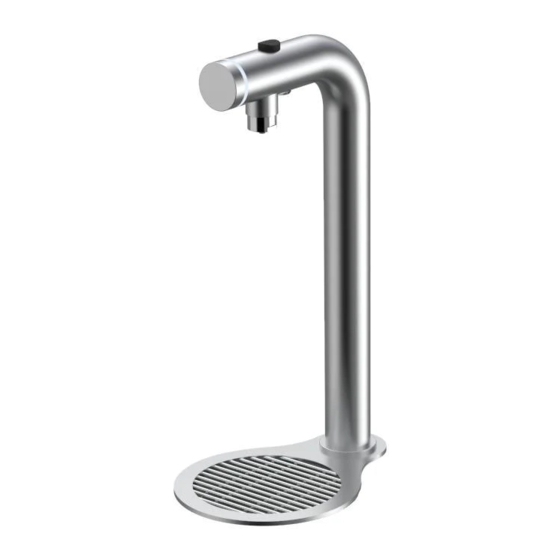

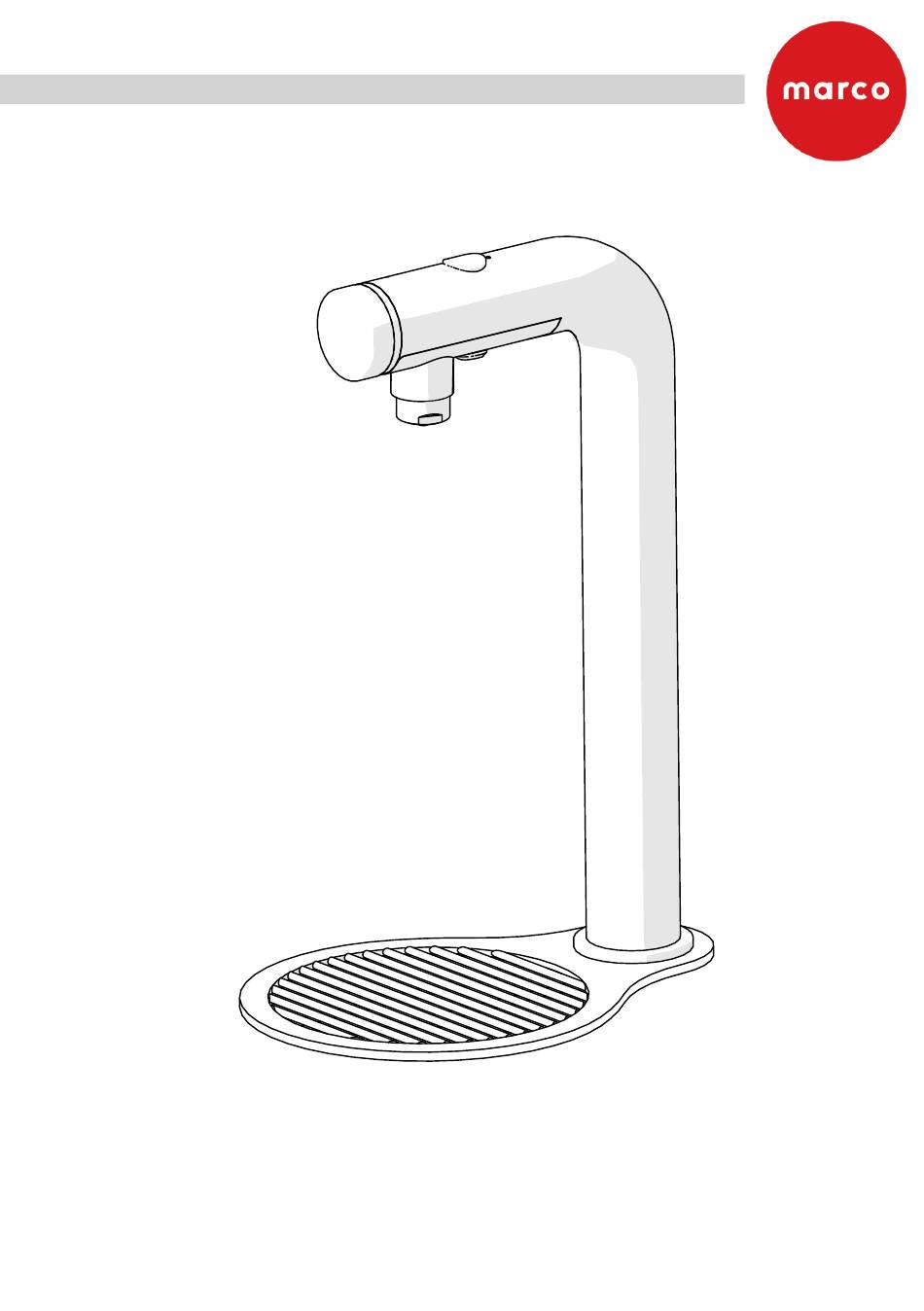

- Page 1 UNA FONT Instruction Manual Machine P/N: 1000858, 1000859...
-
Page 2: Table Of Contents
Contents 1. Font Box Contents....................2 2. Counter Cut-Out....................2 3. Installation......................4 No Drip Tray....................4 Drip Tray....................5 Connecting Hoses..................6 4. Operating Font....................7 5. Cleaning & Maintenance..................7 Font Box Contents • 1B Unafont • Vent Hosing 1860388 • 8mm Water Hose 1860386 • Instruction Manual •... -
Page 3: Counter Cut-Out
Counter Cut Out 32mm Scale 1:1 / 1 ¼” 100mm / 4” For drip tray only... -
Page 4: Installation
Installation 1. No Drip Tray 32mm / 1 ¼” Hosing should be trimmed to ensure continuous drop from font to boiler 50mm... -
Page 5: Drip Tray
Installation 2. Drip Tray (sold seperately p/n. 2300268) 32mm/ 1 ¼” 100mm/ 4” The drain outlet on the drip tray should be plumbed to waste. Hosing should be trimmed to ensure continuous drop from font to boiler 50mm... -
Page 6: Connecting Hoses
Connecting Hoses Cold / Sparkling Vent Power 8mm - 1/4inch reducer Hot Water Vent plug Cold Water Power SP9 Boiler Connection Hot Water Vent SP9 Boiler... - Page 7 UNA FONT - Connecting Hoses Hot / Cold Ready to drink Power font to control box If using urn use hard tubing 8mm - 1/4inch reducer piece hot or cold source Concentrate shot 8mm - 1/4inch Power reducer piece font to control box...
-
Page 8: Operating Font
Operating Font 1. Push & Hold 2. Push & Release Cleaning & Maintenance RISK OF SCALDING Turn off the boiler before cleaning to prevent accidental triggering of a dispense. Beware of accidentally operating the font – especially when cleaning around the push buttons. - Page 9 Marco Beverage Systems Limited. 63d Heather Road, Sandyford Industrial Estate, Dublin 18 t: +353 (0)1 295 2674 f: +353 (0)1 295 3715 e: sales@marco.ie www.marcobeveragesystems.com NSF/ANSI 4 E337347...
