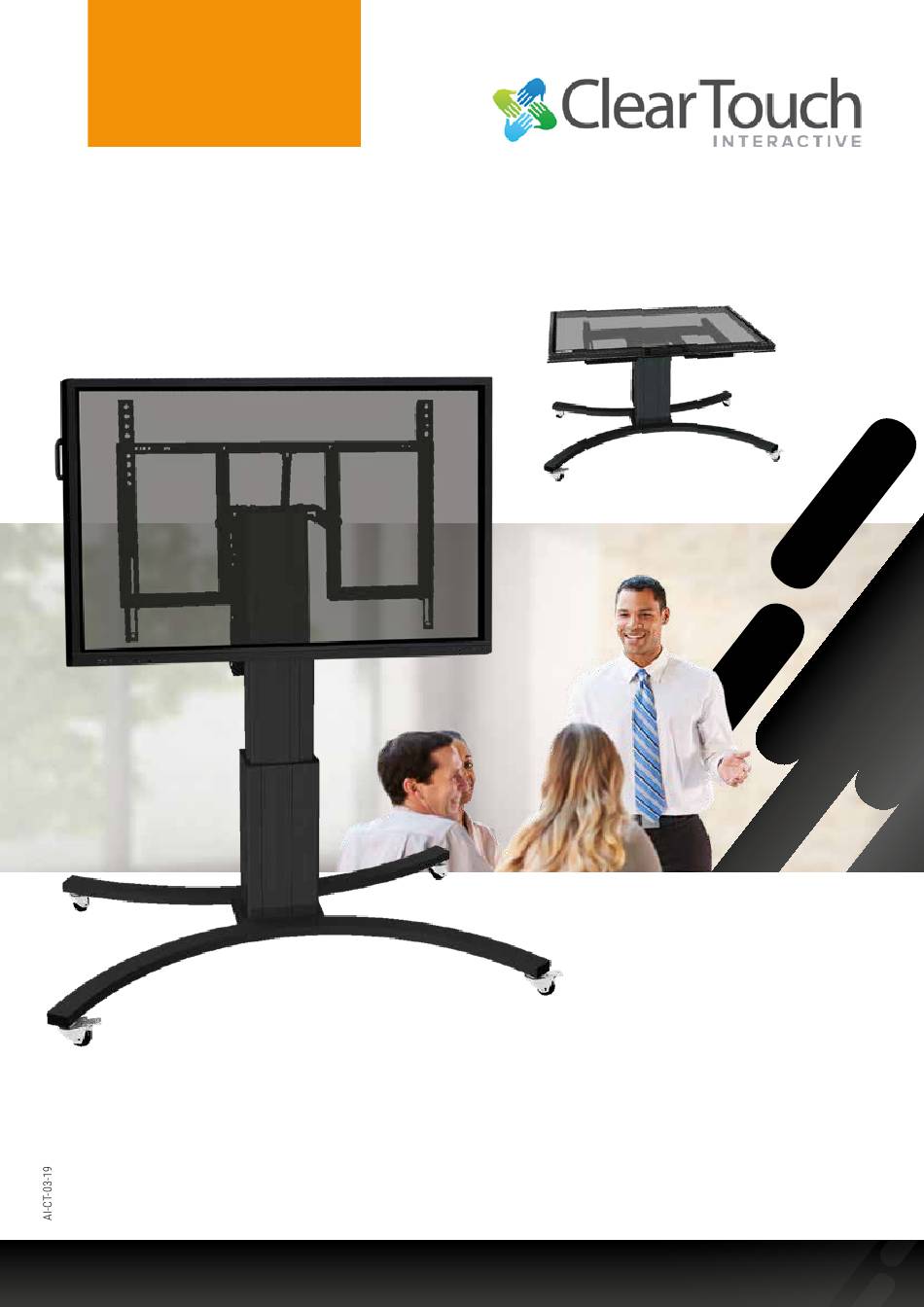

- Page 1 CTI-STAND-CONM-V3 ASSEMBLY INSTRUCTION CONVERTIBLE MOBILE STAND WITH ANTI-COLLISION www.getcleartouch.com | Technical Support: (864) 643-5045 | Sales: (864) 973-7973...
-
Page 2: Package Contents
PACKAGE CONTENTS Mobile base Center column Tilt frame Display brackets Remote control IEC (power) connector Anti-Collision unit (not illustrated – pre-assembled) Depending on the display 8 x M8 x 40 4 x M6 x 16 4 x M8 x 16 2 x M6 x 70 1 x Cable tie Lenshead Allen... -
Page 3: Mounting Instructions
MOUNTING INSTRUCTIONS Display RJ plug (frame) Molex plug (column) Molex plug (frame) www.getcleartouch.com | Technical Support: (864) 643-5045 | Sales: (864) 973-7973... - Page 4 MOUNTING INSTRUCTIONS Click INSTRUCTION REMOTE CONTROL For moving the unit up or down just press and hold the buttons on the control unit. Releasing the button will immediately stop the movement. So in case of emergency just unhand the control unit (watchdog switch). Height adjustable Tiltable Vertical position...
-
Page 5: Troubleshooting
TROUBLE SHOOTING System is pre-calibrated. PLEASE RECALIBRATE ONLY IN CASE OF ERROR. Calibration: Press key simultaneously until you hear 1 x audio signal Press key until you hear 3 x audio signal Press key and hold on until the column reached the maximum position and you can hear 2 x audio signal.
