Summary of Contents for Feider Machines FSP600W

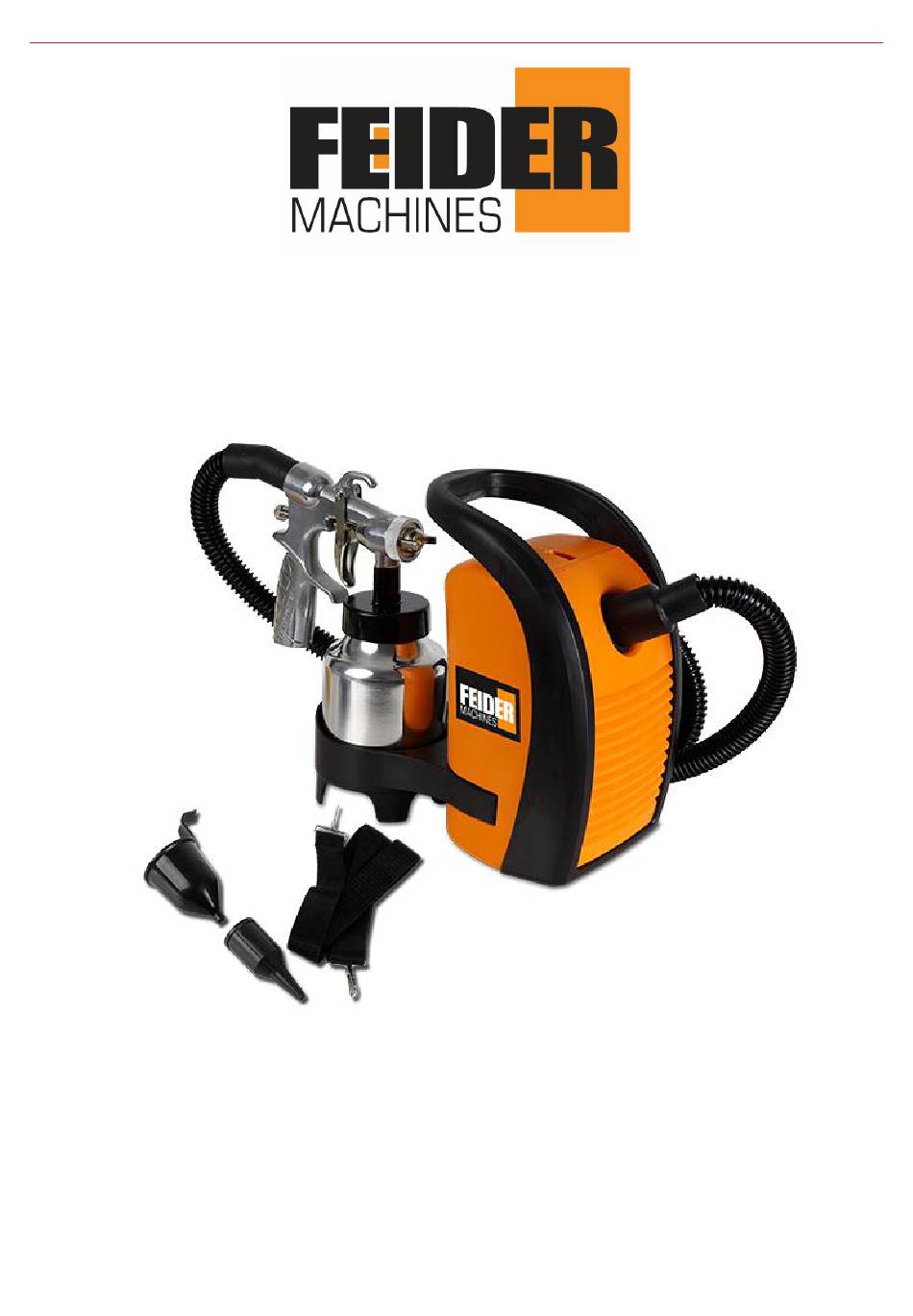

- Page 1 ORIGINAL INSTRUCTIONS PAINT SPRAYER FSP600W USER GUIDE CAUTION Read the instructions before using the machine BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC - 2020...
-
Page 2: Table Of Contents
CONTENT 1. GENERAL POWER TOOL SAFETY WARNINGS...........3 2. PAINT SPPRAYER SAFETY WARNINGS............5 3. INTENDED USE....................6 4. SYMBOLS.......................6 5. PREPARING BEFORE USING...............7 6. USING THE DEVICE..................11 7. MAINTENANCE AND CLEANING..............12 8. TROUBLESHOOTING...................13 9. DISPOSAL ....................13 10. DECLARATION OF CONFORMITY……………………………………...……..14 11. WARRANTY....................15 12. -
Page 3: General Power Tool Safety Warnings
1. General power tool safety warnings WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
-
Page 5: Paint Spprayer Safety Warnings
2. Paint sprayer safety warnings NOTE: Learn to know your tool. Please read the operator’s manual. Learn the applications and limitations as well as the specific potential hazards. WARNING: TO AVOID THE RISK OF FIRE OR EXPLOSION: • DO NOT spray flammable or combustible materials near a flame or sources of ignition such as cigarettes, motors, and electrical equipment. -
Page 6: Intended Use
order to avoid a safety hazard. Do not to spray any material where the hazard is not known. Use appropriate personal protective equipment, such as dust mask. Do not to clean guns with flammable solvents. 3. INTENDED USE 1) The unit is for household use only. Intended for Painting inside and outside;... -
Page 7: Preparing Before Using

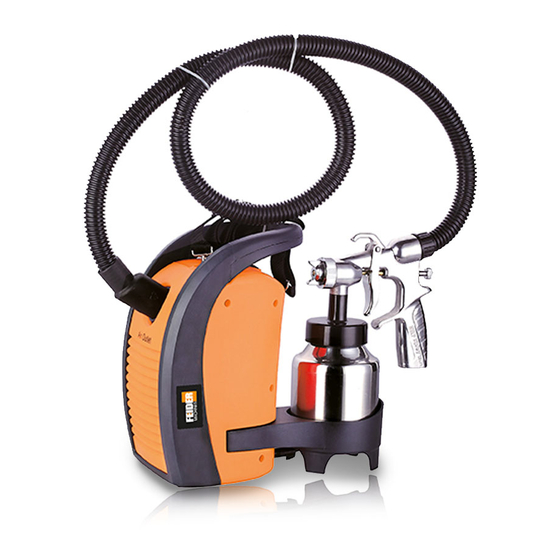

5. PREPARING BEFORE USING a) Know your product 1- Air outlet connection 5- Support bracket 2- Hose 6- Viscosity cup 3- Trigger 7- Blowing nozzle 4- Paint Container 8- Carrying Belt b) Technical data 1) Voltage: ...........230V~ 50Hz 6) Pressure : ........0.15 -0.35 bar Power: ............650W 7) Nozzle diameter :...... - Page 10 c) Installation 1) Make sure the power supply voltage is the same as the value indicated on the machine technical data plate. 2) Make sure the switch is in position “O” (A). 3) Connect the machine plug to an extension. (minimum 1200W) 4) Connect the hose to the multistage centrifugal blower (B).’...
-
Page 11: Using The Device
Thin the product following the manufacturer’s instructions. If necessary GRADUALLY ADD THINNER AFTER MAKING TESTS ON A PIECE OF CARDBOARD OR WOOD. After checking that the product has been correctly thinned, the entire can be thinned. For more specific information about viscosity see relative section. HVLP spray gun Mount the gun container and fully tighten. -
Page 12: Maintenance And Cleaning
The round spray (CC) requires a greater distance from the object to be painted. In any case make tests on a pieces of cardboard or wood before paint. Other uses of the painting machine By connecting the fitting to the hose the painting machine can also be used to blow or inflate mattresses or other inflatable objects. -
Page 13: Troubleshooting
8.TROUBLESHOOTING PROBLEM CAUSE SOLUTION The paint drips on the Product too diluted Add undiluted product object to be painted Spray adjustment Reduce the paint flow by tightening the screw (H - Movement too slow Move the gun faster Gun trigger remains When reversing the movement, let go of the trigger pulled Gun distance... -
Page 14: Declaration Of Conformity
ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.50 Declares that the machinery designated below: PAINT SPRAYER FSP600W Serial number: 20201239232-20201242231 Complies with the provisions of the Directive « Machine » 2006/42/CE and national laws transposing it:... -
Page 15: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 16: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 17: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
