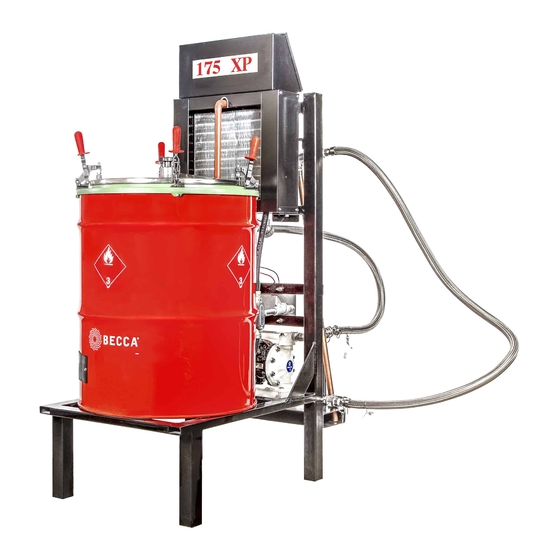

Becca SOLVENT SAVER Operator's Manual

1) Safety

Before operating the BECCA SOLVENT SAVER™, read the Instruction Manual completely. All BECCA products are
engineered and manufactured to the highest performance standards and have been subjected to detailed testing before
shipment from the factory.
DANGER LABELS (1- 4)
1 2
1. Presence of flammable vapors and solvents. 4. Wear Breathable Air during use
2. No smoking or metal grinding in area.
3. Keep away from open flames.
WARNING!
Read the Instruction Manual to become familiar with all aspects of the equipment.

2) Operation

1. Before filling the Recycler, place a new Recycler Bag in the Tank. Fold the excess
bag material down over the ring. Be sure to keep the bag clear of the loading fitting.
2. Turn the Unloading Valve on the Recycler and pump used solvent waste into
Recycler 1 to 2 inches below Recycler Bag Ring.
3. Pour Paint waste into Recycler – Make sure to stir waste paint in Recycler bag to
dilute the concentration.

Add no more than 430 oz. of paint solids to a 17.5 gal unit or there will be
efficiency losses.
Caution!
Larger amounts of Paint will reduce the capabilities of the unit.
This is due to the large heat sink created by the excess solid material.
4. The system will initially be set at 350 ºF for 4 hours at 100% power.
Adjustments (see Instruction Manual) to the time may be required depending
on the types of solvents, type of paint, the painter's waste levels, and the
desired consistency of the Waste material.
5. Assure there is an empty metal container under the tube coming from the
Condenser.
WARNING!
Rev 1
Copyright © 2021 by BECCA Inc. All Rights Reserved.
OPERATORS GUIDE
3 4
5. Observe warnings at all times.
6. Read the Instruction Manual carefully.
Make sure the ground strap is attached.
WARNING LABELS (5 – 8)
5 6
7. Wear solvent-proof rubber gloves.
8. Wear protective eye wear before use

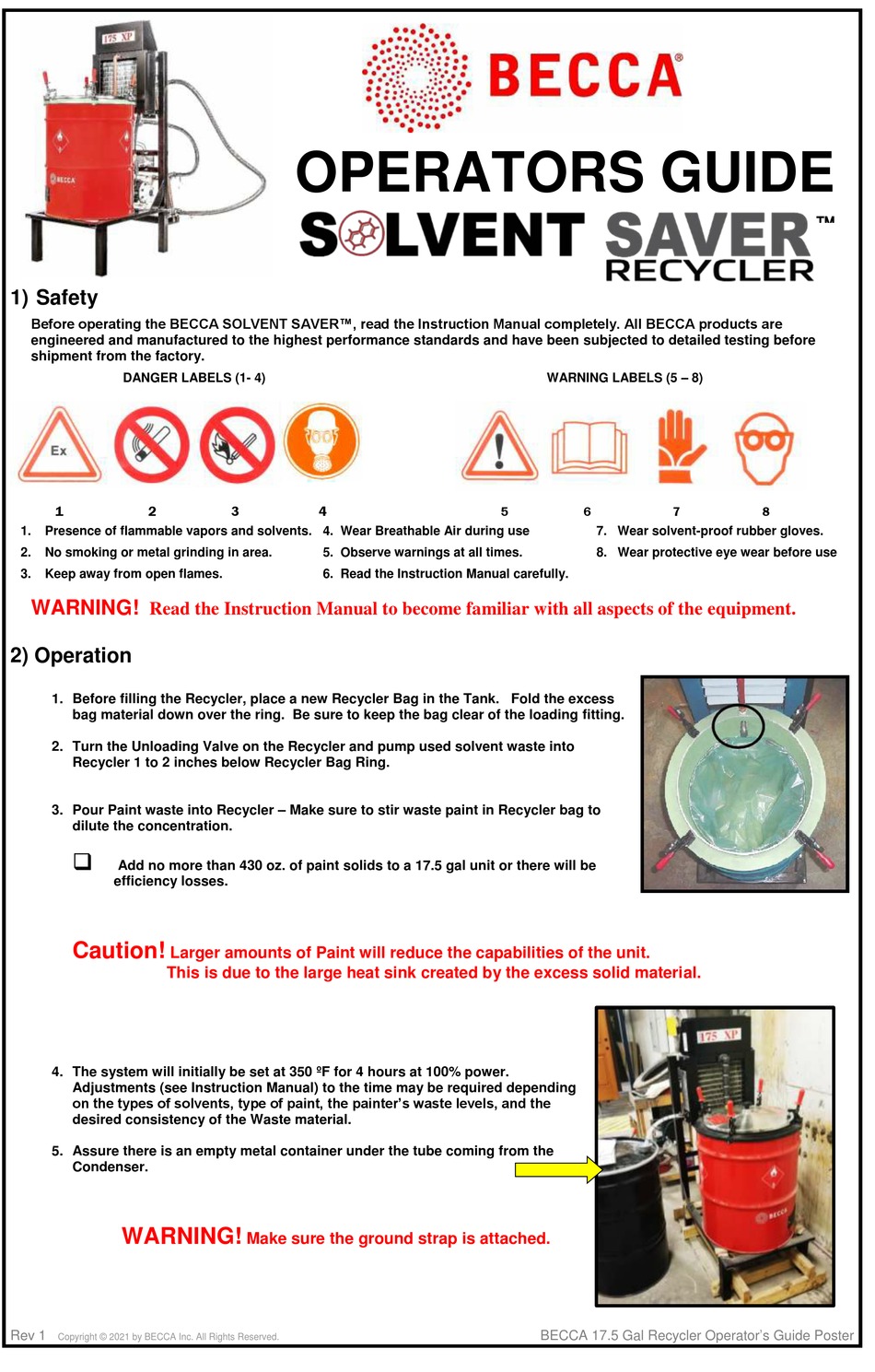

BECCA 17.5 Gal Recycler Operator's Guide Poster

7 8
