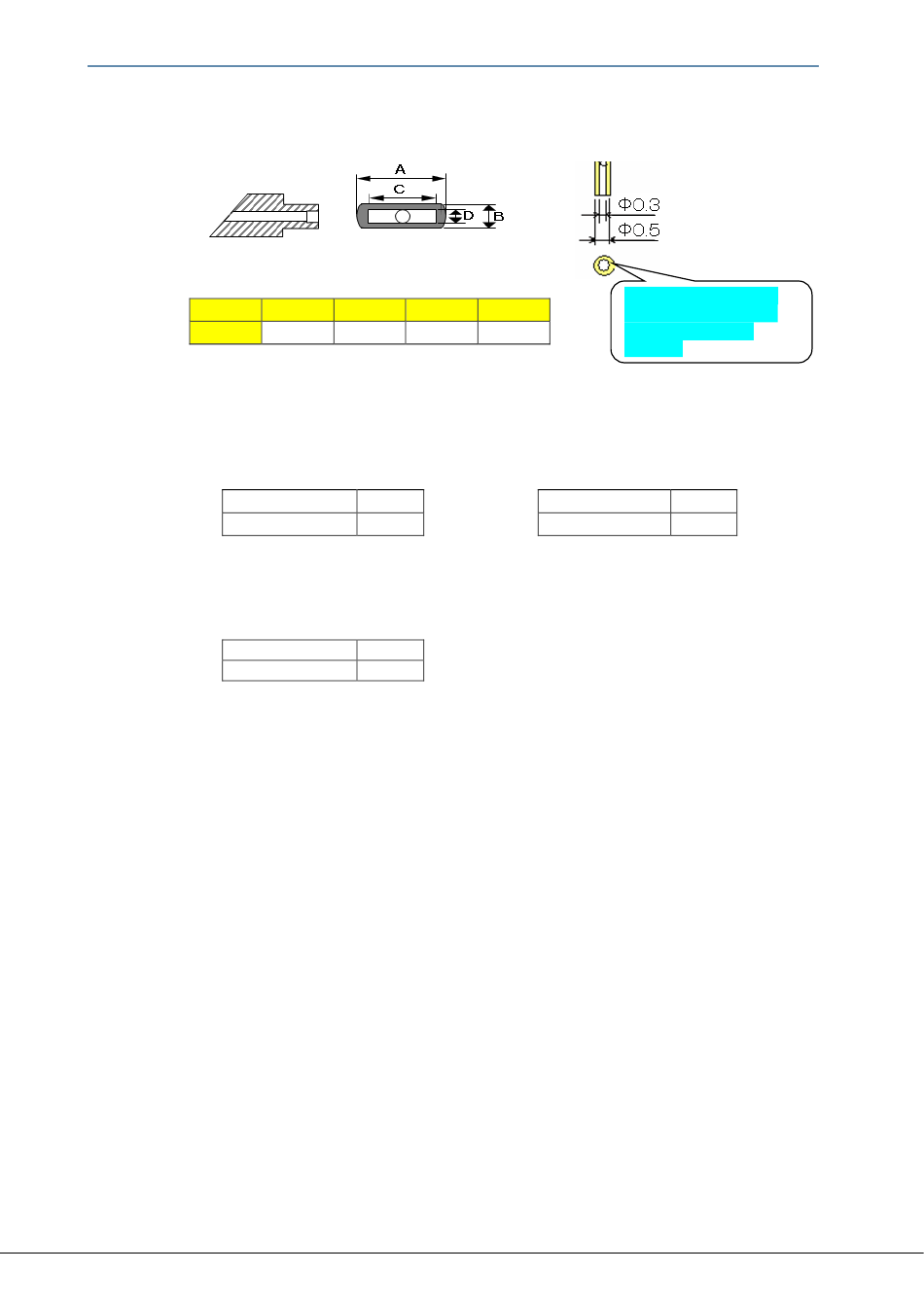

●Examples of suction nozzle shape
① Elongated hole
Pins
6/8
*It is available to suck the connector's whole top surface.
●Connector weight (header)
B01
Mated height：0.6mm
Number of pins
B02
Mated height：0.7mm
Number of pins
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
Operation manual for "High Current connectors B01/B02"
A B C
3.4 1.8 2.0
（Unit；g）
6
Weight 0.004
（Unit；g）
8
Weight 0.005
② Circular hole
(Unit；mm)
Available for less except
D
for the case of connector
turning around when
0.5
mounted.
Mated height：0.8mm
Number of pins
Weight
©
