2) Picking up the header
(1)The suction area on the header is 0.7 mm in the shorter direction.
If it is difficult to reliably insert the nozzle to the connector bottom face
of 0.7 mm widthwise, the header can be picked up by converting the entire
top face of the connector as shown below.

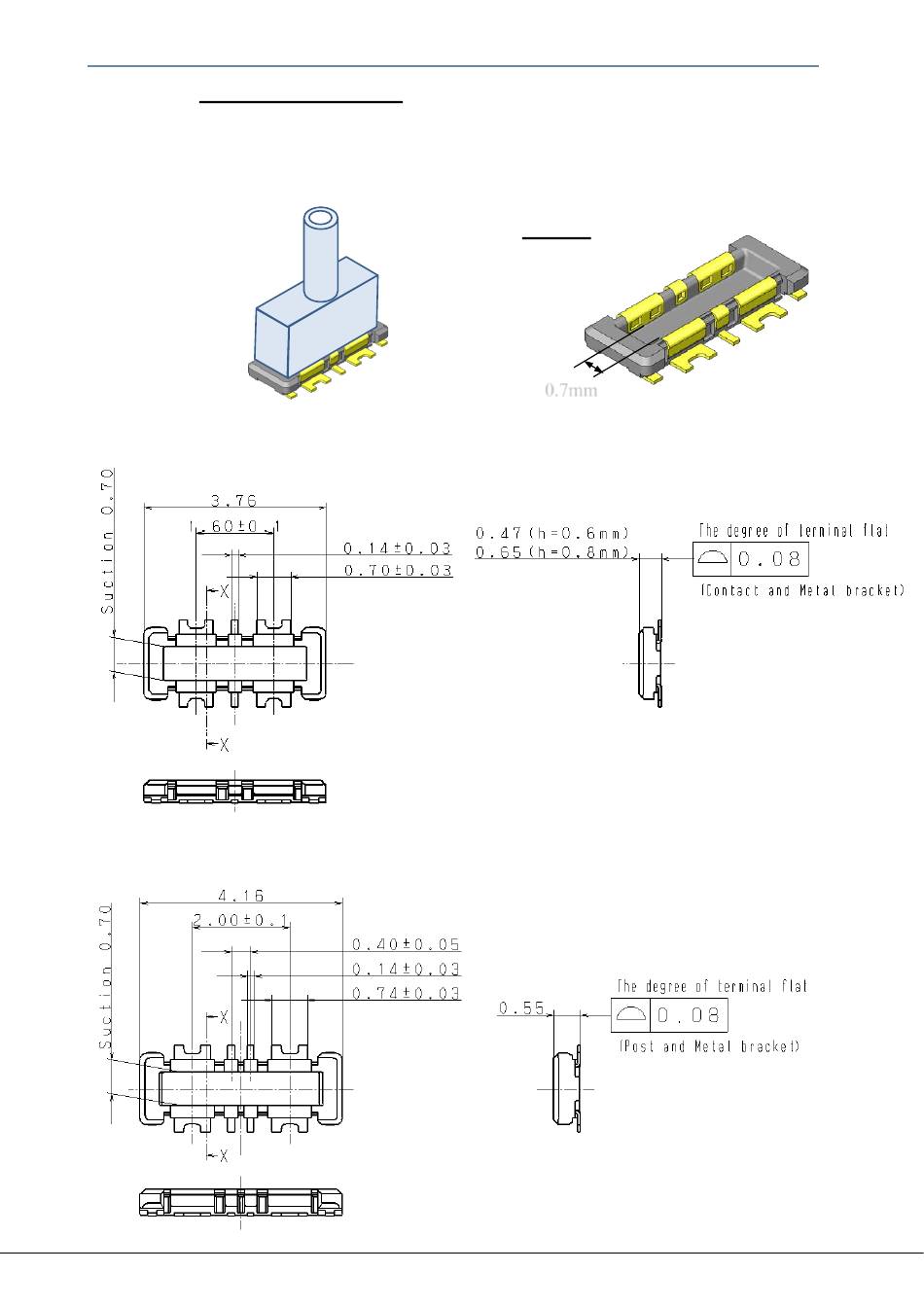

(2)Dimension of the Header
B01
■B01 Mated height: 0.6mm/0.8mm
■B02 M ated height: 0.7mm
