- Page 1 MLS4 MLS4 USER/INSTALLER MANUAL V1.2 REV. 10/2021...
- Page 2 00. CONTENT 01. SAFETY INSTRUCTIONS INDEX ATTENTION: 01. SAFETY INSTRUCTIONS This product is certified in accordance with European Community (EC) safety standards. 02. DEVICE DESCRIPTION This product complies with Directive 2011/65/EU of the FEATURES European Parliament and of the Council, of 8 June 2011, on TECHNICAL SPECIFICATIONS the restriction of the use of certain hazardous substances in electrical and electronic equipment and with Delegated...
- Page 3 01. SAFETY INSTRUCTIONS GENERAL WARNINGS the motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. WARNINGS FOR TECHNICIANS very important. Read all instructions carefully before beginning the installation/usage procedures and keep this manual in a safe place •...
- Page 4 01. SAFETY INSTRUCTIONS RESPONSABILITY • Attach the permanent label for the manual release as close as possible to the release mechanism. • Supplier disclaims any liability if: • Disconnect means, such as a switch or circuit breaker on the electrical •...

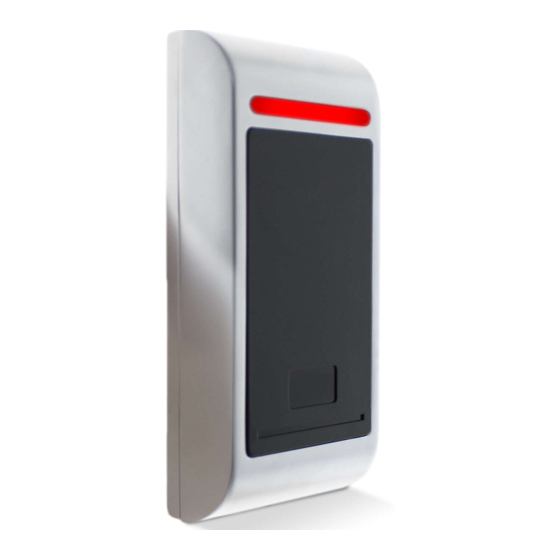

- Page 5 DESCRIPTION DEVICE INSTALLATION MLS4 is a waterproof standalone access control, reading EM&HID card, it uses advanced 1 • Drill the holes according to the distance and the dimension on the back cover, or install Microprocessor, with high-capacity flash memory for 10000 users. Users can be added and the distributing box deleted via admin card, very simple to operate.
- Page 6 03. INSTALLATION AND CONNECTIONS 03. INSTALLATION AND CONNECTIONS STANDALONE FOR A DOOR WITH POWER SUPPLY STANDALONE FOR A DOOR WITH POWER SUPPLY • ELECTRIC LOCK • ELECTROMAGNETIC LOCK MLS4 MLS4 +12V OPEN +12V OPEN External reader External reader +12V +12V...
- Page 7 Connect the two pink wires, then turn on the power. After the sound “didi”, Factory reset is finished. When indication LED turns green, it means you can set the two admin cards. Read MLS4 the first card as admin add card. After that read the second card as admin delete card. Then LED turns red flash, and after that, the device can work normally.
- Page 8 04. CONFIGURATION 04. CONFIGURATION PRODUCT INSTALLATION PRODUCT INSTALLATION Delete users via remote control: Set Anti-passback: Read card to delete Disable anti-passback Press read card read card Press user (factory default) Press Enable hosting anti- 8 or 10 digits card number Press Use card NO.
- Page 9 04. CONFIGURATION 04. CONFIGURATION SOUND AND LIGHT INDICATION ADVANCED APPLICATION 3.1 • Set the necessary functions and add an user card on the host device. OPERATION LED COLOR BUZZER 3.2 • Users can only present the card on the external reader to enter, and then present the Initialization Orange Bip Bip...
