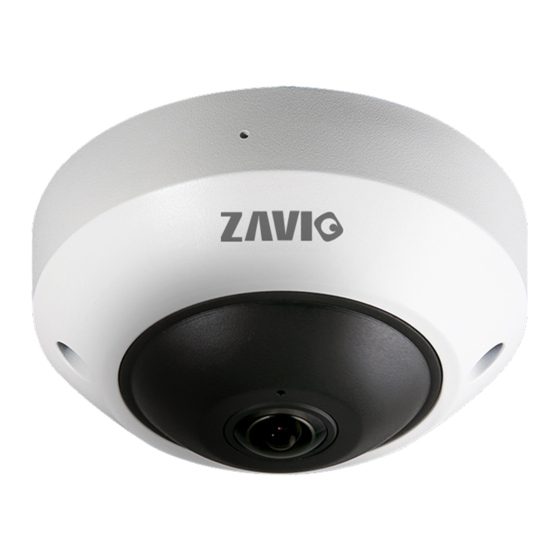

- Page 1 ZAVIO Fisheye Camera Quick Installation Guide...
- Page 2 Power mode. See P.5 Installation of hardware and connection of all cables. See P.5 Windows: Go to Zavio website and download Camera Installation Tool. See P.9 Access the IP Camera using Camera Installation Tool. See P.9 MAC OS: using Safari Browser. See P.12 Lighting environment.
-
Page 3: Physical Overview
Physical overview Top cover Ethernet Socket External I/O connector DC 12V/1A Routing hole Lens MicroSD/SDHC Reset Power LED Indicator Network LED Indicator... -
Page 4: I/O Terminal Block Circuit
I/O Terminal Block Circuit I/O Terminal Block Pin Definition This Camera provides a 6pin cable for external I/O which is used to connect input/ output devices. The pin definitions are described below. Definition Description Max. V/A Black Ground 12V DC Brown + 12V DC 1.2W... -
Page 5: Led Indicator Definition
LED Indicator Definition Color Indication Network Blue Flash blue while Network activity. Steady red for booting up process Blue Steady blue for booting up completion Power Flash purple during firmware upgrading; when reset button pressed for Purple at least 5 sec. to factory default Unlit When you press reset button;... - Page 6 B. Wall mount L-type Bracket installation(optional) 1. Position the L-type at the desired installation location. Drill two holes into the placement and hammer the included screw anchors. 2. Align the two holes on the L-type bracket to the two plastic anchors on the wall or ceiling, insert the supplied screws to the corresponding hole and fix them.
- Page 7 C. Wall mounting and Ceiling mounting 1) Attached the alignment sticker to the wall/ceiling. Drill three holes into the wall, which two for screws and one for cable. 2) Hammer the supplied plastic anchors into the holes. 3) Align the two holes on the base of camera with the two plastic anchors on the wall or ceiling, insert the supplied screws to the corresponding hole and screw them.
- Page 8 D. Wall mounting and Ceiling mounting 1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Connect the IP Camera to a normal Hub / Switch / Router. 2. Power over Ethernet (PoE) 1.
- Page 9 Windows: Go to Zavio Website and download Camera Installation Tool Please go http://www.zavio.com/softwaredownloads.php download “Camera Installation Tool”. And follow the installation process to complete the installation. Access the IP Camera using Camera Installation Tool 1. Please check two settings before using Camera Installation Tool.
- Page 10 b. Browser’s Internet Properties → Privacy → Uncheck Pop-up Blocker 2. Click the Camera Installation Tool Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the desired IP cameras from the list and click Link to IE.
- Page 11 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
- Page 12 6. Click Install 7. Live video will display in the center of your web browser. MAC OS using Safari Browser 1. Select Safari Icon 2. Click Bonjour function and select the camera you wish to access.
- Page 13 3. Enter name and password to login to the IP camera (Default is admin / admin) 4. Live video will display in the center of your web browser.
- Page 14 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
- Page 15 Application of IP Camera...
