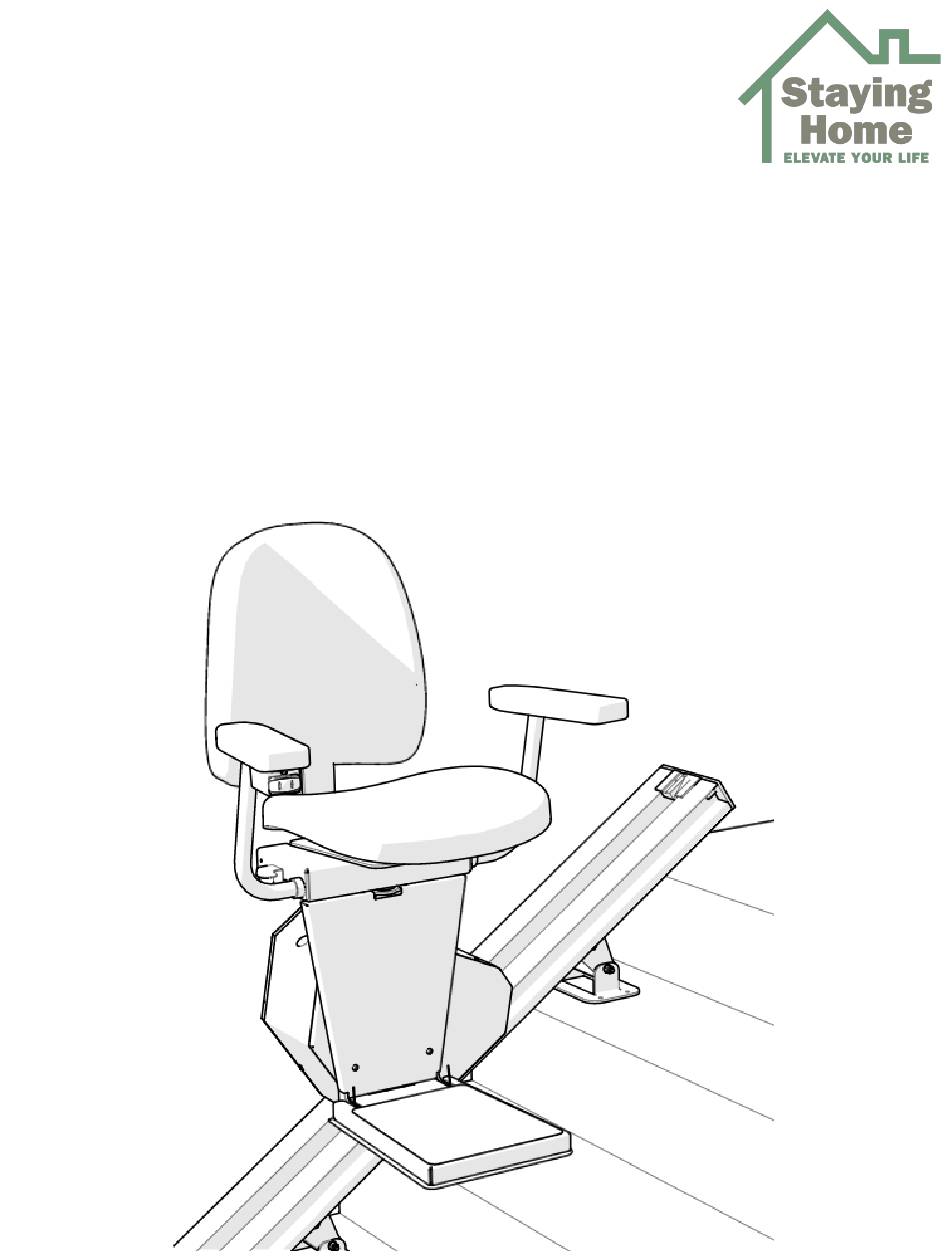

- Page 1 Staying Home Corporation 2501 Anaconda Road Harrisonville, MO 64701 816-380-2427 www.stayinghome.com Model SL19 Installation Manual February 24, 2021 Serial Tag Rev J...
-
Page 2: Preliminary Checks
Preliminary Checks Installation Site Requirements _____ 115 VAC, 60 Hz, 3-wire grounded outlet within 6' of the top of the staircase. * Some states may require dedicated outlet. _____ Stair angle between 25° and 45°. _____ Indoor installation. Included with Shipment Tools Required _____ Aluminum track with gear rack and splice bars _____ Set of nut driver bits... -
Page 3: Typical Components
Typical Components Folding Armrests Unit Control Folding Seat under Armrest Limit Cam Manual Lowering Access Track Bracket Chassis Folding Footrest Extruded Aluminum Track Safety Pan Optional Key Switch Access Panel to Batteries, Etc. LED Diagnostic Indicator Circuit Breaker / Reset Switch Install Switch... - Page 4 Underside of Chassis Upper Limit Switch Final Limit Switch Overspeed Governor Pinion Gear Charging Contact Drive Pinion Gear Lower Limit Switch...
- Page 5 Identify Track Pieces Upper Track Red paint on the end of the gear racks indicates Lower Track that end has been precision machined. Only butt-up the ends of gear racks that are red. If the end is not painted, it must be put toward the end of the track.
- Page 6 Installation Procedures for Stock Units Track Installation: Track and rack should be cut before installing them on the staircase If your track was factory cut, skip ahead to page 7. Tracks are packaged in individual boxes. You will generally have 2-3 sections of track with steel gear rack, (4-6) track mounting brackets located in a small parts box located in seat box, and 1-2 sets of splice bars already pre-mounted on the track.
- Page 7 Right Hand Left Hand Installation Installation Gear rack is always on the right side as you look up from the bottom Apply a light coat of lithium grease on the gear rack and vertical sides of the track .
- Page 8 Splice Track Pieces Together Check the edges of the outside C-channels for rough edges. If there are any burrs, file them off before splicing the track together. Position the splice bars so they are half way inserted into one track. Tighten the set screws in the bars.
- Page 9 Secure the Track to the Stair Treads When the track is installed, there should be a 1" gap between the underside of the track and the stair nosings and 1/4" to 1/2" off the lower landing floor. The track should be at least 4" away from the wall 1"...
- Page 10 Insert the Chassis into the Track Remove the end plate and limit cam from the top end of the track. It is held on by set screws from the bot- tom and sides. Remove the upper most section of gear rack to allow you to slide the chassis into the track easily.
- Page 11 End Cap Place the upper limit cam inside the track Limit and secure by tightening the phillips head screw. Place the end plate onto the end of the track while routing the charge wire through the slot in the bottom of the end plate. Tighten Gear Rack the set screws in the end plate.
- Page 12 Attach Footrest Loosen the (4) socket head screws on the sides of the chassis (2 on each side). Socket Head Screws Temporarily remove the front cover from the footrest assembly (two phillips head screws). Front Cover Phillips Head Screws Footrest Place the footrest assembly onto the two socket Assembly head screws on the chassis.
-
Page 13: Attach Seat
Connect Wireless Receiver Antennae Connect the wire harness from the RF wireless receiver to the mating connector on the backside of the chassis. Tuck the excess wiring into the opening in the chassis and mount the RF receiver to the chassis with the adhesive foam tape. Adjust the position of the antennae as necessary. - Page 14 RF Remote Call-Send Controls The two key fobs (transmitters) have been factory programmed. If you are installing two lifts in the same home, it is not necessary to change the program. However, two lifts cannot be operated from the remote fobs at the same time. Each transmitter and receiver is unique and has its own rolling code.
- Page 15 AUDIO/VISUAL STATUS INDICATIONS The lift is equipped with a chassis mounted 3-color LED display light to indicate the operating condi- tion of the lift. Accompanying this is an audible alarm that will sound accordingly. STATUS LIGHT AUDIBLE ALARM CONDITION RED-YELLOW-GREEN 1 Second beep Power-up Cycle SOLID GREEN...
-
Page 16: Completion Procedures
Completion Procedures SERVICE LINE 877.378.4275 (Mon-Fri 8:00 – 5:00 CST) Completion Checklist The following features must be verified as operational before the stair lift can be released for use: _______ Upper and lower limits: Verify the lift stops automatically at the top and bottom of the track. _______ Charger: Verify that the light on the charger changes from green to amber when the lift is running.
