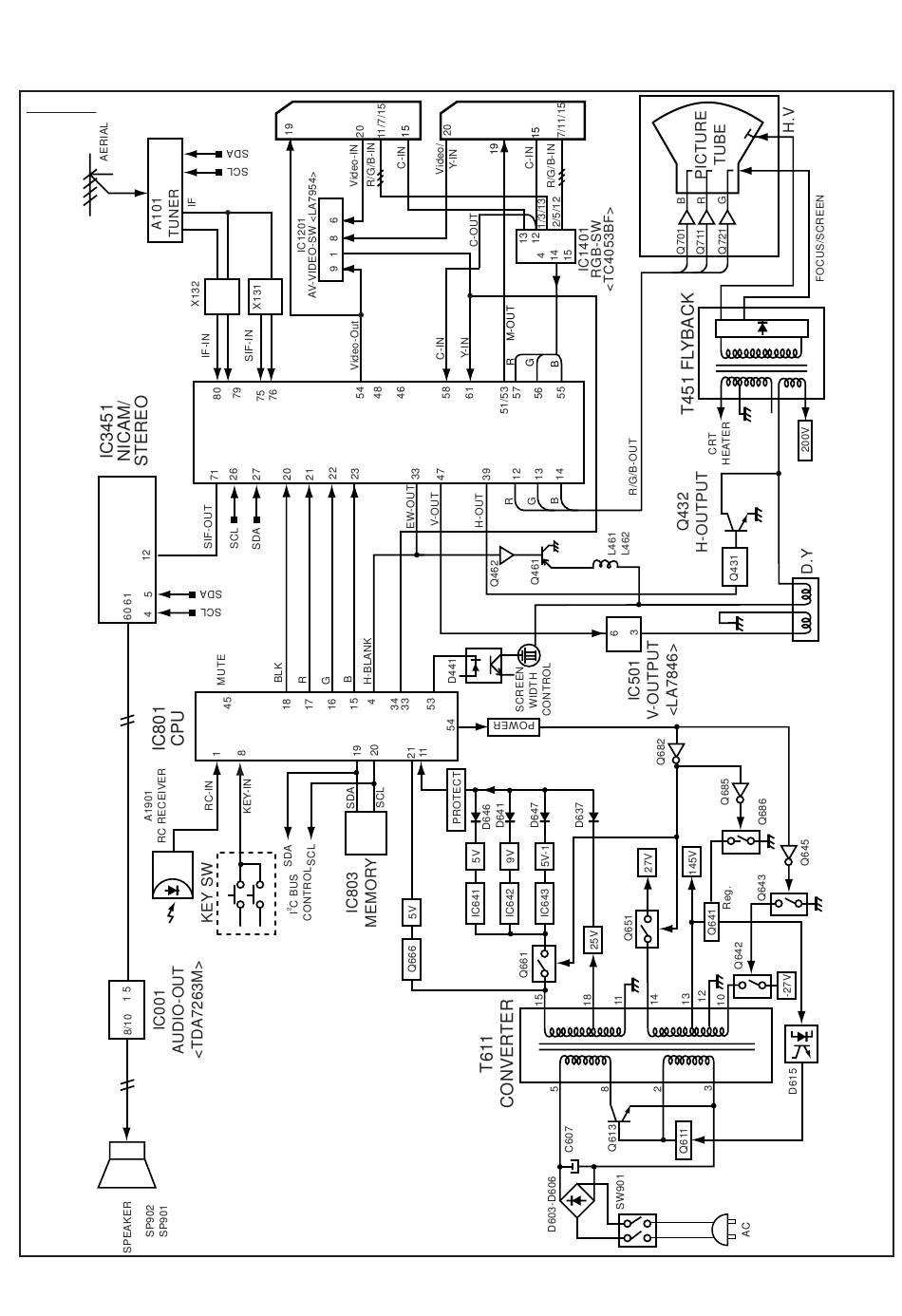

BLOCK DIAGRAM
This is a diagram for all models and therefore differs slightly from the actual block diagram.
Outline
K1001
K1002
SCART SC1
SCART SC2
Video/Y-Out
IC201
IF/VIDEO/CHROMA/DEF
<TB1251>
-3-
C5AJL
