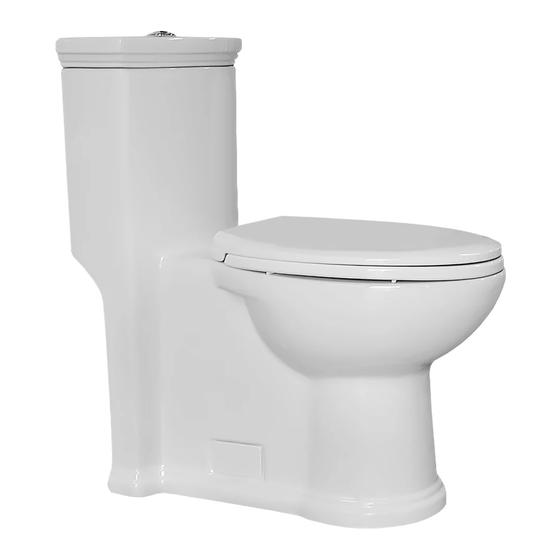

Whitehaus Magic Flush WHMFL3364-EB Product Installation Manual

Troubleshooting:
Malfunctions Reasons
1. The main water valve is not open
2. Incoming water filter net is clogged
• No Incoming Water
3. Fill valve need adjustment
1. High water pressure
2. Flush Valve leaking
3. Water inlet valve is broken
• Non-Stop Incoming Water
1. The water level of fill valve is too low
• Inadequate Flushing Water 2. The push button does not reach pushing point
3. Press the wrong button
1. The drainage outlet is not aligned with the
outside drainage pipe
• Slow Drainage or
2. Drainage pipes are obstructed
Inadequate Suction
1. The nuts of water inlet valve are not
fastened
2. The water supply spacer of inlet valve is
• Leakage
damaged
1. Drainage pipe is obstructed
• Overflow From Drainage Pipe
2. Water outlet pipes are obstructed
Pre-Cautions
1. Do not throw newspaper, diapers, sanitary napkins, or similar articles in the toilet bowl.
2. To maintain the normal flushing function of the toilet, please use a long handle nylon brush and a neutral cleanser
to clean bowl to prevent the accumulation of mineral substances. It is suggested to clean your
toilet once a week.
3. Clean the filter at least once a month to prevent slow water inletting or water blockage in the tank. Clean only
with a mild soap solution. Avoid using any cleaner that is abrasive or caustic.
4. Do not use any cleanser in the tank, otherwise the rubber accessories in the tank may be damaged, causing leakage.
5. Introducing chemicals into the tank cavity including toilet bleach or cleanser tablets will void manufacture's warranty.
6. Do not allow the water closet to freeze while water is present in any component of the fixture.
Please follow what is specified below to avoid discoloration, deformation,
fine cracks, or scratches on the toilet seat:
1. Do not expose the toilet seat to sunlight or sources of heat
2. Do not use sharp or abrasive materials to clean the toilet seat
3. Do not use corrosive chemicals to clean the toilet seat
Solution
1. Turn on the valve
2. Clean the net
3. Readjust fill valve
1. Reduce water pressure
2. Readjust flush valve
3. Call your dealer to replace
inlet valve
Before Installing:
1. Adjust the fill valve to
appropriate position
2. Adjust water level rod
3. Identify small and large
1. Please read instructions carefully prior to installation.
flushing button, or call
your dealer
2. Inspect box and its contents to verify the product is free from damage.
1. Readjust or reinstall the
product
3. Turn off water supply drain and remove existing toilet is necessary.
2. Clean the drainage pipes
4. Use an old rag to temporarily stuff in closet flange hole to block sewer gas
1. Fasten the nuts
2. Change the water supply
spacers
5. Verify that the closet flange is clean and is free from any foreign substance
1. Clean the drainage pipes
2. Clean the water outlet pipes
NOTE: 1. We reserve the right to change the features, packing and fittings of
Common Tools Needed:
Magic Flush Product Installation Manual
®
WHMFL3364-EB
from entering premises.
(paint, drywall mud, old wax ring, etc.). If necessary, use a putty knife to
clean surface of the closet flange.
the product without notice.
2. Please keep the installation instructions accessible (including
installation procedure, fitting form, troubleshooting, and notice).
3. Closet flange is not included.
• Monkey Wrench • Screw Driver
• Pipe Wrench • Hacksaw
• Tapeline • Sinker
• Percussive Drilling • Water Supply Valve
• Level • Connecting Soft Pipe
• Silicone
• Flange
• Toilet Shims
