3 use the compressor in a well ventilated area and ensure that it is placed on a firm, level surface.
7 DO NOT use this product to perform a task for which it is not designed.
7 DO NOT deface the certification plate attached to the compressor tank.
7 DO NOT cover the compressor or restrict air flow around the machine whilst operating.
 DANGER! DO NOT direct the output jet of air towards people or animals.
7 DO NOT operate the compressor without an air filter.
7 DO NOT allow anyone to operate the compressor unless they have received full instructions.
 WARNING! The air tank is a pressure vessel and the following safety measures apply:
7 DO NOT tamper with the safety valve and DO NOT modify or alter the tank in any way and DO NOT strap anything to the tank.
7 DO NOT subject the tank to impact, vibration or to heat and DO NOT allow contact with abrasive or corrosive materials.
3 DO drain condensation from tank daily and inspect inside walls for corrosion every three months. Have a detailed tank
inspection carried out annually. The tank shell must not fall below the certified thickness at any point..
 WARNING! If an electrical fuse blows, ensure that it is replaced with one of identical type and rating.
3 When not in use, disconnect from the mains, vent the tank and store the compressor in a safe, dry, childproof location.

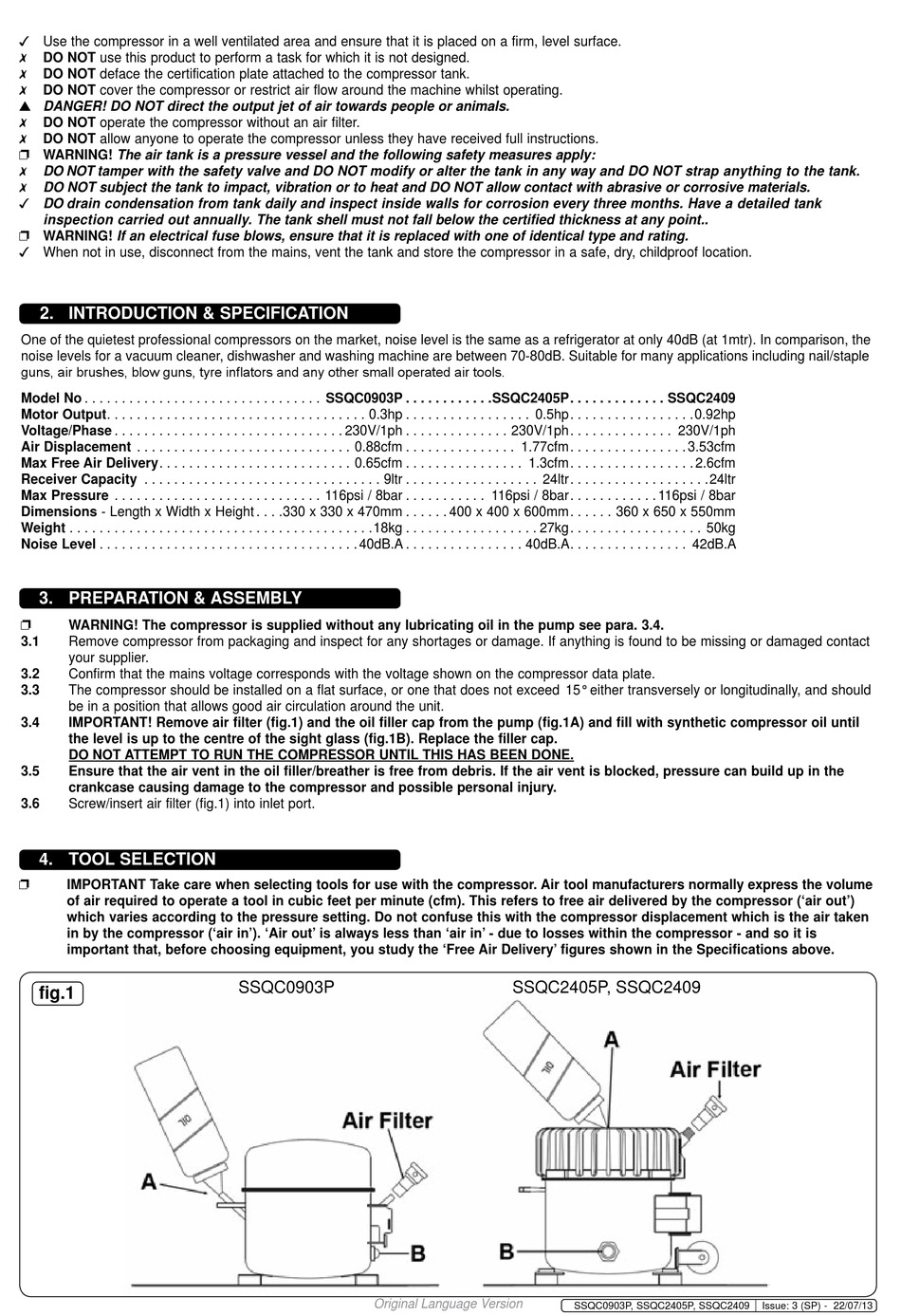

2. INTRODUCTION & SPECIFICATION
one of the quietest professional compressors on the market, noise level is the same as a refrigerator at only 40dB (at 1mtr). In comparison, the
noise levels for a vacuum cleaner, dishwasher and washing machine are between 70-80dB. suitable for many applications including nail/staple
guns, air brushes, blow guns, tyre inflators and any other small operated air tools.
Model No . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SSQC0903P . . . . . . . . . . . .SSQC2405P. . . . . . . . . . . . . SSQC2409
Motor Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3hp . . . . . . . . . . . . . . . . . 0.5hp. . . . . . . . . . . . . . . . .0.92hp
Voltage/Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230V/1ph . . . . . . . . . . . . . . 230V/1ph. . . . . . . . . . . . . . 230V/1ph
Air Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.88cfm . . . . . . . . . . . . . . . 1.77cfm. . . . . . . . . . . . . . . . 3.53cfm
Max Free Air Delivery. . . . . . . . . . . . . . . . . . . . . . . . . . 0.65cfm . . . . . . . . . . . . . . . . 1.3cfm. . . . . . . . . . . . . . . . . 2.6cfm
Receiver Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9ltr . . . . . . . . . . . . . . . . . . 24ltr. . . . . . . . . . . . . . . . . . .24ltr
Max Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116psi / 8bar . . . . . . . . . . . 116psi / 8bar. . . . . . . . . . . . 116psi / 8bar
Dimensions - length x Width x Height . . . .330 x 330 x 470mm . . . . . . 400 x 400 x 600mm. . . . . . 360 x 650 x 550mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18kg . . . . . . . . . . . . . . . . . . 27kg. . . . . . . . . . . . . . . . . . 50kg
Noise Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40dB.a . . . . . . . . . . . . . . . . 40dB.a. . . . . . . . . . . . . . . . 42dB.a
3. PREPARATION & ASSEMBLY

WARNING! The compressor is supplied without any lubricating oil in the pump see para. 3.4.
3.1 remove compressor from packaging and inspect for any shortages or damage. If anything is found to be missing or damaged contact
your supplier.
3.2 confirm that the mains voltage corresponds with the voltage shown on the compressor data plate.
3.3 the compressor should be installed on a flat surface, or one that does not exceed 15° either transversely or longitudinally, and should
be in a position that allows good air circulation around the unit.
3.4 IMPORTANT! Remove air filter (fig.1) and the oil filler cap from the pump (fig.1A) and fill with synthetic compressor oil until
the level is up to the centre of the sight glass (fig.1B). Replace the filler cap.
DO NOT ATTEMPT TO RUN THE COMPRESSOR UNTIL THIS HAS BEEN DONE.
3.5 Ensure that the air vent in the oil filler/breather is free from debris. If the air vent is blocked, pressure can build up in the
crankcase causing damage to the compressor and possible personal injury.
3.6 screw/insert air filter (fig.1) into inlet port.

4. TOOL SELECTION


IMPORTANT Take care when selecting tools for use with the compressor. Air tool manufacturers normally express the volume
of air required to operate a tool in cubic feet per minute (cfm). This refers to free air delivered by the compressor ('air out')
which varies according to the pressure setting. Do not confuse this with the compressor displacement which is the air taken
in by the compressor ('air in'). 'Air out' is always less than 'air in' - due to losses within the compressor - and so it is
important that, before choosing equipment, you study the 'Free Air Delivery' figures shown in the Specifications above.
fig.1
ssQc0903P
Original Language Version
ssQc2405P, ssQc2409
ssQc0903P, ssQc2405P, ssQc2409 Issue: 3 (sP) - 22/07/13
