Thank you for purchasing our fine product!
This package contains all tools necessary for assembly.
WARNING
: Failure to follow these directions and warnings can result in serious injury
and/or product damage.
!
Assistance is required to assemble this chair.
!
Never stand on the chair or use it as a ladder.
!
Do not tip the chair when seated.
!
Periodically re-tighten all bolts and legs.
!
Do not exceed 250 lbs. (113.4 kg) weight limit on the chair.
!
If any parts become missing, damaged or worn, discontinue use until they are replaced with
identical parts.
!
Always seek assistance before moving furniture.

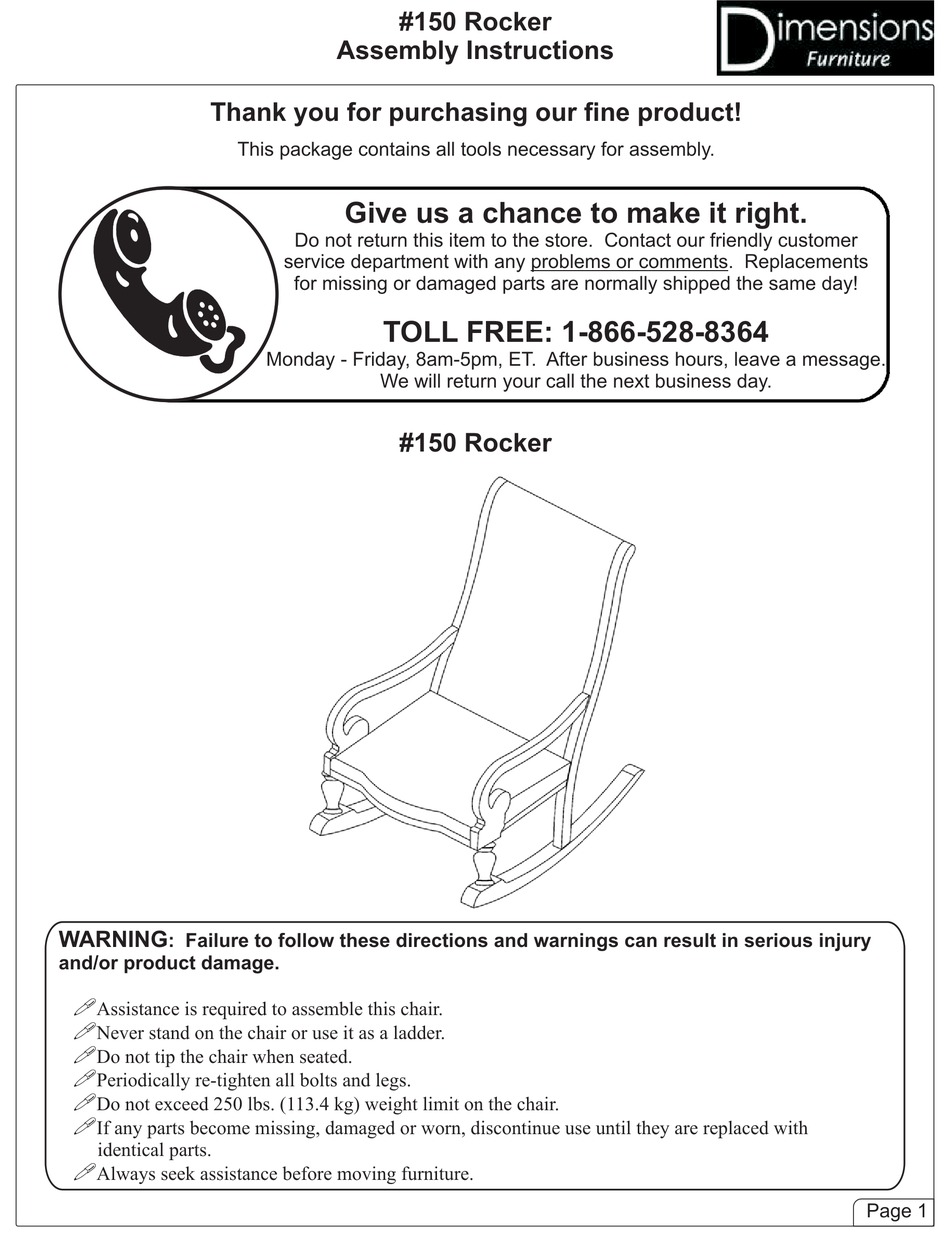

#150 Rocker
Assembly Instructions
Give us a chance to make it right.
Do not return this item to the store. Contact our friendly customer
service department with any
for missing or damaged parts are normally shipped the same day!
TOLL FREE: 1-866-528-8364
Monday - Friday, 8am-5pm, ET. After business hours, leave a message.
We will return your call the next business day.
#150 Rocker
problems or comments
. Replacements
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150 Rocker and is the answer not in the manual?

Questions and answers

Summary of Contents for Dimensions Furniture 150 Rocker

  • Page 1 #150 Rocker Assembly Instructions Thank you for purchasing our fine product! This package contains all tools necessary for assembly. Give us a chance to make it right. Do not return this item to the store. Contact our friendly customer service department with any problems or comments .
  • Page 2 #150 Rocker Assembly Instructions PARTS LIST Part Part Name Qty. Part Part Name Qty. Drawing Drawing BACK SEAT FRAME FRAME LEFT RIGHT FRONT ROCKER WOOD LONG BOLT PLUG W/ WASHERS ALLEN SHORT BOLT W/ WASHERS WRENCH Step 1 - Remove all parts from their packaging and confirm that the quantities match those listed above.
  • Page 3 #150 Rocker Assembly Instructions Step 2 - Set the Back Frame (Part A) back-side down on a soft, flat surface such as a carpeted floor. H - Long Bolt Step 3 - With help, align the bolt holes in the back of the Seat Frame (Part B) with the bolt holes in the Back Frame.
  • Page 4 #150 Rocker Assembly Instructions Step 8 - Align the bolt hole in the Right Arm (Part C), with the bolt hole in the right side of the back frame. Step 9 - Hand thread a Short Bolt with Washers (Part I) through the Back Frame and into the Right Arm.
  • Page 5 #150 Rocker Assembly Instructions Step 13 - Align the bolt holes in a Rocker (Part F) with the bolt hole in the right-side Front Leg and Back Frame. The front bolt hole in the Rocker aligns to the Front Leg.
