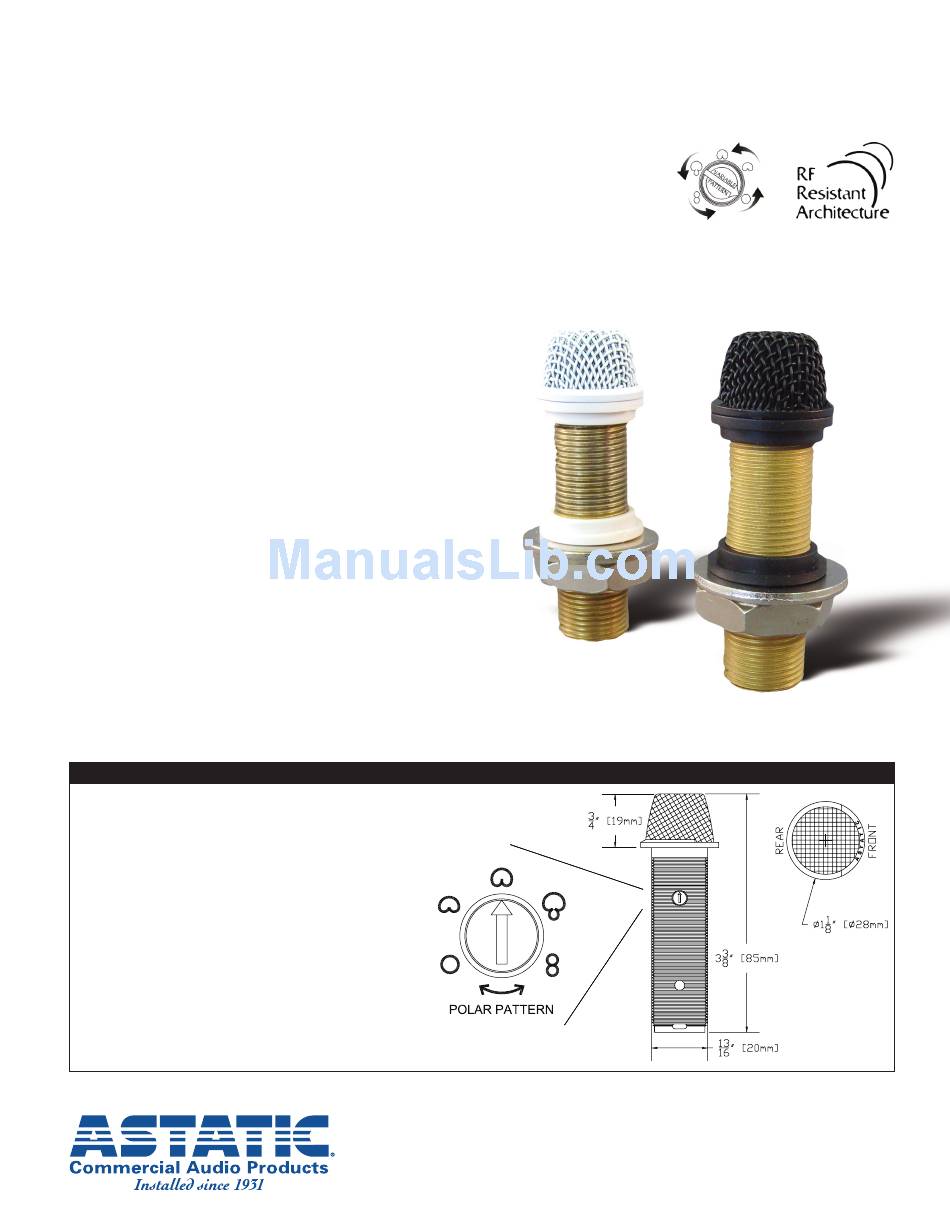

Astatic 220VP Specifications

220VP/220VPW
Continuously-variable Pattern Condenser Boundary Microphone
Description

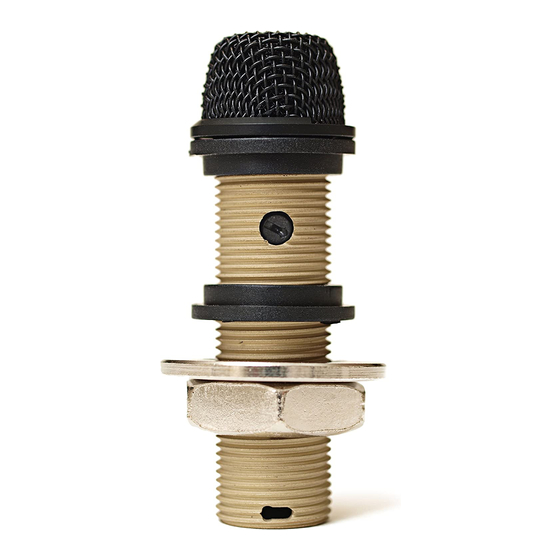

The 220VP/220VPW is an inconspicuous, continuously-variable
polar pattern, button-style, condenser boundary microphone
designed for surface installation. Special attention has been
given to design the 220VP to resist interference from cell
phones, two-way communication, and other RF devices. The
integral 80Hz, 12dB/octave high-pass filter removes unwanted
low-frequency energy to improve intelligibility. The all metal,
threaded body and shock-absorbing bushings make for easy
installation in surfaces up to 3" thick.
When mounted on a hard surface, the 220VP will take
advantage of the "boundary effect" signal-to-noise ratio
increase. The 220VP is terminated with a standard 3-pin
XLRM-type connector recessed in the body of the microphone.
The 220VP features a continuously-variable polar pattern so
it can shorten the list of products an audio system designer
needs to consider when boundary condenser microphones
are specified. The installer can precisely tailor the polar pattern
for the best performance depending upon the application
or environment. The 220VP is primarily designed for speech
and vocal pickup in governmental, institutional, religious and
business applications.
Features
• Continuously-variable polar pattern control
• Securable polar-pattern control
• All-metal housing suitable for commercial applications
• Mounting hardware included
• RF (radio frequency) Resistant Architecture
• Integrated high-pass filter for elimination of
unwanted low-frequency energy
• Shock-absorbing polymer bushings included
• Inconspicuous design
1. Refer to dimensional drawing for dial orientation.
2. Adjust dial to desired polar pattern using a 1/8"
[3mm] flat-head precision screwdriver.
3. Install microphone.
Installation Note:
The mounting hole should be 15/16" [24mm]
in diameter to accommodate microphone
and polymer bushings.
Polar Pattern Adjustment
