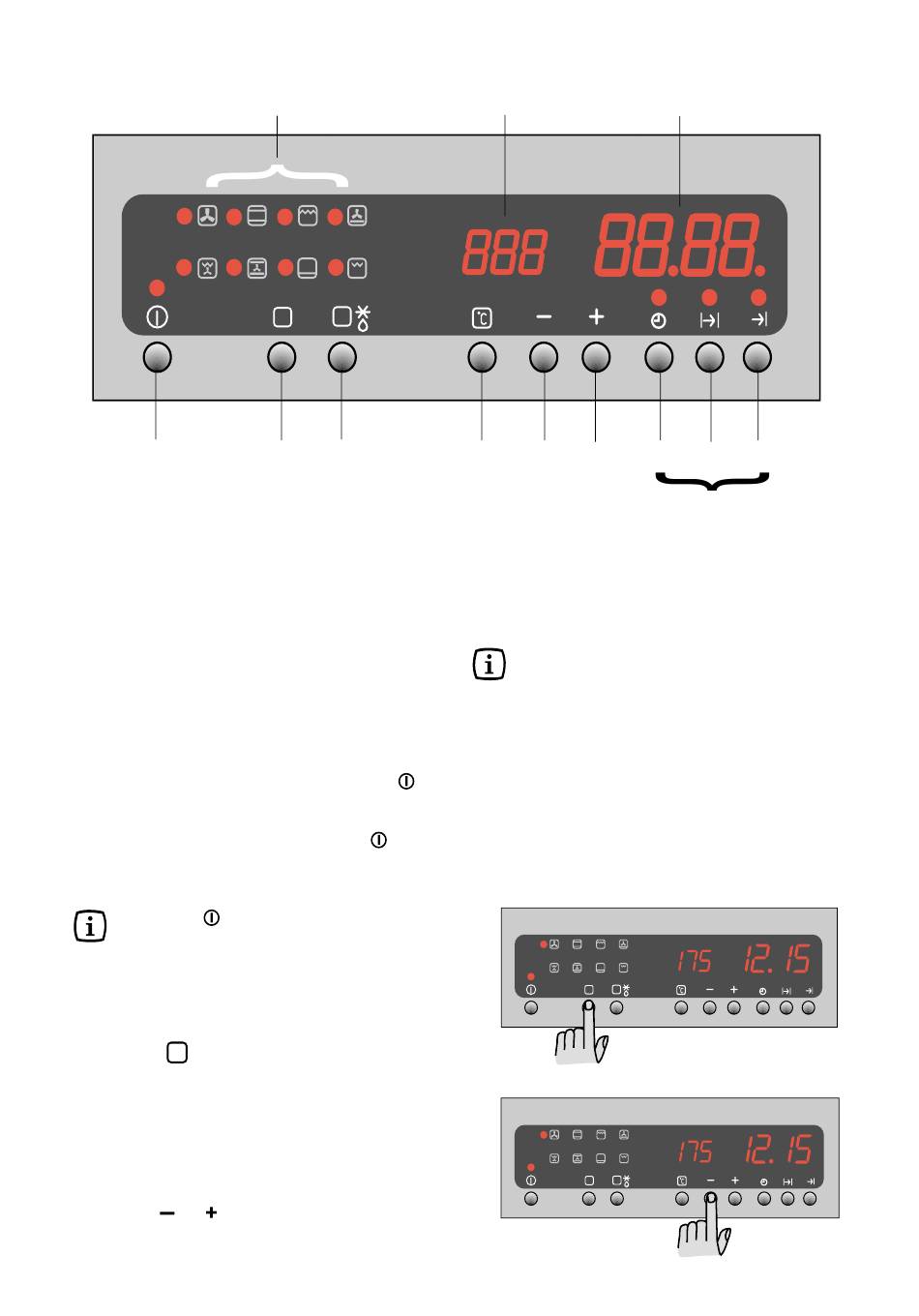

Control Panel

Cooking Function Display
1
Push Buttons
1. ON / OFF
2. Oven Function Control
3. Fast Heat Up / Defrost Function
4. Temperature Control / Current Temperature
5. Decreasing Control (Time or Temperature)
6. Increasing Control (Time or Temperature)
7. Minute Minder
8. Cooking Time
9. End of Cooking Time
"On/Off" Push Button
The oven must be switched on before setting any
cooking function or programme. When button
pressed, the pilot light above will come on, and the
oven light will switch on.
To switch off the oven, you can press button
time. Any cooking function or programme will stop, the
oven light will switch off and the time display will show
the time of day only.
When button is pressed, the display will show
the current internal temperature if the oven has
not completely cooled down.
Oven Function Control Push
Button
Push button allows you to select the cooking
function. Each time you push this button, a pilot light
will come on in the Oven Function Display, showing
which cooking function has been chosen.
Increase and Decrease Push
Buttons
Push buttons and allow you to increase or decrease
temperature or time settings.
All manuals and user guides at all-guides.com
Temperature display
B
2 3
is
at any
Time display
4 5 6
All the oven functions are controlled by an electronic
programmer.
You can select any combination of cooking function,
cooking temperature and automatic timing.
In the event of a power failure, the programmer
will keep all the settings (time of day, programme
setting or program in operation) for about 3
minutes. If power is not restored within 3 minutes,
all the settings will be cancelled. When the power
is restored, the numbers on the display will flash,
and the clock/timer has to be reset.
B
B
7 8 9
Programming
Controls
5
