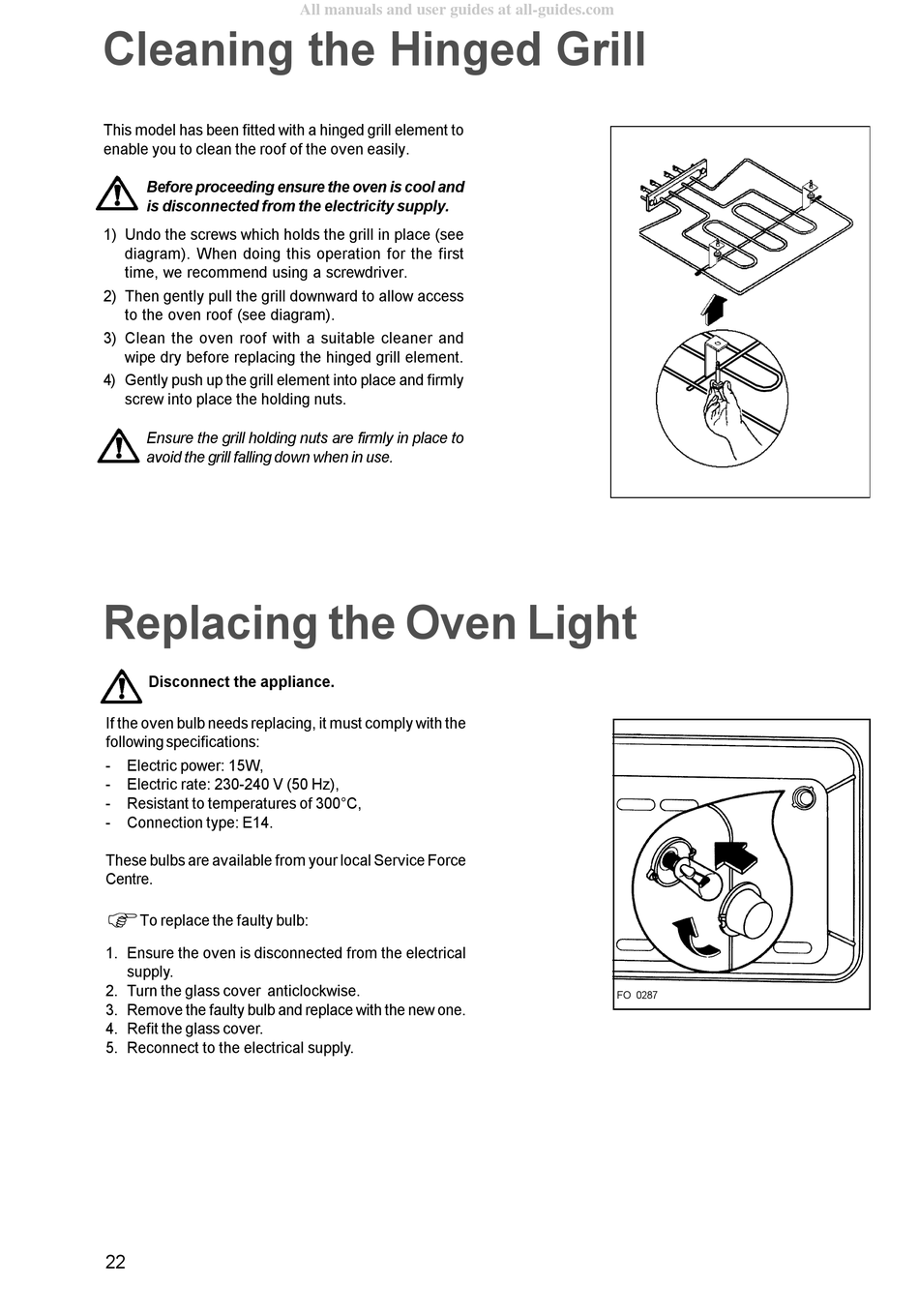

Cleaning the Hinged Grill

This model has been fitted with a hinged grill element to
enable you to clean the roof of the oven easily.
Before proceeding ensure the oven is cool and
is disconnected from the electricity supply.
1) Undo the screws which holds the grill in place (see
diagram). When doing this operation for the first
time, we recommend using a screwdriver.
2) Then gently pull the grill downward to allow access
to the oven roof (see diagram).
3) Clean the oven roof with a suitable cleaner and
wipe dry before replacing the hinged grill element.
4) Gently push up the grill element into place and firmly
screw into place the holding nuts.
Ensure the grill holding nuts are firmly in place to
avoid the grill falling down when in use.

Replacing the Oven Light

Disconnect the appliance.
If the oven bulb needs replacing, it must comply with the
following specifications:
- Electric power: 15W,
- Electric rate: 230-240 V (50 Hz),
- Resistant to temperatures of 300°C,
- Connection type: E14.
These bulbs are available from your local Service Force
Centre.
F
To replace the faulty bulb:
1. Ensure the oven is disconnected from the electrical
supply.
2. Turn the glass cover anticlockwise.
3. Remove the faulty bulb and replace with the new one.
4. Refit the glass cover.
5. Reconnect to the electrical supply.
22
