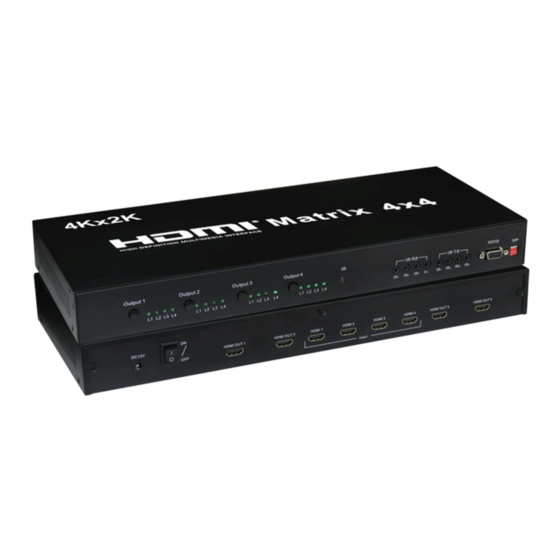

- Page 1 USER MANUAL 4x4 HDMI Matrix Support 4K, bi-directional IR control, RS232 Enjoy vivid video world V1.1...
- Page 2 HDCP or not. Extra infrared receiver extension, IR emitter, RS232 are supplied for remote control. HDMI matrix 4x4 has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss. This HDMI matrix offers...
- Page 3 Physical interface diagram ① : Power Input ② : Power switch ③ : Output1 ④ : Output2 ⑤ : Input:4 Ports HDMI input ⑥ : Output3 ⑦ : Output4 ① : Output selection ② : the LED of input for output 1-4 ports ③...
- Page 4 Typical Application ① is 4 HDMI signal source input, connect ① to HDMI Matrix 4x4 via HDMI cable, connect the back of HDMI Matrix to 4 TVs(② ) by HDMI cable ③ is 4 IR transmitter ，④ is 4 IR receiver.
- Page 5 RS232 remote control...
- Page 6 EDID setting Position 1 Position 2 Position 3 Function 4Kx2K 2CH(Note1) 1080P 3D stereo 2CH (Note 2) 1080P stereo 2CH (Note 3) 1080I stereo 2CH (Note 4) 1080P stereo 5.1CH(Note 5) 1080P stereo 7.1CH(Note 6) 1080P 3D stereo 2CH(Note 7)
- Page 7 1080P 3D stereo 2CH(Note 7) Note1: The matrix will use the embedded 4Kx2K-stereo 2ch EDID When the DIP switch is in this mode Note2: The matrix will use the embedded 1080P-stereo 3D compatible EDID when the DIP switch is in this mode. Note3: The matrix will use the embedded 1080P-stereo2ch EDID when the DIP switch is in his mode.
- Page 8 Input and output DDC signal……………………………………………..5Volts p-p (TTL) Max working current………………………………………………………………………2.0A Power adapter format ……………input:AC(50HZ, 60HZ) 100V-240V;output: DC12V/5A Operating Temperature range……..…………….…………………………… (-15 to +55℃ ) Working humidity range………………………….….………5 to 90%RH (No Condensation) Dimension (L x W x H) ……………………………….……………………410*170*45(mm) Weight….………………………………………………………..…………….………..1850g Operating and Connecting §1 Connect HDMI cable from HDMI source device into HDMI matrix input port §2 Connect HDMI cable from HDMI matrix Output port into display §3.Connect 12V External power adapter to the HDMI matrix...
- Page 9 adapter plug when not use for a long time) 6. Please do not open the machine cover, do not touch any device in the machine. 7. Please use the power adapter provided or approved by the manufacturer The Package includes: 1.
