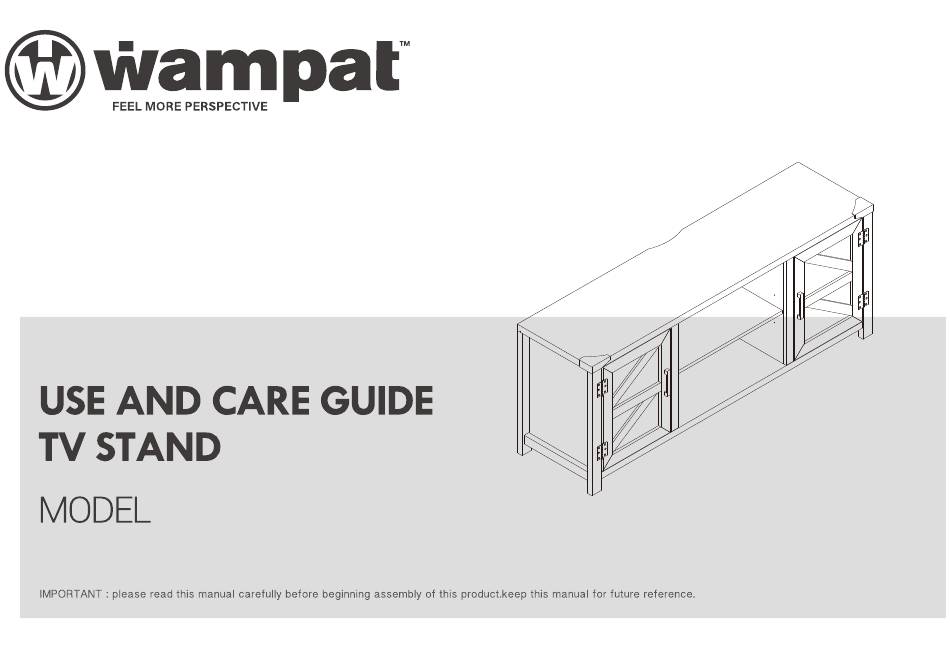

- Page 1 MTS31501...
- Page 2 Free replacement of damage Support @ s-wampat.com...
- Page 4 This illustration shows how the CAM fastening system works. B x 24 A x 24 C x 22 D x 4 Esta ilustración muestra como funciona el sistema de fijación de leva. Cette illustration montre comment le système de fixation de la CAME fonctionne DO NOT OVER TIGHTEN.
- Page 5 Screw cam bolts(A)into legs(1 ,2 ,3 ,4 )
- Page 6 Insert dowels(C) into panels(3,6),then insert and secure cam lock(B) to side panel (3,6)to lock it.
- Page 7 Screw cam bolts(A)into legs(7)，Insert dowels(C) into panels(8,9), then insert and secure cam lock(B) to side panel (8,9)to lock it.
- Page 8 Assemble the foot(I),then attach foot(I) to panel(10) using screws(J)
- Page 9 Insert dowels(C) into panels(8,9),then attach panels(8,9) to panel(10) using screws(H)
- Page 10 Screw cam bolts(A)into panels(3,6 )
- Page 11 Insert dowels(C) into panels(10),then attach panels(3,6) to panel(10);Insert and secure cam lock(B) to panel (10)to lock it. Secure shackles (D) to legs (1,2,3,4) ×4 ×4 ×4...
- Page 12 Slide parts(11) into designated area.
- Page 13 Screw parts(A)into panel(13); Attach part(F) to panel(13) . × 8 ×2...
- Page 14 Insert dowels(C) into panels(3,6,8,9),then attach panel(13) to panels(3,6,8,9);Insert and secure cam lock(B) to panels(3,6) to lock it. ×8 ×8...
- Page 15 1 11 Screw parts(N)into legs(2,4)and panels(13,10).
- Page 16 1 12 Screw parts(L,M) into doors(15,16). Then attach parts(K) to doors(15,16)) using screws(E).
- Page 17 Attach doors(15,16) to legs(1,5)) using screws(E).
- Page 18 Attach panel(14) to panel(8,9)) using parts(G). To prevent TV cabinet from toppling, install parts(O).
- Page 20 Dear customer: Support @ s-wampat.com Thanks for your purchase in our store. Any questions, please contact us via with below details: 1.Purchase platform & order number 2.Model number & Instruction version# 3.The detailed photo (faulty part, damage part, if some parts are missing, please circle it/them on the manual instruction) and send us.
