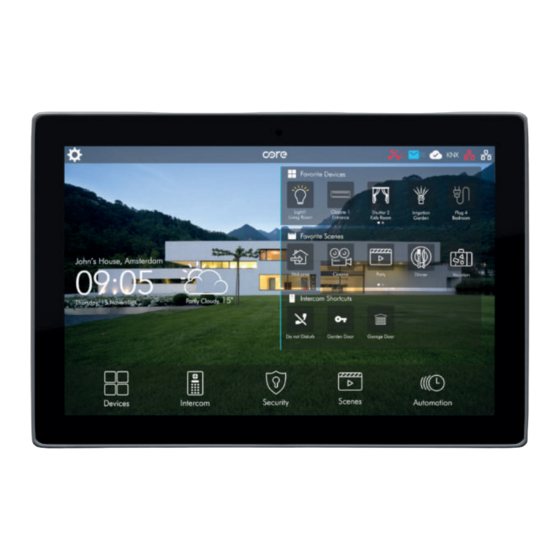

- Page 1 CORE ECLIPSE 10” QUICK START GUIDE PACKAGE CONTENTS Core Eclipse 10” Touch Panel Quick Start Guide Connectors Screws DEVICE MODELS: CR-TS-07-BSC and CR-TS-07-KNX DOCUMENT VERSION: 1.0...
- Page 2 PRODUCT OVERVIEW Core Eclipse is designed as all-in-one controller to meet needs for residential buildings. It works as smart home controller and monitoring panel, SIP Intercom Indoor Panel and Security Panel in today’s and tomorrow’s smart homes. Smart Home Controller: Eclipse Panel can be connected to multiple interfaces to control and monitor smart devices from different protocols.
- Page 3 RS-485: Connection to RS-485 connected devices RS-232: Connection to R-232 connected device Note: Core Eclipse is able to connect to two different IP networks at the same time. This feature allows to isolate home and building networks in buildings. CONFIGURATION Eclipse Panel is configured via built-in web interface.
- Page 4 Adjust magnets for perfect fit Mounting Magnet Mount Touch Panel panel wall Manufactured by Kor Ev Otomasyon Sistemleri San.Tic.Ltd.Şti. Address Fatih Mahallesi Ege Caddesi A2 Blok No:42/5 Gaziemir İzmir Türkiye Core is trademark of KOR Ev Otomasyon Sistemleri San.Tic.Ltd.Şti.
