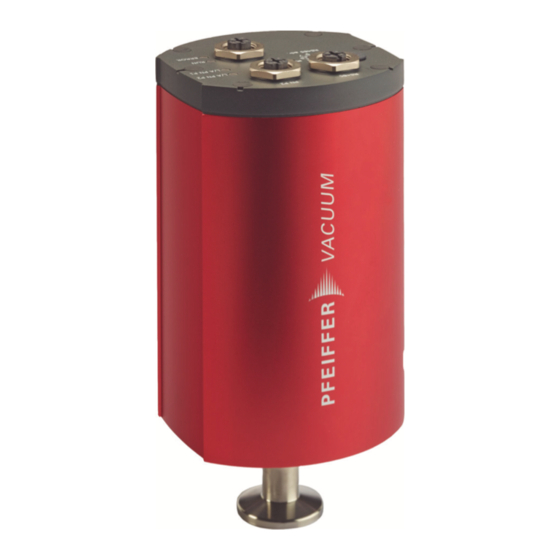

- Page 1 SUPPLEMENTARY INFORMATION Translation of the Original XPT 200 PN ∣ CCT 36X PN ∣ CCT 37X PN DigiLine gauge with Profinet interface...
- Page 2 Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new gauge is designed to support you in your individual application with maximum performance and without malfunctions. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity 1.1.1 Applicable documents 1.1.2 Variants Conventions 1.2.1 Abbreviations Trademark proof Product description Function 2.1.1 Structure of the CCT gauge 2.1.2 Structure of the xPT gauge "Profinet" connection Installation Establishing electric connection Configuring Profinet connection for CCT gauges Configuring Profinet connection for xPT gauges Operation... - Page 4 List of tables List of tables Tbl. 1: Applicable documents Tbl. 2: Abbreviations used Tbl. 3: Profinet data types Tbl. 4: Input data: Gauge to Profinet master Tbl. 5: Input data: Transmitter status and type Tbl. 6: Input data: Transmitter warnings and errors Tbl.
- Page 5 List of figures List of figures Fig. 1: Structure of the CCT gauge Fig. 2: Structure of the xPT gauge Fig. 3: "Profinet" connection assignment Fig. 4: Connection to Profinet and the voltage supply Fig. 5: Importing GSDML file Fig. 6: Dragging and dropping CCT gauge into network area Fig.
-
Page 6: About This Manual
● DigiLine gauge with Profinet interface The part number is found on the rating plate of the product. Pfeiffer Vacuum reserves the right to make technical changes without prior notification. Information that relates to only one of the products is indicated accordingly. -
Page 7: Trademark Proof
About this manual Abbreviation Explanation DHCP Communication protocol for assigning the network configuration (Dynamic Host Communication Protocol) Gas correction factor Generic station description GSDML Generic station description markup language Hexadecimal High vacuum I&M 5 Identification and maintenance data set 5 Identification Module identifier Submodule identifier... -
Page 8: Function
Product description 2 Product description 2.1 Function The electrically insulated Profinet interface is set up with a 2-port switch and supports 100-Mbit/s full- duplex communication. The gauge has 2 connections for connecting to a Profinet system. The "RS-485" provides a voltage supply. Serial interface "RS-485"... -
Page 9: Structure Of The Xpt Gauge
Product description 2.1.2 Structure of the xPT gauge RS485 PN P2 PN P1 L/A PN P2 Status L/A PN P1 RS485 ERROR Fig. 2: Structure of the xPT gauge 1 Profinet port 2 Profinet port 1 2 LED Profinet status on port 2 RS-485 address selector switch 3 LED Profinet status on port 1 Status LED for the gauge... -
Page 10: Installation
Installation 3 Installation DANGER Danger to life due to dangerous contact voltage Voltages above 30 V (AC) or 60 V (DC) are considered dangerous in accordance with IEC 61010. If you come into contact with dangerous contact voltage, this can result in injury through electric shocks or even death. -
Page 11: Configuring Profinet Connection For Cct Gauges
Installation 3.2 Configuring Profinet connection for CCT gauges Profinet configuration tools There are various suppliers of configuration tools for Profinet configuration. The configura- tion procedure is identical. The figures show the Siemens TIA portal by way of an example. Fig. 5: Importing GSDML file 11/32... -
Page 12: Fig. 6: Dragging And Dropping Cct Gauge Into Network Area
Installation Fig. 6: Dragging and dropping CCT gauge into network area 12/32... -
Page 13: Fig. 7: Integration And Preparation
Installation Fig. 7: Integration and preparation 13/32... -
Page 14: Fig. 8: Integrating Input And Output Modules
Installation Fig. 8: Integrating input and output modules 14/32... -
Page 15: Configuring Profinet Connection For Xpt Gauges
2. Open the configuration tool. 3. Import the unzipped files (GSDML file and image) into the process control. – You will find the CCT gauge in the path PROFINET IO/Sensors/Pfeiffer Vacuum GmbH/CCT 3xx PN. 4. Drag and drop CCT 3xx PN into the configuration tool's network area and integrate CCT 3xx PN there. -
Page 16: Fig. 10: Importing Gsdml File
Installation Fig. 10: Importing GSDML file Fig. 11: Dragging and dropping the xPT gauge into the network area 16/32... -
Page 17: Fig. 12: Integration And Preparation
Installation Fig. 12: Integration and preparation 17/32... -
Page 18: Fig. 13: Integrating Input And Output Modules
Installation Fig. 13: Integrating input and output modules 18/32... -
Page 19: Fig. 14: View After Correct Configuration
– You will find the xPT gauge in the path PROFINET IO/Sensors/Pfeiffer Vacuum GmbH/Digi- Line. 4. Drag and drop xPT 200 PN into the configuration tool's network area and integrate xPT 200 PN there. – All of the input and output modules are automatically allocated. -
Page 20: Operation
Operation 4 Operation NOTICE Data transmission error due to simultaneous operation on both interfaces If you attempt to operate the gauge simultaneously via the RS-485 and Profinet interfaces, this will result in incorrect data and interference with the data transmission. ► Operate the gauge via only one of the two interfaces. ►... -
Page 21: Actual Pressure (Bytes 0 - 3)
Operation Byte Data type Contents Boolean Transmitter warnings and errors Warning overrange Warning underrange Error Filament 1 defective Error Filament 2 defective Error Internal communication Error EEPROM failure Error Sensor defective/stacked out Boolean Syntax error Sensor switch mode value mismatch GCF 1, value mismatch GCF 2, value mismatch Pressure adjust, value mismatch... -
Page 22: Transmitter Warnings And Errors (Byte 9)
Operation Function Description Default Gauge Degas active 0 = off HPT 200 PN 1 = Activated HV sensor inactive 0 = controlled by Pirani sensor MPT 200 PN 1 = always off HPT 200 PN Filament HPT 200 PN 0 = filament 1 1 = filament 2 Sensor switch mode 0 = direct sensor changeover at 1 hPa... -
Page 23: Command Executed (Byte 11)
Operation Function Description Gauge Command supported 0 = received command is not supported (error) All gauges 1 = received command is supported (no error) Command invalid 0 = No error All gauges 1 = received command not permissible or not executa- ble (error) Tbl. -
Page 24: Setdata Gcf 1 (Bytes 5 - 6)
Operation Command Gauge Name 0x50 Activate Hot Cathode 0x51 Deactivate Hot Cathode 0x55 Activate Degas 0x56 Deactivate Degas 0x57 Set Sensor Switch Mode Tbl. 9: Commands and their use Zero Command A new setting sequence always starts with the "Zero Command". Executing "Zero Command"... -
Page 25: Profinet Operating Mode Display Via Led
Operation 4.3 Profinet operating mode display via LED Status Display Meaning xPT gauge CCT gauge L/A PN P1 Supply voltage off L/A PN P2 No connection to Profinet Lights up Connection to Profinet, no data exchange green Green fast Data exchange flash Supply voltage off Bus not started... -
Page 26: Malfunctions
Malfunctioning of the equipment as a direct result of contamination or wear, as well as wear parts, is not covered by the warranty. Rectifying malfunctions (reset) In the event of a malfunction, Pfeiffer Vacuum recommends disconnecting the supply volt- age, and then reconnecting after 5 seconds. 5.1 Malfunction diagnosis for CCT gauge If a serious error of type "ExtChannelErrorType"... -
Page 27: Tbl. 14: Manufacturer-Specific Diagnosis For Xpt Gauges
1. Switch the gauge off, wait 5 seconds and then switch it back on (reset). 2. Replace the gauge if the error persists. RS transmit buffer over- ● Notify Pfeiffer Vacuum Service if this warning repeatedly oc- flow curs. RS receive buffer over- ●... -
Page 28: Technical Data
Technical data 6 Technical data Parameter CCT 36x PN CCT 37x PN Interfaces RS-485, Profinet "Profinet" interface, device side 2× Binder M12 bushing, 4-pin, D-coded Supply: Power consumption max. 15 W Tbl. 16: Technical data for Profinet interface with CCT gauges Parameter CPT 200 PN PPT 200 PN... -
Page 29: Declaration Of Conformity
Harmonized standards and applied national standards and specifications: DIN EN 61000-6-2:2005 DIN EN 61000-6-3:2007 + A1:2011 DIN EN 61010-1:2010 DIN EN 61326-1:2013, group 1, class B Signature: Pfeiffer Vacuum GmbH Berliner Straße 43 35614 Asslar Germany (Daniel Sälzer) Asslar, 2021-03-31... -
Page 30: Declaration Of Conformity
Restriction of the use of certain hazardous substances, delegated directive 2015/863/EU Harmonized standards and applied national standards and specifications: DIN EN 61326-1:2013-07 DIN EN 50581:2013 Signature: Pfeiffer Vacuum GmbH Berliner Straße 43 35614 Asslar Germany (Daniel Sälzer) Asslar, 2021-03-31 Managing Director... - Page 31 31/32...
