Total solder points: 108
Difficulty level: beginner 1  2  3  4  5  advanced

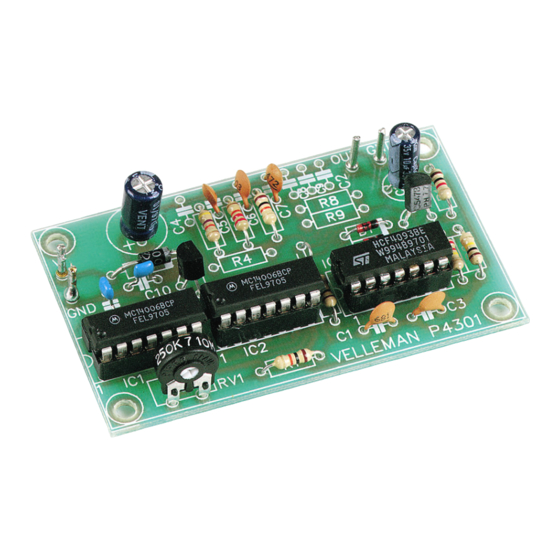

PINK NOISE GENERATOR
ILLUSTRATED ASSEMBLY MANUAL
H4301IP'1_rev2.pub
page 1
K4301
H4301IP-1
Thursday, July 12, 2012 10:18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K4301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Velleman K4301

Summary of Contents for Velleman K4301

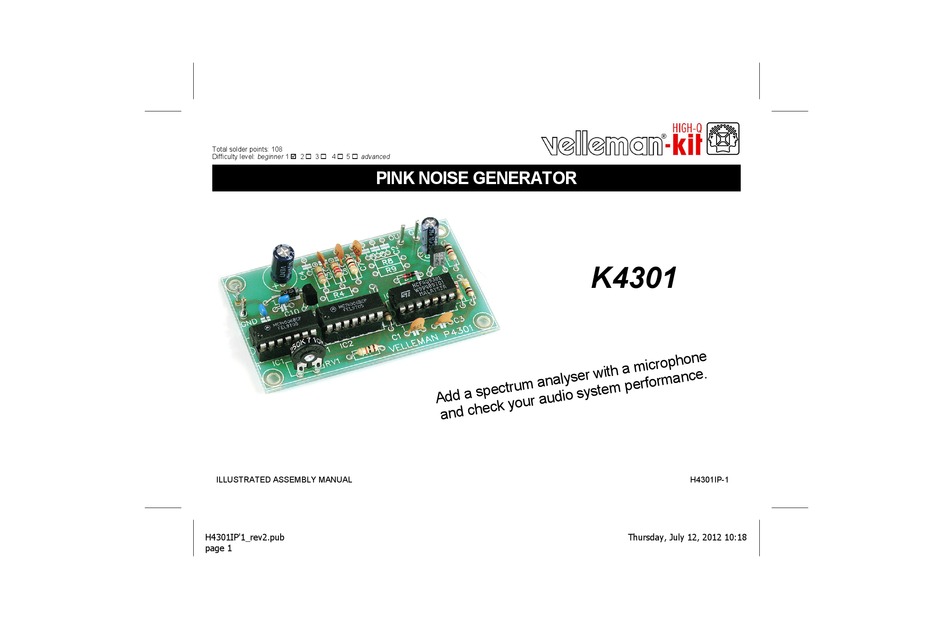

  • Page 1 Total solder points: 108 Difficulty level: beginner 1  2  3  4  5  advanced PINK NOISE GENERATOR K4301 ILLUSTRATED ASSEMBLY MANUAL H4301IP-1 H4301IP'1_rev2.pub Thursday, July 12, 2012 10:18 page 1...
  • Page 2 VELLEMAN NV Legen Heirweg 33 9890 Gavere Belgium Europe www.velleman.be www.velleman-kit.com H4301IP'1_rev2.pub Thursday, July 12, 2012 10:18 page 2...

  • Page 3: Specifications

    Features & Specifications To analyse the acoustic properties of a room (usually a living- room), a good pink noise generator together with a spectrum analyser is indispensable. Moreover you need a microphone with as linear a frequency characteristic as possible (from 20 to 20000Hz.). If, in addition, you dispose of an equaliser, then you can not only check but also correct reproduction.

  • Page 4: Assembly Hints

    Assembly hints 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools:  A good quality soldering iron (25-40W) with a small tip. ...
  • Page 5 REMOVE THEM FROM THE TAPE ONE AT A TIME ! DO NOT BLINDLY FOLLOW THE ORDER OF THE COMPONENTS ONTO THE TAPE. ALWAYS CHECK THEIR VALUE ON THE PARTS LIST! H4301IP'1_rev2.pub Thursday, July 12, 2012 10:18 page 5...
  • Page 6 Construction 1. Jumper wire 3. Resistors 5. PCB tabs  V : 1X R...  GND : 2X  OUT : 1X  R1 : 10K (1-0-3-B)  R2 : 100K (1-0-4-B)  J  R3 : 100K (1-0-4-B)  R5 : 47K (4-7-3-B) 6.

  • Page 7: Voltage Regulator

    Construction 7. Transistor 10. Capacitors. Watch the polarity !  T1 : BC547B  C12 : 10µF  C13 : 100µF C... 8. Voltage regulator Mind the orientation ! VR...  VR1 : UA78L08 11. ICs. (check the position of notch) 9.

  • Page 8: Test And Adjustment

    Test & adjustment 12. TEST & ADJUSTMENT SPECTRUM ANALYSER OUT GND 9-12VAC 12-15VDC FIG 1.0 VELLEMAN P4301 H4301IP'1_rev2.pub Thursday, July 12, 2012 10:18 page 8...
  • Page 9 Test & adjustment 1. Turn trimmer RV1 to its centre position. 2. Connect a power supply :  AC, 9 to 12 V then between points GND and V.  DC, 12 to 15 V (battery or power supply) then - to GND and + to V. 3.

  • Page 10: Schematic Diagram

    Schematic diagram 13. Schematic diagram. H4301IP'1_rev2.pub Thursday, July 12, 2012 10:18 page 10...
  • Page 11 14. PCB H4301IP'1_rev2.pub Thursday, July 12, 2012 10:18 page 11...
  • Page 12 Includes programmer and test board. Modifications and typographical errors reserved - © Velleman nv. H4301IP - 2012 - ED1 (rev2) 5 4 1 0 3 2 9 3 1 5 6 2 7 H4301IP'1_rev2.pub...
