1
CROSS BAR 1
CROSS BAR 2
CROSS BAR 3
2
LONG CROSS BAR 1
LONG CROSS BAR 2
LNHFET
CROSS
BAR 1
CROSS
BAR 3
LEFT
FRAME
RIGHT
FRAME
CROSS BAR 2
LONG CROSS
BAR 2

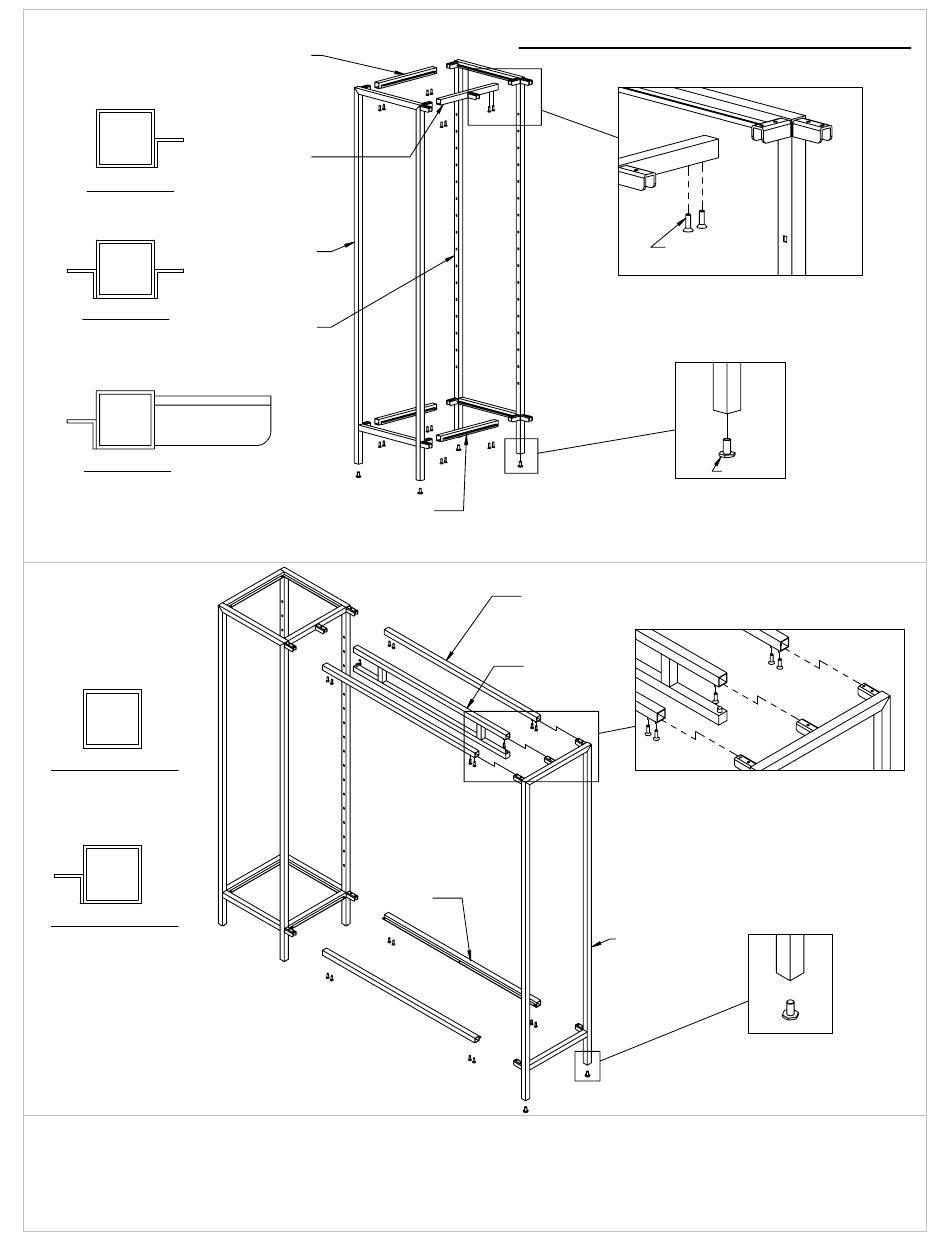

LNHFET ASSEMBLY INSTRUCTIONS
COUNTERSUNK
SCREWS
SECURE THE CROSS BARS AS SHOWN
TO THE LEFT AND RIGHT FRAMES
WITH THE COUNTERSUNK SCREWS.
IF THE LEVELERS ARE NOT
ALREADY INSTALLED, INSTALL
THEM ONTO THE SIDE FRAMES.
LONG CROSS
BAR 1
HANGBAR
SECURE THE LONG CROSS BARS
AND HANGBAR AS SHOWN TO THE
SIDE FRAME WITH THE
COUNTERSUNK SCREWS.
SIDE
FRAME
IF THE LEVELERS ARE NOT
ALREADY INSTALLED, INSTALL
THEM ONTO THE SIDE FRAME.
LEVELER
SHEET 1 OF 2
